Products description

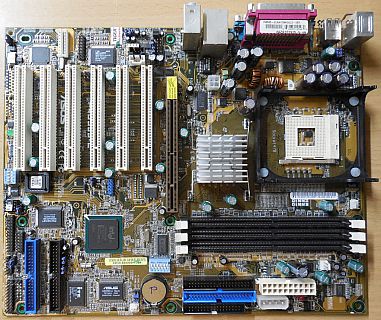

ASUS P4B533-E Rev 1.02 Mainboard + Blende Intel Sockel 478 LAN Audio IDE RAID
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4
On-die 512KB / 256KB L2 cache
Chipset
Intel 82845E MCH + Intel 82801 DB ICH4
Front Side Bus (FSB)
533/400 MHz
Memory
3 x 184-pin DDR DIMM sockets for up to 2GB memory
Supports PC2100/PC1600 unbuffered ECC/non-ECC DDR DIMMs
Expansion slots
1 x AGP Pro (1.5V only)
6 x PCI
IDE
2 x UltraDMA 100/66/33
2 x ATA133 for RAID 0/1
Audio
C-Media 8738-MX 6-channel PCI audio controller
LAN
Intel 82562ET PHY
NEC 1394 controller
2 x 1394 ports via internal connector
Special features
ASUS JumperFree™ mode; ASUS POST Reporter™; ASUS EZ Plug™; ASUS MyLogo2; ASUS Q-Fan; ASUS EZ Flash; Power Loss Restart; STR (Suspend-to-RAM); SFS (Stepless Frequency Selection); Adjustable CPU VCORE, and memory and AGP voltages; Multi-language BIOS; AGP warning LED
Rear panel I/O
1 x Parallel port
2 x Serial ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0/USB 1.1 ports
1 x LAN RJ-45 port
Line In/Line Out/Microphone ports
Internal I/O
1 x USB 2.0/1.1 connector for 2 additional USB ports
2 x 1394 connectors
1 x 3-Pin CPU fan connector
1 x 3-Pin Power fan connector
1 x 3-Pin Chassis fan connector
1 x 20-pin ATX Power connector
1 x 4-pin CPU Power connector
1 x 4-pin EZ_Plug connector
4 x IDE connectors
1 x FDD Floppy connector
1 x IDE LED connector
1 x Chassis intrusion connector
1 x SMBus connector
1 x SIR connector
1 x Smartcon connector
1 x AFPanel connector
1 x S/PDIF In/Out connector
1 x ASUS iPanel connector
1 x Gameport/Midi connector
1 x CD / 1 x AUX / 1 x Modem audio connectors
1 x Front System Panel connector
1 x Front Audio Panel connector
1 x DSW1 Switch
1 x DSW2 Switch
1 x Over_Volt Jumper
1 x KBPWR Jumper
1 x USBPWR_12 Jumper
1 x USBPWR_34 Jumper
1 x USBPWR_56 Jumper
1 x PCISMB_SW1 Jumper
1 x PCISMB_SW2 Jumper
1 x RAID_SW Jumper
1 x JEN Jumper
1 x 1394_SW Jumper
1 x BCS1 Jumper
1 x BCS2 Jumper
BIOS features
4Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, ASUS MyLogo2
Industry standard
PCI 2.2, USB 2.0, USB 1.1
Manageability
DMI 2.0, WOL/WOR by PME, chassis intrusion, SMBus
Form Factor
ATX form factor; 12 in x 9.6 in (30.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
