Products description

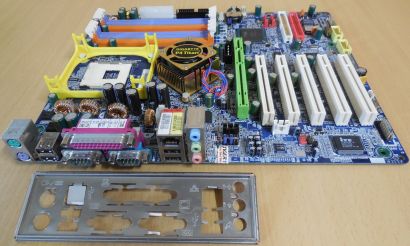

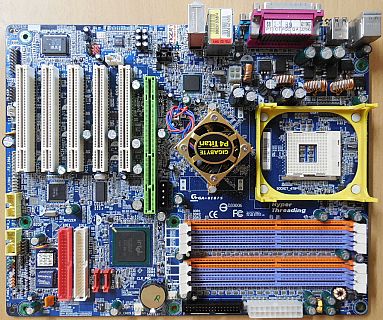

Gigabyte P4 Titan GA-8I875 Rev 2.0 Mainboard + Blende Sockel 478 AGP 8X SATA IDE DDR GbLAN
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4 processor with HT Technology
Front Side Bus
800 / 533 / 400 MHz FSB
Chipset
Intel® 875P MCH North Bridge + Intel® ICH5R South Bridge
Memory
Dual Channel DDR 400 / 333 / 266 ECC support
Max capacity 4 GB
6 x DIMM slots (Through GIGABYTE innovation of supporting 6 DIMMS memory on Intel chipset motherboard. However, due to chipset limitations there will be a frequency downgrade of memory modules when 6 DIMMs are fully loaded.)
Expansion Slots
1 x AGP Pro slot (AGP 8X with AGP Pro interface for work-station graphics)
5 x PCI slots (PCI 2.3 compliant)
Storage
2 x SATA 1.5 Gb/s ports via ICH5R (supporting RAID 0 function)
2 x IDE interface with support for up to 4 devices
LAN
Intel® PRO/1000 CT Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82547EI Gigabit Ethernet Controller
Audio
Realtek ALC658 6-CH AC´97 2.3 Audio Codec
USB
8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
FireWire IEEE1384
2 x Internal connectros by Texas Instrument IEEE 1394 chip
Internal I/O Connectors
1 x 20-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x 4-pin Molex AGP 12V connector
1 x 3-pin CPU Fan connector
1 x 3-pin System Fan connector
1 x 3-pin Power Fan connector
1 x 2-pin Northbridge Fan connector
1 x Front Panel connector
1 x Info_Link header
1 x WOL connector
1 x IR_CIR header
1 x Game header
1 x SUR_CEN header
1 x SPDIF_IO header
1 x AUX_IN connector
1 x CD_IN connector
2 x USB connectors support additional 4 USB2.0 ports
2 x IEEE1394 FireWire connectors
2 x SATA connectors
2 x IDE connectors
1 x FDD Floppy connector
1 x Front Audio connector
1 x Clear Password Jumper
1 x Power LED connector
1 x Internal Speaker connector
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LPT Parallel port
2 x COM ports
1 x RJ45 LAN port
4 x USB2.0 ports
3 x Audio ports (Line-in / Line-out / MIC)
BIOS
2 x 4M bit flash ROM; Award BIOS
H/W Monitoring by ITE 8712F
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage and fan speed
Other Features
Xpress Install; Xpress Recovery; Smart Fan; EasyTune™ 4; @BIOS; Q-Flash™; Multi Language BIOS
Form Factor
ATX; ca. 30.5cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
