Products description

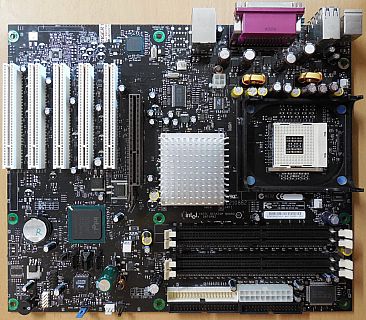

Intel D875PBZ Rev C26680-301 Mainboard + Blende Sockel 478 AGP 8X DDR Gigabit LAN USB2.0 SATA
Technische Daten
CPU
Support for an Intel® Pentium® 4 processor in an mPGA478 socket with a 533/800 MHz system bus
Chipset
Intel® 875P Chipset bestehend aus:
Intel® 82875P Memory Controller Hub (MCH)
Intel® 82801ER I/O Controller Hub (ICH5-R)
Intel® 82802AC (8 Mbit) Firmware Hub (FWH)
Memory
4 x 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR400 and DDR333 SDRAM DIMMs up to 4 GB of system memory
Expansion Capabilities
5 x PCI bus add-in card connectors
1 x Universal 0.8/1.5 V AGP 3.0 connector with integrated retention mechanism (supporting 1x, 4x, and 8x AGP cards)
Storage
2 x SATA 1.5 Gb/s ports via ICH5R
2 x IDE interface with UDMA 33 ATA-66/100 support for up to 4 devices
LAN
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82547EI Gigabit Ethernet Controller
USB
8 x USB 2.0 ports (2 ports at mid-board, 6 ports at back panel)
LPC Bus I/O controller
1 x diskette drive interface (supporting 1.2 MB, 1.44 MB and 2.88 MB)
1 x serial port header
1 x parallel port (ECP/EPP)
PS/2 keyboard and mouse ports
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Parallel
1 x Seriell
1 x RJ45 port
6 x USB 2.0/1.1
Internal I/O Connectors
1 x 20-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x 3-pin CPU Fan connector
1 x 3-pin Front Fan connector
1 x 3-pin REAR Fan connector
1 x 3-pin Voltage regulator Fan connector
1 x Front Panel connector
1 x SCSI Hard Drive Activity LED connector
2 x USB connectors support additional 2 USB ports
2 x SATA connectors
2 x IDE connectors
1 x FDD Floppy connector
1 x Chassis Intrusion connector
1 x Bios setup configuration Jumper
1 x Auxiliary front panel power LED connector
1 x Buzzer
BIOS
Intel/AMI BIOS (resident in the Intel 82802AC FWH)
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS
Instantly Available PC Technology
Support for PCI Local Bus Specification Revision 2.2
Suspend to RAM support
Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Hardware Monitor Subsystem
Hardware management ASIC
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Four fan connectors
Four fan sense inputs used to monitor fan activity
Fan speed control
Form Factor
ATX; 11.52 inches by 9.6 inches (292.61 mm x 243.84 mm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
