Products description

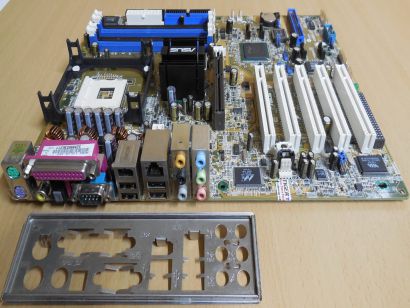

ASUS P4P800-E Deluxe Rev 1.02 Mainboard + Blende Sockel 478 AGP 8X DDR SATA IDE-RAID
Technische Daten
CPU
Socket 478 for Intel® Pentium® 4 / Celeron processors with speeds up to 3.2 GHz+
Supports Intel® Hyper-threading Technology
Supports Intel® Prescott CPU
Chipset
Intel® 865PE + Intel® ICH5R
Front Side Bus (FSB)
800/533/400 MHz
Memory
Dual-channel memory architecture
4 x 184-pin DDR DIMM sockets for up to 4GB unbuffered non-ECC DDR400/333/266 SDRAM memory
ASUS Hyper-Path Technology
Expansion slots
1 x AGP 8X (0.8V, 1.5V only)
5 x PCI
1 x ASUS WiFi slot for optional wireless LAN upgrade (nicht im Lieferumfang)
Storage
ICH5R SouthBridge supports
2 x UltraDMA 100/66/33
2 x Serial ATA with RAID 0, RAID 1 function
Promise® 20378 RAID controller supports
1 x UltraDMA 133 support for two drives
2 x Serial ATA
RAID 0, RAID 1, RAID 0+1 and Multi-RAID function
max. 10 Laufwerke möglich!
AI Audio
Realtek® ALC850 8-channel CODEC
Audio Sensing and Enumeration Technology
S/PDIF out interface support
AI Net
Marvell® 88E8001 Gigabit Ethernet controller
Virtual Cable Tester (VCT) Technology support
AI BIOS
ASUS CrashFree BIOS2
ASUS Q-Fan Technology
ASUS Post Reporter™
AI Overclocking
Intelligent CPU frequency tuner
ASUS JumperFree
CPU, Memory and AGP voltage adjustable
SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment
Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies
ASUS C.P.R. (CPU Parameter Recall)
Special features
Power Loss Restart
S/PDIF out interface support
IEEE 1394
VIA VT6307 IEEE1394 controller supports two IEEE 1394 connectors
USB
Maximum of 8 USB 2.0 ports
Rear panel I/O
1 x Parallel port
1 x Serial port
1 x Optical S/PDIF output port
1 x Coaxial S/PDIF output port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x RJ45 port
4 x USB 2.0/1.1 ports
1 x IEEE 1394 port
8-channel audio I/O ports
Internal I/O
2 x USB 2.0 supports additional 4 USB 2.0 ports
CPU/Chassis/Power fan connectors
20-pin/4-pin ATX 12V power connectors
Chassis intrusion
IEEE 1394 connector
GAME/MIDI connector
CD/AUX/Modem audio connectors
Front panel audio connector
Serial port 2 connector
BIOS features
4Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS Instant Music, ASUS MyLogo2, ASUS C.P.R., ASUS Multi-Language BIOS
Industry standard
PCI 2.2, PCI 2.3, USB 2.0
Manageability
WfM2.0, DMI 2.0, WOL, WOR, chassis intrusion
Form Factor
ATX form factor; 12 in x 9.6 in (30.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
