Biostar U8668-D Ver 5.6 Mainboard +Blende Sockel 478 AGP PCI VGA Audio LAN* m224

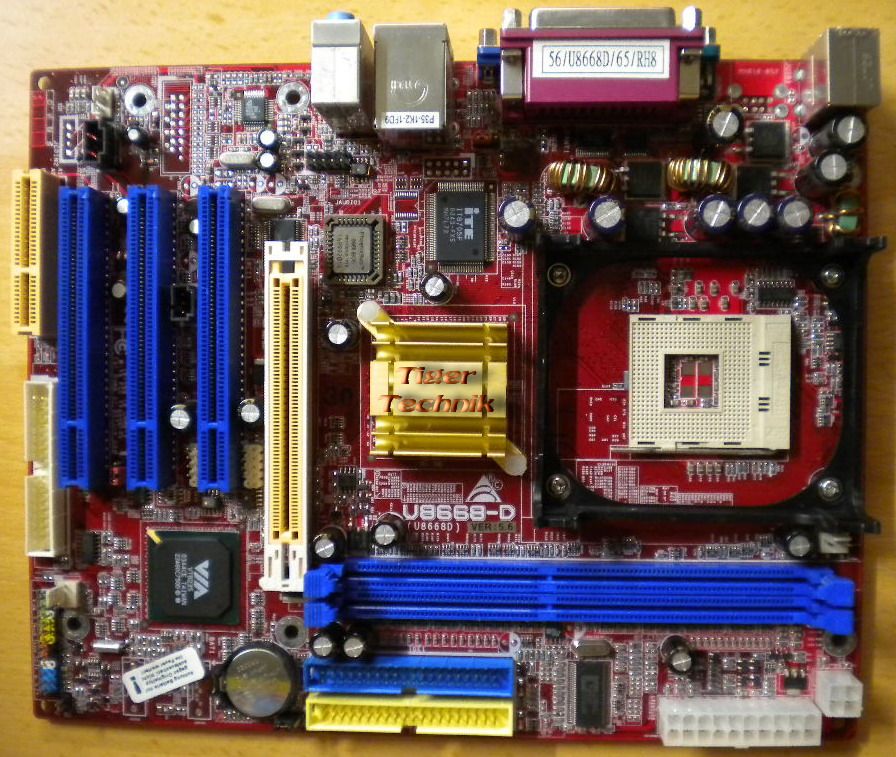

Biostar U8668-D Ver 5.6 Mainboard + Blende

Sockel 478 AGP PCI VGA Audio LAN

Technische Daten

Processor

Intel Pentium 4 / Celeron processor

Support Intel Hyper-Threading Technology

533MHz / 400MHz system interface speed

Chipset

VIA P4M266A / VT8235

Memory

2 x 184-pin DDR SDRAM DIMM

PC2100 DDR SDRAM

Maximum 2GB

Slots

1 x AGP

3 x PCI

1 x CNR

IDE

4 x EIDE devices

Support Ultra DMA 66/100/133 Bus Master Mode

I/O

1 x PS/2 mouse, 1 x PS/2 keyboard

2 x Rear USB 2.0 and 4 x front USB 2.0

1 x VGA

1 x RJ45 port

1 x Parallel ,1 x Serial

1 x Lin-out/Lin-in/Mic

1 x IrDA header

1 x Front audio header

1 x CD In header

1 x S/PDIF Out header

1 x Floppy

1 x Chassis intrusion header

1 x WOL header

Video:

S3 ProSavage 8 up to 32MB shared video memory

Audio

C-Media CMI9739A 6-channel audio CODEC (PCB 5.0)

LAN

VIA VT6103

Hardware Monitor

CPU/System Fan Speed

CPU Temperatu

System Voltage

Vcore,+3.3V,+5V,+12V

Size

Micro ATX form factor

22.5cm x 19.0cm ( W x L )

Lieferumfang

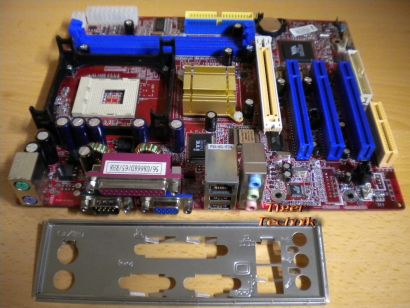

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
