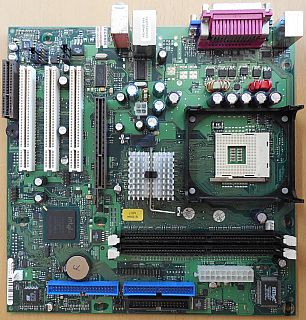

Fujitsu Siemens FSC D1520-A13 GS 1 Mainboard +Blende Intel Sockel 478 VGA* m512

Fujitsu Siemens FSC D1520-A13 GS 1 Mainboard + Blende Intel Sockel 478 VGA

Technische Daten

Hersteller       FSC (Fujitsu Siemens Computers)

Model       D1520-A13 GS 1

CPU-Unterstützung       Intel® Pentium® 4 with 400/533MHz FSB (siehe bitte CPU Support Liste auf der Fujitsu Siemens Webseite)

Sockel       Intel 478

Chipset       Intel i845GE

RAM       2 x 184-pin DDR1 DIMM Sockets (2.5V), DDR1 266MHz (PC-2100) / 333MHz (PC-2700); non-ECC unbuffered; max. 2 GB Hauptspeicher

Video       Intel Extreme Graphics

LAN       Intel® 82562ET 10/100 Mb/s Fast Ethernet Netzwerkverbindung

Sound       AD1980 AC ’97 SoundMAX® 6-ch Audio Codec

Erweiterungssteckplätze       3x PCI (32-bit; 33MHz; 5V & 3.3V); 1x CNR; 1x AGP (2x/4x; 32-bit; 66MHz; 1.5V)

Intern       Echtzeituhr/Kalender mit Batteriepufferung

2 x IDE (Ultra DMA/100) Connectors

1 x Floppy Drive Connector (up to 2.88MB)

1 x 3-pin CPU FAN1 Connector

1 x 3-pin FAN2 Connector

1 x S/PDIF Connector

1 x CD_In Connector

1 x Switch Connector

2 x USB connectors (C/D + E/F)

1 x Front Panel Connector

1 x Power LED II Connector

1 x Speaker

1 x Front Audio Connector

1 x 20-pin ATX Power Connector

1 x 4-pin ATX 12V Connector

Externe Anschlüsse       1 x VGA Sub-D; 1 x PS/2 Keyboard; 1 x PS/2 Mouse; 1 x Parallel (EPP/ECP), 1 x Seriell, 1 x LAN RJ-45, 2 x USB2.0, 1 x Line-In, 1 x Line-Out, 1 x MIC

Formfaktor       microATX; ca. 24.4cm x 24.4cm

Special Features

HDD Silent Mode           Noise reduction for hard disk drives

Recovery BIOS              Restores a corrupted BIOS

HDD Password              Access protection for disk drives

IA-PC                             Instantly Available PC ensures fast availability of the PC from an energy-saving mode

Logo Boot

Lieferumfang

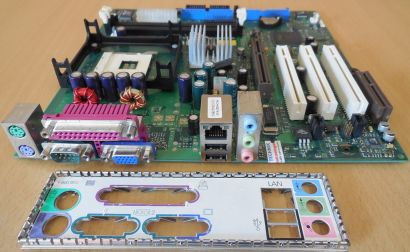

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
