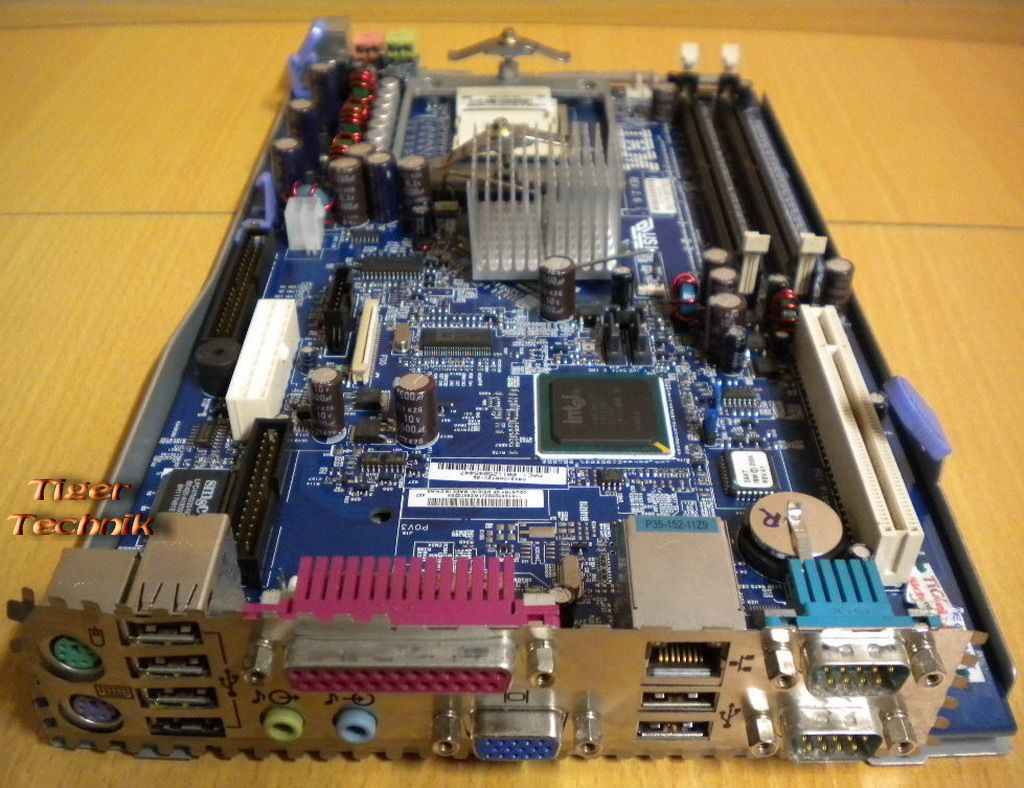

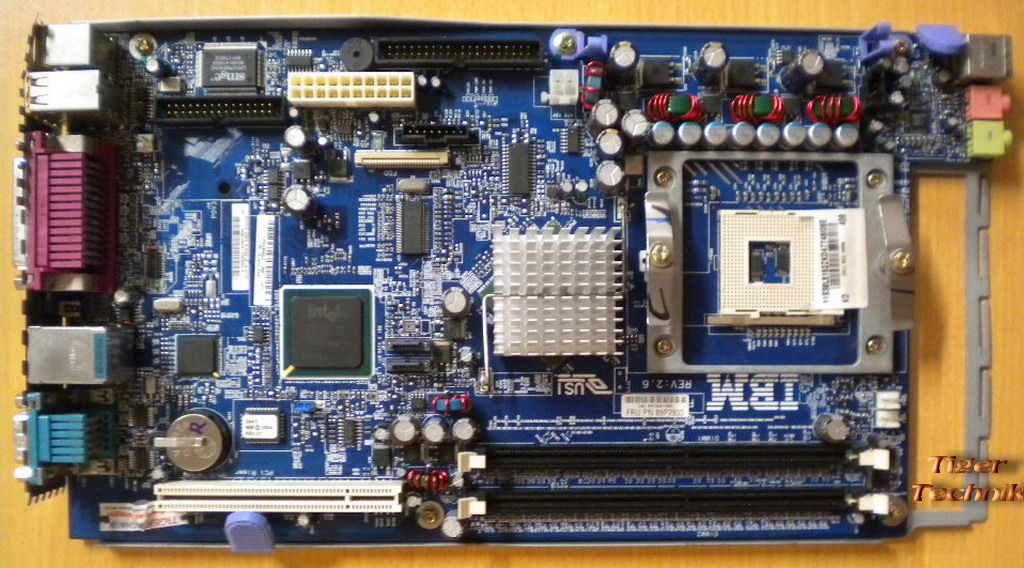

System board / Form factor
Small Desktop (2x3) with Intel 865G chipset
Supports system bus speeds of 400MHz, 533MHz and 800MHz
Sockel 478
Processor
Intel® Processor/Level 2 Cache
Intel® Pentium® 4 Processor with HT Technology (800MHz FSB) Up to 3.0GHz/1MB
Intel® Pentium® 4 Processor with HT Technology (800MHz FSB) Up to 3.2GHz/512KB
Intel® Pentium® 4 Processor with HT Technology (533MHz FSB) Up to 3.06GHz/512KB
Intel® Celeron® Processor (400MHz FSB) Up to 2.8 GHz/128KB
Chipsets
Intel® 865G
VGA
Intel® Extreme Graphics 2 controller
Memory
333MHz DDR (Double Data Rate) - PC2700
Two DDR SDRAM DIMM sockets
Supports a maximum memory up to 2GB
IDE controller
2x Serial ATA150 connectors
1x Parallel ATA100 connector
Audio
SoundMAX Credenza (ADI 1981B); internal speaker; line in, line out; front microphone and headphone ports
Networking
Intel® PRO/100 Network Connection with Wake on Lan®
External ports
8x USB2.0 ( 2x Geräte-Vorderseite, 6x Geräte-Hinterseite)
1x Ethernet RJ-45
2x Serial 9-pin 16550 compatible
1x Parallel 25-pin parallel (EPP, ECP), IEEE 1284
1x VGA (Sub-D) Port
1x PS/2 Keyboard + 1 PS/2 Mouse ports
Audio line in, headphone out, and microphone in jacks
Slots
1x PCI slot
