ASRock 4Core1600-GLAN M Rev1.02 Mainboard +Blende Intel G31 Sockel 775 DDR2*m899

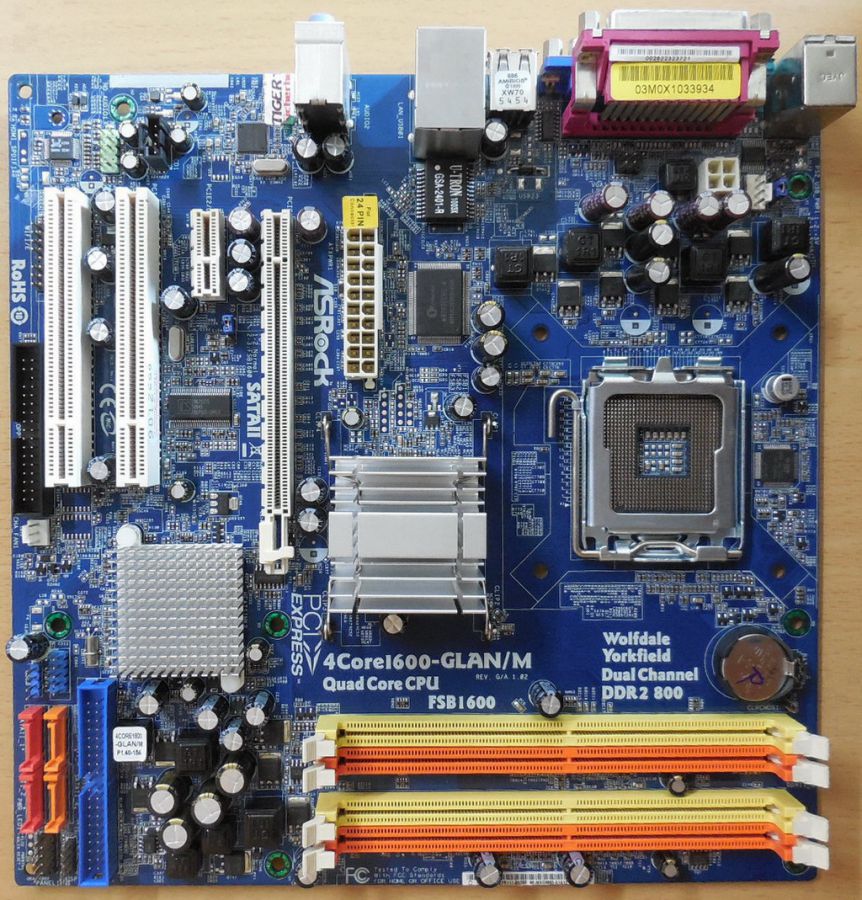

ASRock 4Core1600-GLAN/M Rev 1.02 Mainboard + Blende Intel G31 Sockel 775 DDR2

Technische Daten

CPU

LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

Compatible with all FSB 1600*/1333/1066/800 MHz CPUs

Supports Hyper-Threading Technology, Untied Overclocking Technology, EM64T CPU

*In overclocking mode.

Chipset

Northbridge: Intel® G31 + Southbridge: Intel® ICH7

Memory

4 x DDR2 DIMM slots*

Supports DDR2 800/667 non-ECC, un-buffered memory; Dual Channel DDR2 memory technology

Max. capacity of system memory: 4GB**

*Before you install memory module on this motherboard, please read below message to avoid any improper installation:

» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.

» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.

For the detailed installation information, please refer to the user manual or quick installation guide.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

4Mb AMI Legal BIOS

Supports "Plug and Play"

ACPI 1.1 Compliance Wake Up Events

Supports Jumperfree

SMBIOS 2.3.1 Support

Graphics

Intel® Graphics Media Accelerator 3100

Pixel Shader 2.0, DirectX 9.0

Max. shared memory 384MB

Audio

5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111B/RTL8111C

Supports Wake-On-LAN, PXE

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Connector

4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)

1 x ATA100 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x DeskExpress Hot Plug Detection header

CPU/Chassis FAN connector

24 pin ATX power connector

4 pin 12V power connector

CD in header

Front panel audio connector

2 x USB 2.0 headers (support 3 USB 2.0 ports)

1 x WiFi/E header

Rear Panel I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x Serial Port: COM1

1 x VGA Port

1 x Parallel Port (ECP/EPP support)

4 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

Instant Boot

Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

Hardware Monitor

CPU Temperature Sensing; Chassis Temperature Sensing; CPU Fan Tachometer; Chassis Fan Tachometer; CPU Quiet Fan; Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant

Certifications

FCC, CE

Lieferumfang

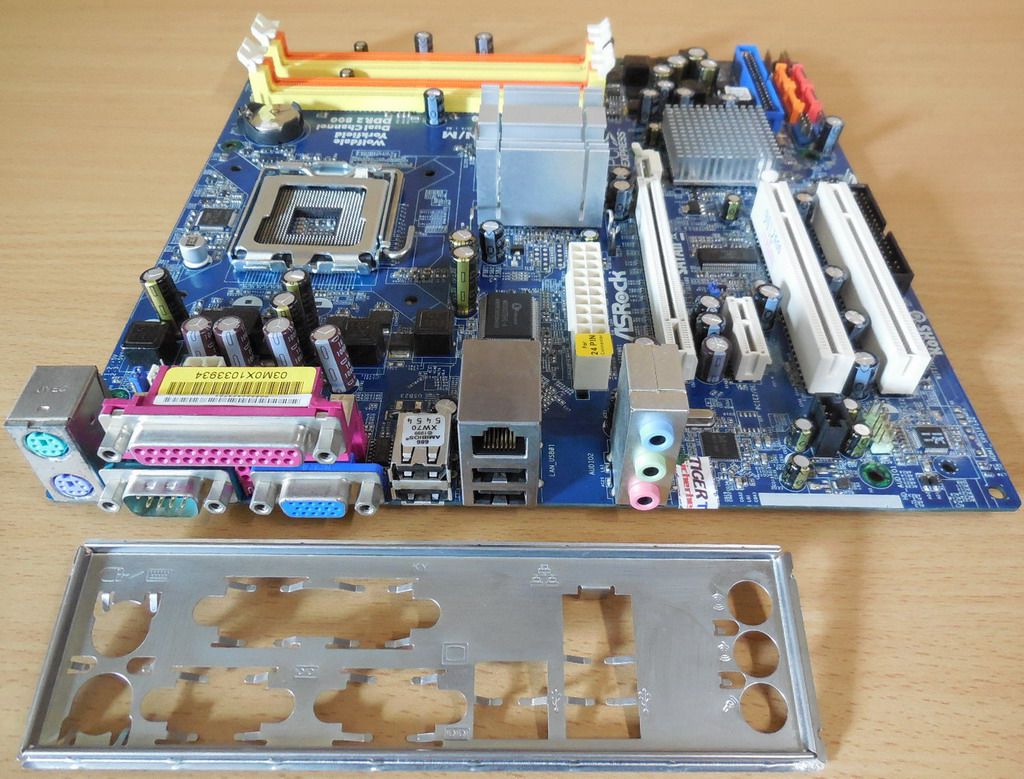

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
