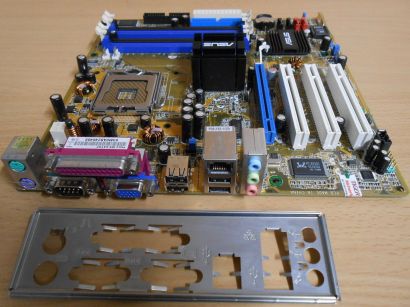

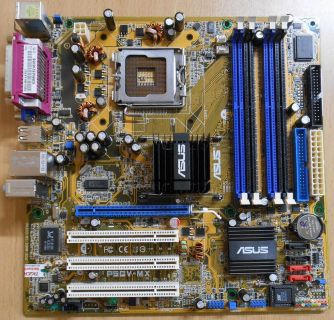

Asus P5GV-MX Rev 1.04 Mainboard + Blende

Sockel 775 FSB800 DDR SATA PCIe VGA

Technische Daten

CPU

Socket 775 for Intel Pentium 4 / Celeron

Intel® EM64T / EIST / Hyper-Threading Technology

Chipset

Intel® 915GV

Intel® ICH6

Front Side Bus

800/533 MHz

Memory

4 x DIMM, max. 4GB, DDR400/ 333, non-ECC, un-buffered memory

Dual Channel Architecture

Expansion Slots

1 x PCI-E x16 (max. 2GB/s, x4 mode)

3 x PCI

(Note: Make sure to use only qualified graphics cards. Refer to page 1-22 for qualified PCI Express graphics cards list.

VGA

Intel Graphics Media Accelerator 900

Storage/RAID

1 x UltraDMA 100/66/33

4 x Serial ATA

Audio

ADI AD1986A SoundMAX 6-channel CODEC

Jack Sensing and Enumeration

S/PDIF out interface

LAN

Realtek RTL8100C PCI 10/100M LAN Controller

USB

8 USB2.0 ports

Other ASUS Special Features

ASUS MyLogo

ASUS Q-Fan

ASUS EZ Flash

ASUS CrashFree BIOS 2

Back Panel I/O Ports

1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA

1 x Audio I/O

1 x RJ45

4 x USB

Internal I/O Connectors

2 x USB connector supports additional 4 USB ports

24-pin ATX Power connector

4-pin ATX 12V Power connector

CD audio in

CPU / Chassis FAN connectors

Front panel audio connector

S/PDIF out connector

System panel connector

BIOS

4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3,PXE,RPL

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, SM Bus

Form Factor

mATX, 9.6"x 9.6"(24.5cm x 24.5cm)

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
