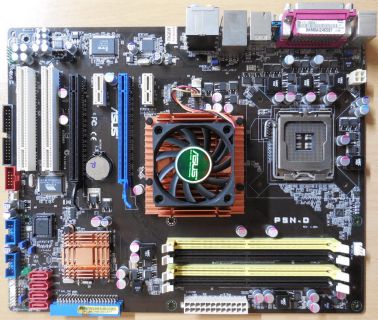

Asus P5N-D Rev 1.02G Mainboard +Blende Sockel 775 nForce 750i SLI PCIe DDR2*m878

Asus P5N-D Rev 1.02G Mainboard + Blende Sockel 775 nForce 750i SLI PCIe DDR2

Technische Daten

CPU

Intel Socket 775 Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm CPU

Chipsatz

NVIDIA nForce 750i SLI

Front Side Bus

1333/1066/800 MHz

Memory

4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC, Un-buffered Memory

Dual Channel memory architecture

*Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

Expansion Slots

2 x PCIe 2.0 x16

- Single VGA mode: x16

- SLI mode: Hardware ready for x16, x16

2 x PCIe x1

2 x PCI 2.2

SLI

Support two identical NVIDIA SLI-Ready graphics cards (Hardware ready for x16, x16)

Storage

1 x UltraDMA 133/100/66/33

4 x SATA 3 Gb/s ports NVIDIA MediaShield™ RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives

LAN

NVIDIA nForce® 750i SLI built-in Gigabit MAC with external PHY

Audio

Realtek ALC883 8 -Channel High Definition Audio CODEC

Support Jack-Sensing, Enumeration, Multi-streaming

IEEE 1394

VIA6308P controller supports 2 x 1394a ports (one at mid-board; one at back panel)

USB

8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Features

ASUS Power Saving Solution: ASUS EPU (Energy Processing Unit); ASUS AI Nap; ASUS AI Gear 3 (ASUS EPU Utility)

ASUS Quiet Thermal Solution: ASUS Fanless Design Heatsink solution; ASUS Q-Fan 2;  ASUS Optional Fan for Water-cooling or Passive-Cooling only

ASUS EZ DIY: ASUS Q-Connector; ASUS Q-Shield; ASUS O.C. Profile; ASUS AI Direct Link; ASUS CrashFree BIOS 2; ASUS EZ Flash 2

Overclocking Features

Intelligent overclocking tools: AI Overclocking (intelligent CPU frequency tuner)

Precision Tweaker 2: vDIMM: 64 -step DRAM voltage control; vCore: Adjustable CPU voltage at 0.00625V increment; vChipset 29-step Chipset voltage control

SFS (Stepless Frequency Selection): FSB tuning from 133MHz up to 750MHz at 1MHz increment; Memory tuning from 400 MHz up to 2600 MHz; PCI Express frequency tuning from 100MHz up to 130MHz at 1MHz increment

Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Special Features

Multi-language BIOS; ASUS MyLogo 2

Back Panel I/O Ports

1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x IEEE 1394a

1 x LAN(RJ45) port

4 x USB 2.0/1.1

8-Channel Audio I/O

Coaxial / Optical S/PDIF out ports

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports

1 x Floppy disk drive connector

1 x IDE connector

4 x SATA connectors

1 x IEEE 1394a connector

1 x CPU Fan connector

2 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x 4-pin ATX 12V Power connector

1 x 24-pin ATX Power connector

Front panel audio connector

Chassis Intrusion connector

CD/AUX audio in

System Panel Connector

BIOS

8 Mb Flash ROM; DMI 2.0; PnP; WfM 2.0; SM BIOS 2.4; Award BIOS; ASUS EZ Flash 2; ASUS CrashFree BIOS 2

Manageability

WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring,PXE,AI NET2 WO USB/KB/MS

Form Factor

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
