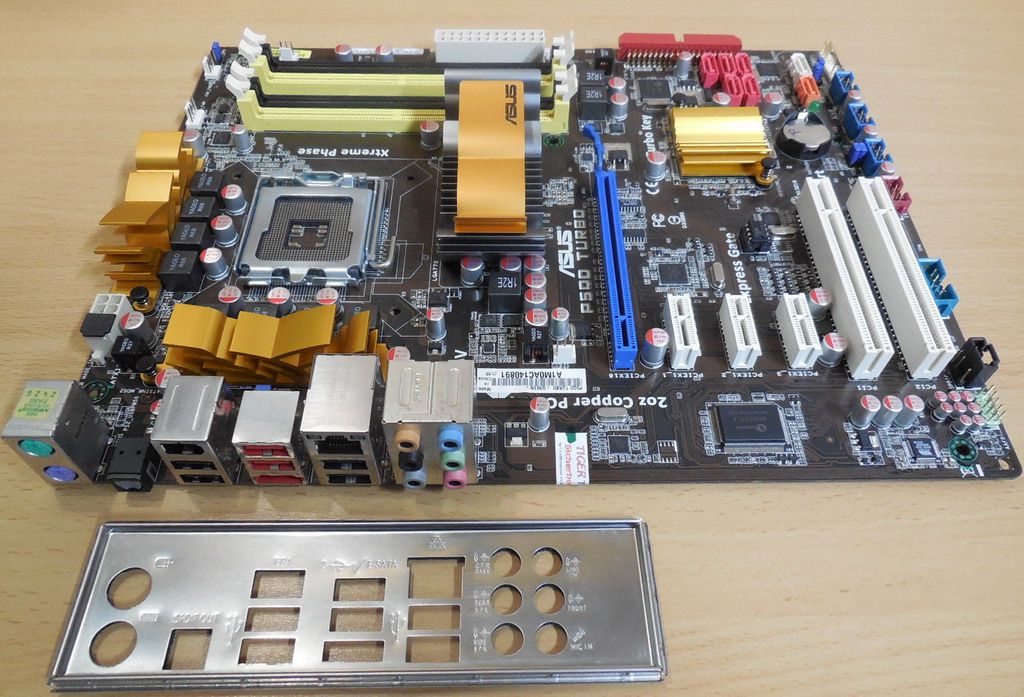

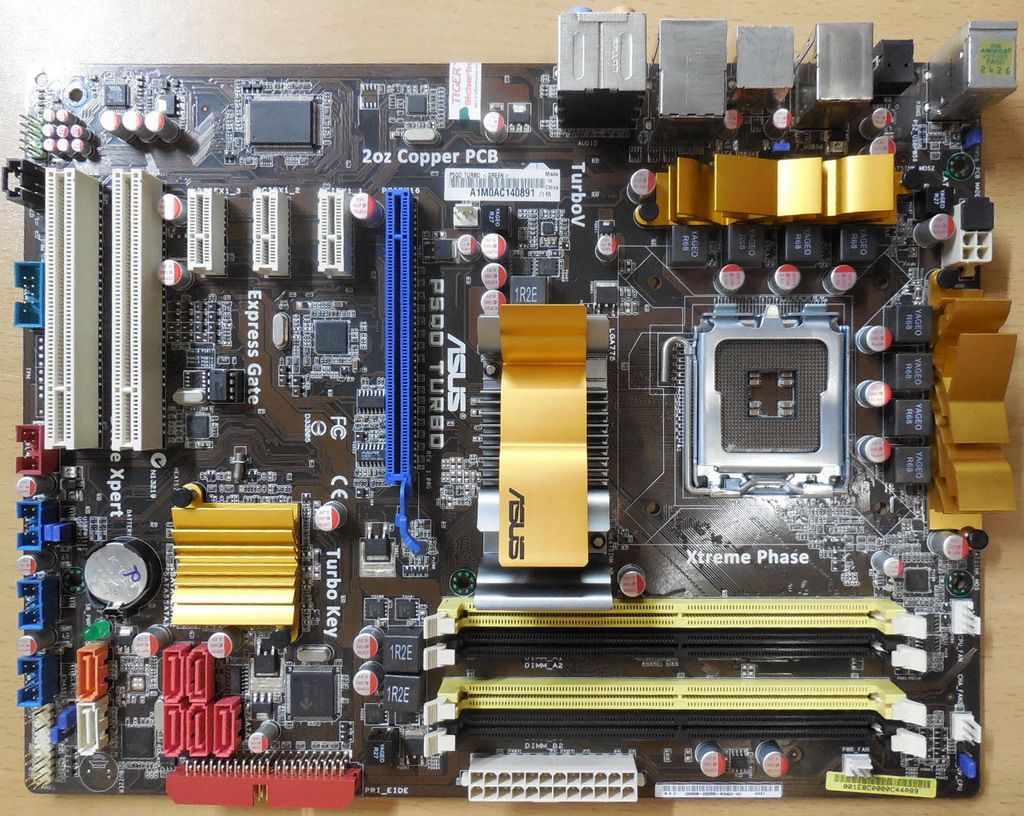

Asus P5QD Turbo Rev1.00G Mainboard +Blende So775 P45 FSB1600 DDR2 SATA PCIe*m788

Asus P5QD Turbo Rev 1.00G Mainboard + Blende Sockel 775 P45 FSB1600 DDR2 7xSATA PCIe

Technische Daten

CPU

Intel Socket 775 Core™2 Quad/Pentium® dual-core/Core™2 Extreme/Core™2 Duo/Celeron processors

Support Intel® 45nm Multi-Core CPU

Chipsatz

Intel P45 / ICH10R with Intel® Fast Memory Access (FMA) support

Front Side Bus

1600/1333/1066/800 MHz

Memory

4 x DIMM, 16 GB, DDR2 1200/1300/1066/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*Refer to the Asus Website or user manual for the Memory QVL (Qualified Vendors Lists).

*When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe 2.0 x16

3 x PCIe x1

2 x PCI

Storage

JMicron® JMB361 SATA & PATA controllers:

1 x Ultra DMA 133 / 100 / 66 for up to 2 PATA devices

1 x External SATA 3Gb/s port (SATA On-the-Go)

Silicon Image Sil5723 (Drive Xpert technology):

2 x SATA 3Gb/s ports

Supports EZ Backup and Super Speed functions

*Drive Xpert function is available only when the hard disk drives are set as data drives.

**Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only. For more information, please refer to http://support.microsoft.com/kb/946557/en-us

Southbridge

5 x SATA 3 Gb/s ports

0,1,5,10 Intel® Matrix Storage Technology Support RAID

LAN

Atheros® L1E Gigabit LAN controller featuring AI NET 2

Audio

VIA® VT1708S 8-Channel High Definition Audio CODEC

- Support Jack-Detection and Multi-Streaming

- Optical S/PDIF_OUT port at back I/O

- ASUS Noise-Filter DTS Surround Sensation Ultra PC

IEEE 1394

2 VIA® VT6315N controller supports x 1394a ports (1 port at mid-board; 1 port at back panel)

USB

12 USB 2.0 ports (6 ports at mid-board; 6 ports at back panel)

ASUS AI Lifestyle Features

ASUS Exclusive Features:

- ASUS 8-Phase Power Design

- ASUS Express Gate

ASUS Power Saving Solutions:

- ASUS EPU

ASUS Quiet Thermal Solutions:

- ASUS Fanless Design: Stylish Heatsink Solution

- ASUS Fan Xpert

ASUS EZ DIY:

- ASUS Drive Xpert

- ASUS CrashFree BIOS 3

- ASUS Q-Shield

- ASUS Q-Connector

- ASUS O.C. Profile

- ASUS EZ Flash 2

Overclocking Features

Intelligent overclocking tools

- AI Overclocking (intelligent CPU frequency tuner)

- TurboV

- Turbo Key

Precision Tweaker

- vDIMM: 25-step DRAM voltage control 64 -step DRAM voltage control

- vChipset 55-step Chipset voltage control

- vCore: Adjustable CPU voltage at 0.0125V increment 0.00625V - vCPU PLL: 64-step CPU PLL voltage control

- vFSB Termination: 35-step reference voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 800MHz 1MHz increment

- PCI Express frequency tuning from 100MHz 180MHz at 1MHz

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

Special Features

100% All High-quality Conductive Polymer Capacitors!

ASUS MyLogo 2

Back Panel I/O Ports

1 x PS/2 Keyboard port (purple)

1 x PS/2 mouse port (green)

1 x Optical S/PDIF Output port

1 x IEEE 1394a port

1 x External SATA port

1 x LAN (RJ45) port

6 x USB 2.0/1.1 ports

8-channel Audio I/O ports

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x IDE connector

1 x COM connector

5 x SATA connectors (red)

2 x Drive Xpert SATA connectors (orange and white)

1 x CPU Fan connector

2 x Chassis Fan connectors

1 x Power Fan connector

1 x IEEE1394a connector

Front panel audio connector

1 x S/PDIF Out Header

Chassis Intrusion connector

CD audio in

24-pin ATX Power connector

8-pin ATX 12V Power connector

System Panel (Q-Connector)

BIOS

8 Mb Flash ROM AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.5, ACPI 3.0, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WOR by Ring,WOL by PME,WOR by PME,Chasis Intrusion,WOR by PME

Form Factor

ATX Form Factor

12 inch x 9.2 inch 30.5 cm x 23.4 cm )

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
