Dell Optiplex 745 Mainboard 0WK833 Rev A00 Sockel 775 Intel Q965 PCIe VGA* m718

Dell Optiplex 745 Mainboard 0WK833 Rev A00

Sockel 775 Intel Q965 PCIe VGA

Technische Daten

Hersteller: Dell

Model: 0WK833 oder WK833

Geeignet für: Dell Optiplex 745 oder baugleich

Sockel: Intel 775

FSB: 533 / 800 / 1066 MHz

Prozessor:

Intel® Core™ 2 Duo 1066MHz FSB Socket T with Dual Core technology XD, EM64T, 2MB and up to 4MB L2 cache, EIST and VT (E6000 series)

Intel® Pentium® D 800MHz FSB Socket T with Dual Core technology XD, EM64T, 2x2MB L2 cache, EIST, and VT on 950/960 (900 series)

Intel® Pentium® D 800MHz FSB Socket T with Dual Core technology XD, EM64T, 2x1MB L2 cache (800 series)

Intel® Pentium®  4 800MHz FSB Socket T with HT, XD, EM64T, and 1MB L2 cache (500 series)

Intel® Celeron® D 533 MHz FSB Socket T with XD and EM64T (300 series)

Chipset: Intel® Q965 Express-Chipsatz mit ICH8

Memory: 4x DDR2-RAM-Bänke, 533 / 667 / 800 MHz, unbufferd non-ECC 1.8V; (Max 8GB); Dual-Channel unterstützt

VGA: Integrierter Intel® Graphics Media Accelerator 3000; Uses up to 256MB shared with system memory; Supports 640 x 480 up to 1920 x 1200 Maximum Resolution (refresh rates and additional resolutions are dependant on display); Core Frequency: 667MHZ; sDVO Frequency: 270MHz; 400MHz, 24-bit RAMDAC; VGA DB-15 (analog) Display Interface; Dual Monitor Support in conjunction with discrete graphics card; Display Rotation Support; Supports D3D and OGL Pixilation Rules

Steckplätze: 1x PCI (2.3), 1x PCI-Express x16 (1.0a)

Anschlüsse Intern: 1x Dell special FDD Connector; 2x SATA II 3Gb/s; 1x Internal USB Connector; 1x Intruder Connector; 1x FAN2 Connector; Buzzer; 1x Serial2 Connector; 1x Internal Speaker Connector, 1x CPU FAN Connector; 1x PSWD Jumper; 1x Front Panel Connector;

Anschlüsse Extern: 6x USB2.0, 1x LAN, 1x VGA, 1x Seriell (COM); 1x Parallel (LPT); Audio Anschlüsse 2x 3,5 mm Klinke

Sound: AD1983 High Definition Audio; Stereo conversion 20-bit analog-to-digital; 20-bit digital-to-analog

LAN: Broadcom® 5754 Gigabit Ethernet LAN solution 10/100/1000 Ethernet with Remote Wake Up and PXE support

Power Anschluss:   1x 24-pin, 1x 4-pin

Formfaktor: Dell BTX

Lieferumfang

Nur das Dell Mainboard * ohne weiteres Zubehör * gebraucht *

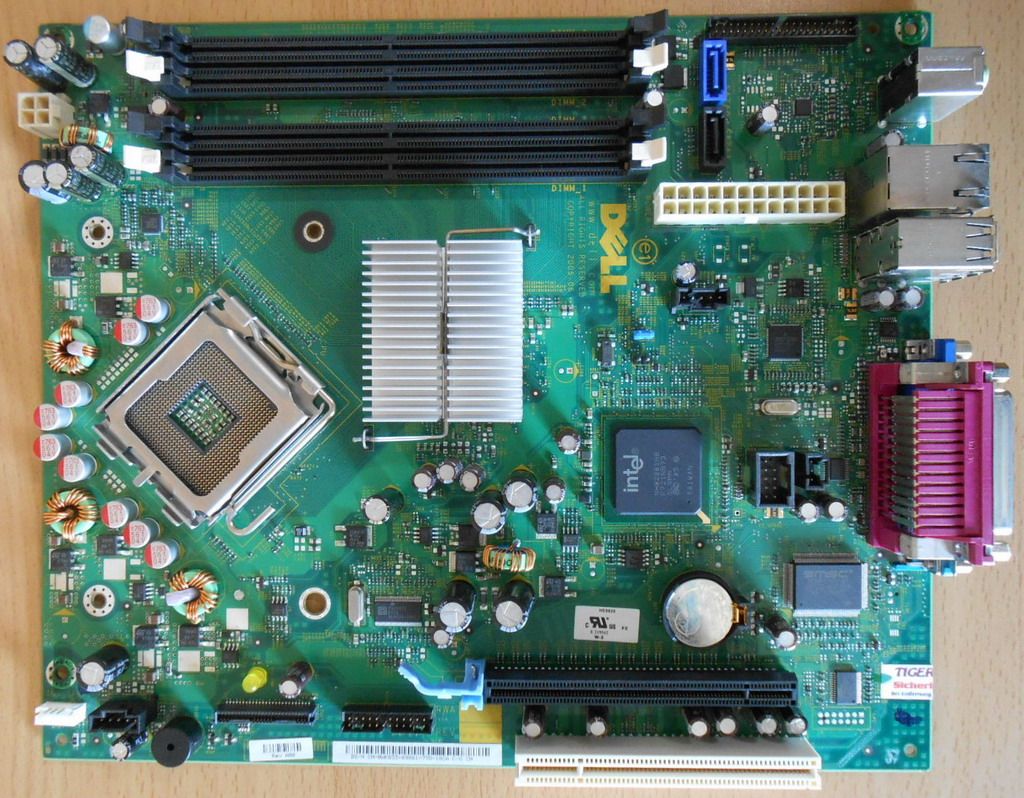

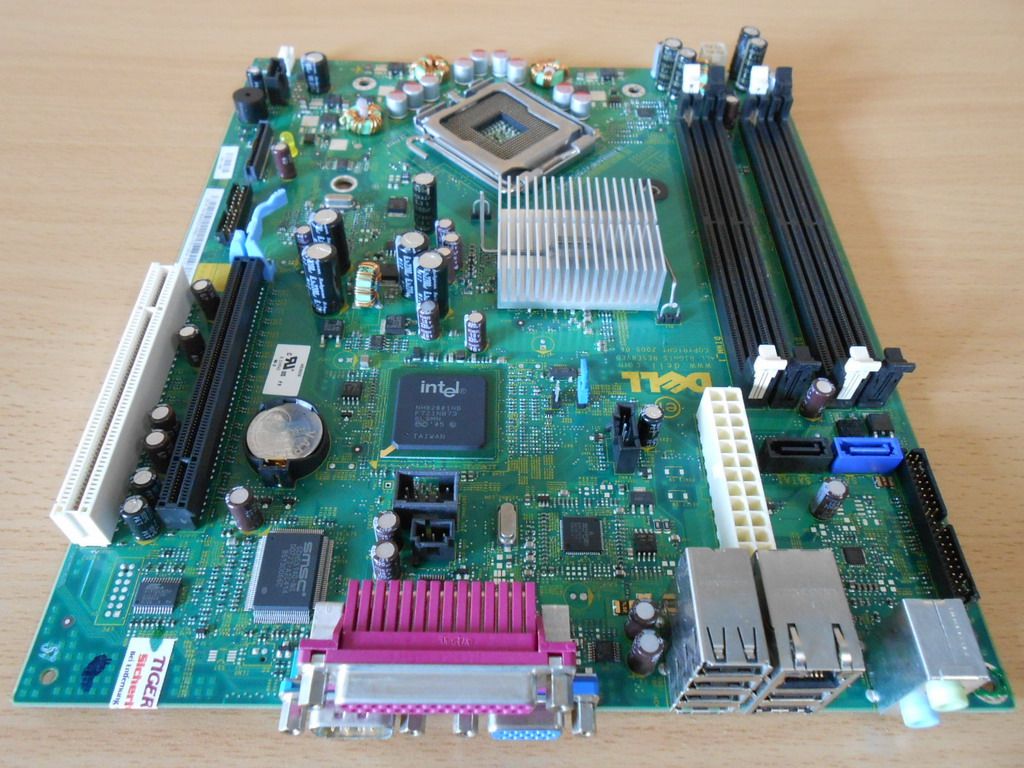

Abbildung ähnlich
