Produktbeschreibung

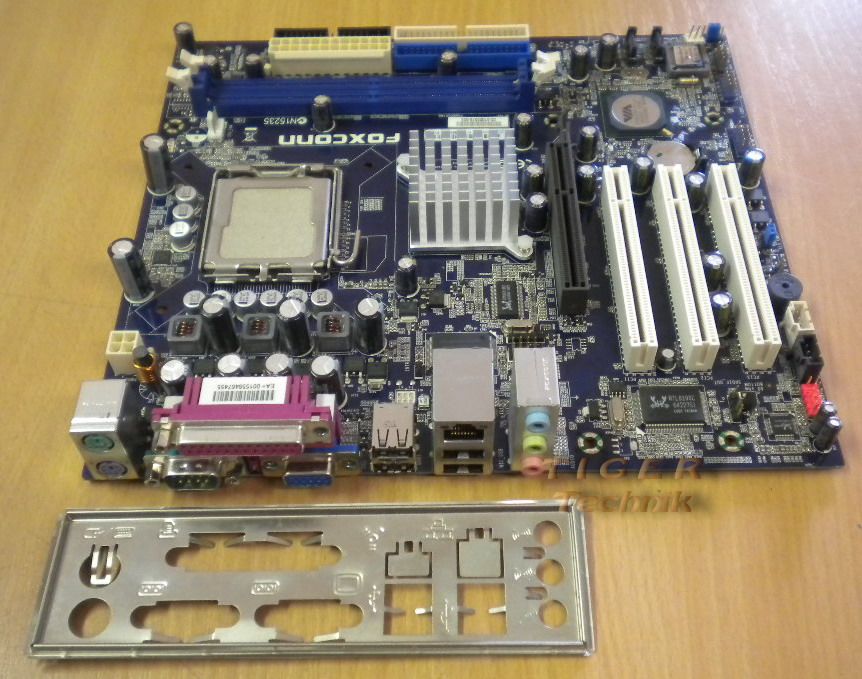

Foxconn P4M800P7MB-RS2H
Mainboard + Blende
Technische Daten:
Processor
Intel® Pentium D, Pentium® 4, Celeron D processors, Socket T (LGA775)
Chipset
VIA P4M800 Pro + 8237R Plus
Front Side Bus
533/800MHz front side bus (FSB)
Memory
Single channel DDRII 533 / 400 x2 DIMMs
VGA on Die
Integrated
Expansion Slots
1 x AGP 8x, 3 x PCI
IDE
ATA133 x 2
Serial ATA(SATA)/RAID
Serial ATA x 2 with RAID 0, 1, JBOD
Audio
5.1 channel, AC’97 interface, Realtek ALC653
LAN
10/100M, Realtek RTL8100C
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x parallel
1 x COM
4 x USB 2.0
1 x RJ45
1 set 5.1 channel Audio jacks (3 jacks)
1 x VGA
Internal I/O Connectors
2 x USB 2.0 headers, support 4 ports
1 x Intruder
1 x IrDA header
1 x CD IN
1 x speaker header
1 x COM2 header
1 x AUX-IN
1 x Front Audio
1 x Front panel
1 x SPDIF out header
1 x Buzzer
BIOS Features
LPC-4Mb, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Standards/Manageability
USB 2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface
Special Features
STR (Suspend-to-Ram); STD (Suspend-to-Disk); SuperRecovery, SuperBoot,SuperBIOS-Protect, SuperLevel, SuperStep, SuperLogo, SuperUpdate
Form Factor
Micro ATX (9.6” x 8.66”)
Handbuch unter folgendem Link: http://www.foxconnchannel.com/ProductDetail.aspx?T=Motherboard&U=en-us0000191
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
