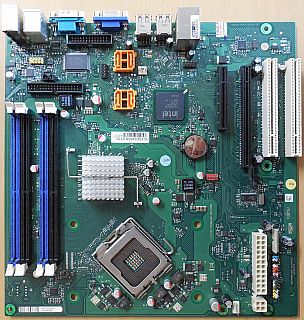

Fujitsu D2811-A13 GS1 Mainboard Intel Q43 Sockel 775 DDR2 VGA PCIe SATA* m1129

Fujitsu D2811-A13 GS 1 Mainboard Intel Q43 Sockel 775 DDR2 VGA PCIe SATA

Technische Daten

Hersteller       Fujitsu

Model       D2811-A13 GS 1

CPU-Unterstützung       Intel® Core™ 2 Quad / Intel® Core™ 2 Duo / Intel® Pentium® Dual Core / Intel® Celeron® Dual Core / Intel® Celeron® 4xx processors with max. 95W (For details on supported processors please refer to the Fujitsu Website)

Sockel       Intel® 775

Chipsatz       Intel® iQ43

Memory       4 x 240-Pin DDR2 1.8V Steckplätze für ungepufferte non-ECC 667(PC2-5300) / 800(PC2-6400) MHz DIMM Module; Single-Channel und Dual-Channel Support; 64-Bit, max. 16 GB Hauptspeicher

LAN       Intel® 82567LF Gigabit Ethernet Controller with 10/100/1000 MBit/s (with ASF / WoL / Boot / iAMT)

Audio       Realtek® ALC 683, 5.1-channel Surround Sound, High Definition Audio

Erweiterungssteckplätze       1 x PCIe x16; 1 x PCIe x4; 2 x PCI

USB       12 x USB2.0 (6 x Rear Panel; 6 x via Header)

Intern       Echtzeituhr/Kalender mit Batteriepufferung

1 x Floppy Drive Connector

4 x SATA2 Ports (bis zu 3GBit/s)

1 x FAN1 Connector (4-pin)

1 x FAN2 Connector (4-pin)

1 x 8-Pin Power Supply FAN Control Connector

3 x USB2.0 Connector für insgesamt 6 weitere USB Ports z.B. via Blende

1 x 24-Pin Fujitsu Power Connector

1 x 4-Pin CPU 12V Connector

1 x Front Panel Connector

1 x Audio Front Panel Connector (AFP)

1 x SPDIF Connector

1 x Parallel port Connector

1 x Chassis Intrusion Connector

1 x TPM Jumper

Externe Anschlüsse       1 x VGA Sub-D; 1 x Seriell; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 6 x USB2.0, 1 x LAN, 1 x Line-In, 1 x Line-Out, 1 x Mic

Hardware Monitoring

FAN monitored and controlled PSU* / CPU (FAN1) / System (FAN2) *not supported by standard Power Supplies

TEMP monitored CPU / Onboard

BIOS       AMI BIOS modified and adapted by Fujitsu Technology Solutions

Special Features

Silent Fan LT                  Independent temperature related processor fan and system fan control

System Guard                View Silent Fan LT features

Silent Drives                   Noise reduction for optical and hard disk drives

Recovery BIOS              Restores a corrupted BIOS

Desk Update                  Simple driver update with Driver&Utilities DVD

Multi Boot                      Comfortable boot from any boot device

HDD Password              Access protection for disk drives

Keyboard Power Button Fujitsu Technology Solutions Keyboard Power Button Support

Logo Boot

Intel On Screen Branding

Formfaktor       μBTX 265 x 267 mm

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
