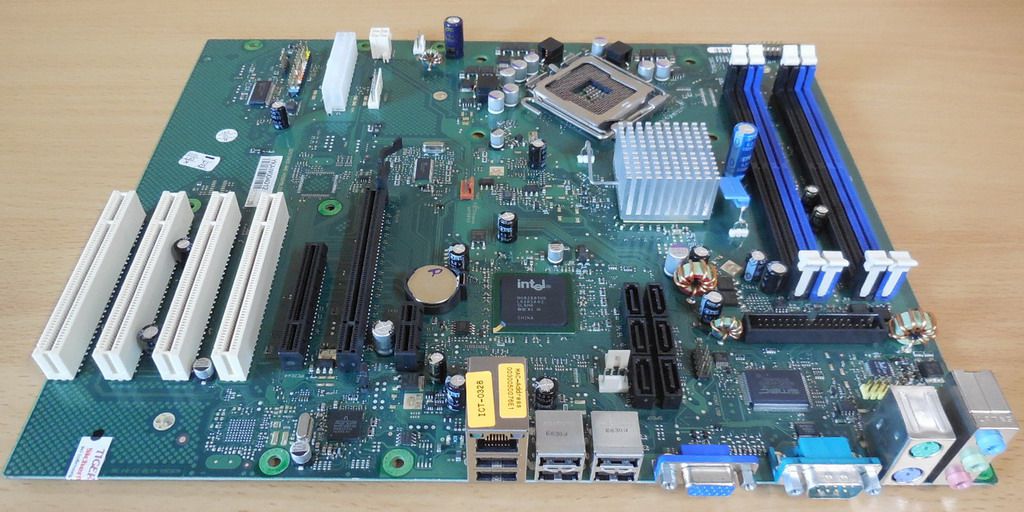

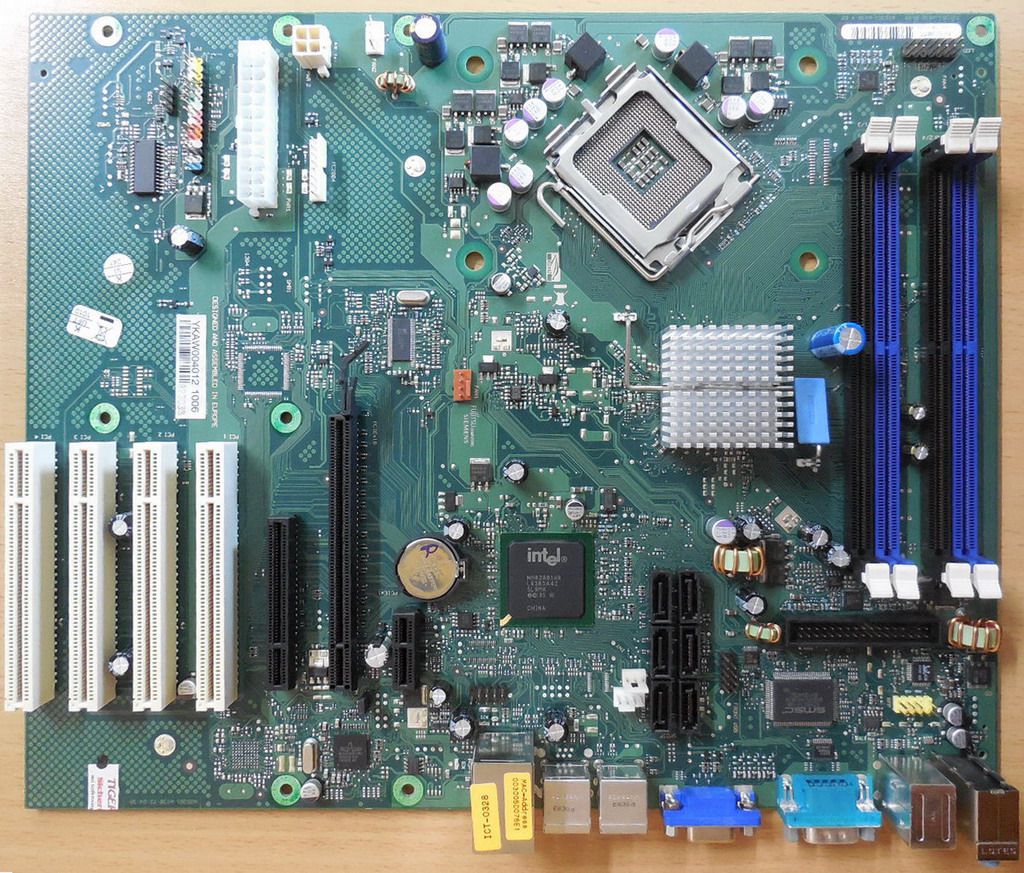

Fujitsu Siemens Celsius W350 Mainboard FSC D2317-A21 GS1 Intel Sockel

Produktbeschreibung

Fujitsu Siemens Celsius W350 Mainboard FSC D2317-A21 GS1 Intel Sockel 775

Technische Daten

Hersteller: Fujitsu Siemens Computers

Model: D2317-A21 GS 1

CPU-Unterstützung:

Intel® Core 2 Duo Processors, LGA775, 1066/800 MHz FSB

Intel® Pentium® D Processors, LGA775, 800MHz FSB

Intel® Pentium® 4 Processors, LGA775, 1066/800/ 533 MHz FSB

Intel® Celeron® D Processors, LGA775, 533 MHz FSB

Support for Hyper-Threading Technology

Compatible with Intel® 06, 05A and 04B processors

(For details on supported processors please refer to the Fujitsu Website)

Sockel: Intel LGA775

Chipsatz: Intel® Q965 / ICH8R

RAM: 4 x DDR2 DIMM Sockets 240-Pin (1.8V), Single Channel or Dual Channel; max. 8 GB Hauptspeicher

DDR2 800/667/533 SDRAM (PC2-6400/PC2-5300/PC2-4200), unbuffered, non ECC

VGA: Intel® GMA3000 Graphics Controller, shared memory (up to 256MB), DirectX 9 compliant, upgradeable with PCI Express x16 Graphics Card or ADD2 cards

LAN: Gigabit Ethernet Controller with 10/100/1000 MBit/s via PCI Express, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, bootix® PXE Support, BIOS MAC Address Display

Audio: Realtek ALC260 (HD Audio), 2-channel, High Definition Audio

Erweiterungssteckplätze: 4x PCI; 1x PCIe x1; 1x PCIe x4; 1x PCIe x16

Intern: Echtzeituhr/Kalender mit Batteriepufferung

6 x SATA2 Ports (bis zu 3GBit/s) für bis zu vier SATA Geräte; RAID 0,1,0+1,5 supported

1 x Diskettenlaufwerksschnittstelle (Floppy)

1 x FAN1 Connector

1 x FAN2 Connector

1 x PC2004 Connector

1 x LCD Connector

1 x Audio Front Panel Connector (AFP)

2 x USB Connectoren für 4 weitere USB2.0 Ports z.B. via Blende

1 x 24-pin Power Connector

1 x 4-pin 12V Processor Supply Connector

1 x Internal Speaker Connector

1 x SPDIF Connector

1 x SCSI LED Connector

1 x Front Panel Connector

Externe Anschlüsse: 1x PS/2 keyboard; 1x PS/2 mouse, 1x VGA Sub-D; 1x Seriell, 1x LAN, 6x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic

BIOS: Phoenix Trusted Core BIOS Version 6.00 modified and adapted by Fujitsu Siemens Computers

Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update via disk (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3 (Save-to-RAM), ACPI S4 (Save-to-Disk), Wake on time from S5

Security Features:

Recovery BIOS, System and BIOS Password, Boot and/or Write Protection for Floppy Disk Drive, Boot Sequence Control for each Floppy and IDE Drive, Serial Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS

Special Features

Silent Fan - Independent temperature related processor and fan supervision and control

System Guard - View and adjust Silent Fan

Silent Drives - Noise reduction for optical and hard disk drives

Safe Standby - Prevents data loss in S3 (save-to-RAM)

Recovery BIOS - Restores a corrupted BIOS

Desk Update - Simple driver update with DU CD

Multi Boot - Comfortable boot from any boot device

HDD Password - Access protection for ATA5/ATAPI5 disk drives

Logo Boot / Intel On Screen Branding

Hardware Monitoring

FAN monitored PSU/CPU/AUX1/AUX2/AUX3
