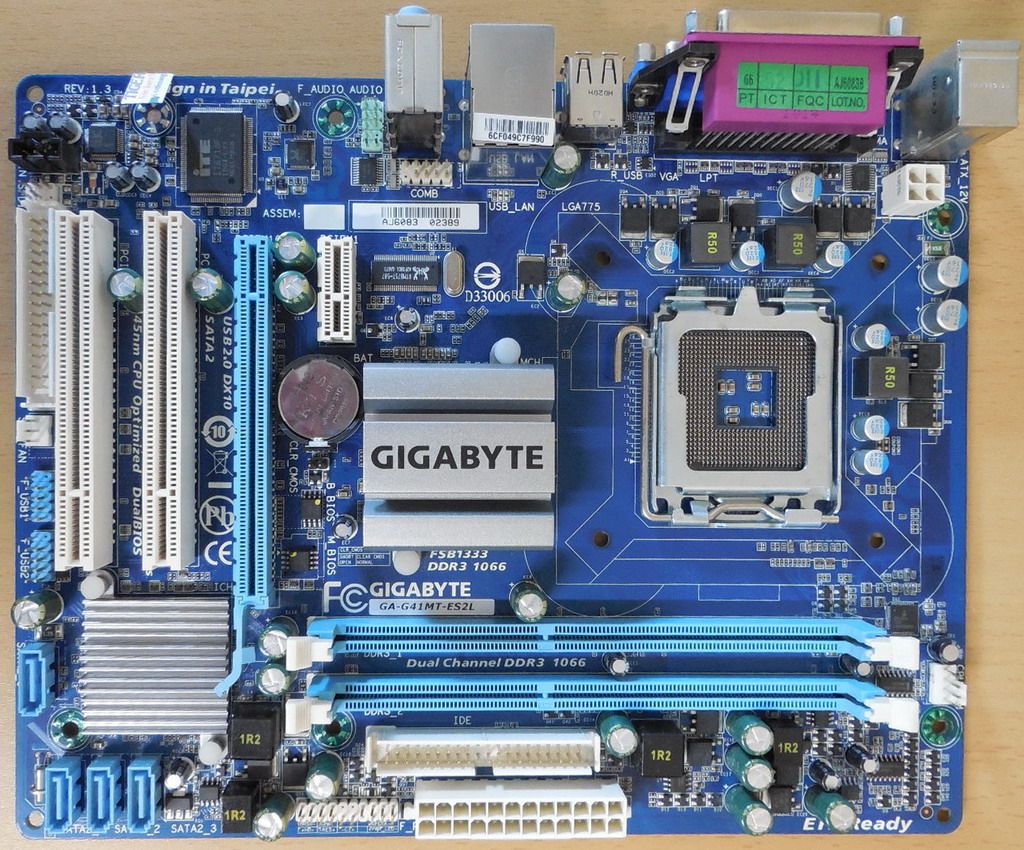

Gigabyte GA-G41MT-ES2L Rev1.3 Mainboard +Blende Sockel 775 DDR3 PCIe GBLAN*m1097

Gigabyte GA-G41MT-ES2L Rev1.3 Mainboard + Blende Sockel 775 DDR3 PCIe GBLAN

Technische Daten

Prozessor

Support for an Intel® Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel® Core™ 2 Duo processor / Intel® Pentium® processor / Intel® Celeron® processor in the LGA775 package

L2 cache varies with CPU

Go to GIGABYTE's website for the latest CPU support list

Front Side Bus

1333/1066/800 MHz FSB

Chipsatz

Intel® G41 Express Chipset Northbridge + Intel® ICH7 Southbridge

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory

Dual channel memory architecture

Support for DDR3 1066/800 MHz memory modules

Go to GIGABYTE's website for the latest supported memory speeds and memory modules

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Onboard Grafik

1 x D-Sub port

Audio

Realtek ALC888B codec

High Definition Audio

2/4/5.1/7.1-channel

Support for CD In, S/PDIF In/Out

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slots

2 x PCI slots

Storage Interface

1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

1 x Floppy disk drive connector supporting up to 1 floppy disk drive by iTE IT8718

USB

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x IDE connector

1 x Floppy disk drive connector

1 x 4-Pin CPU fan header

1 x 3-Pin system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x S/PDIF In/Out header

1 x serial port header

1 x CD In connector

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x Parallel port

1 x Serial port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

H/W Überwachung

System voltage detection, CPU temperature detection, CPU/System fan speed detection, CPU overheating warning, CPU/System fan fail warning, CPU fan speed control (depends on the CPU cooler installed)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Available functions may differ by motherboard model); Easy Energy Saver (Due to the hardware limitation, you must install the Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium Dual-Core / Celeron Dual-Core / Celeron 400 Series CPU to enable support for Easy Energy Saver); Time Repair; Q-Share

Betriebssystem

Support for Microsoft® Windows® 7/Vista/XP

Form Factor

Micro ATX Form Factor; 24.4cm x 19.4cm

Lieferumfang

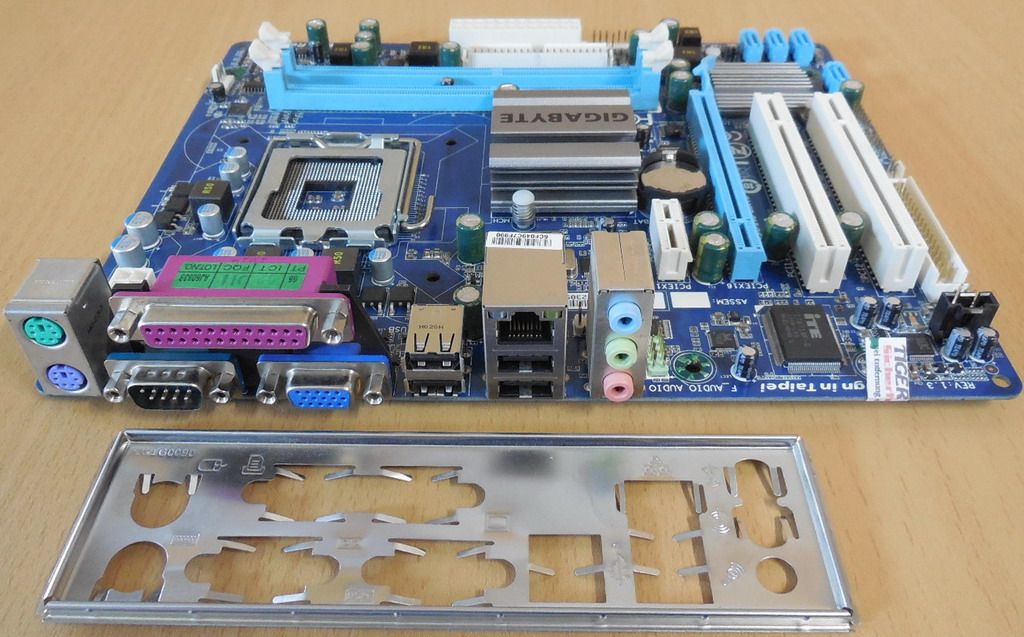

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
