Produktbeschreibung

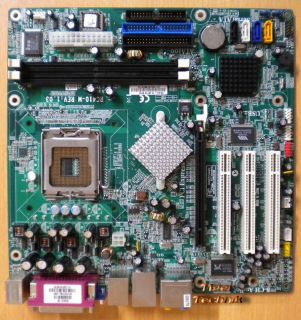

HP Asterope2 Mainboard
Technische Daten
HP Asterope2 Mainboard, Part No.: 5188-4383, ECS RC410-M Rev:1.03
CPU/Processor
Socket: 775
Supports the following processors:
Pentium D 900 series Dual Core (Pressler, 65nm)
Pentium D 800 series Dual Core (Smithfield, 90nm)
Pentium 4 601 series (Cedar Mill, 65nm)
Pentium 4 600 series (Prescott, 90nm)
Pentium 4 500J and 501 series (Prescott, 90nm)
Celeron D 352, 356 (Cedar Mill, 65nm)
Celeron D 325J/326, 330J/331, 335J/336, 340J/341, 345J/346, 351, 355 (Prescott, 90nm)
Front-side bus (FSB)
800/533 MHz (processor dependent)
Chipset
Northbridge: ATI RC410
Southbridge: ATI IXP450
BIOS features
AMI BIOS
Form factor
Micro ATX size form factor, 9.6 in x 9.6 in
Memory
Single-channel memory architecture
2 x 240-pin DIMM sockets support unbuffered non-ECC 400/533 MHZ DDR2 memory modules
Maximum HP/Compaq approved memory is 2 GB
Expansion slots
Three PCI
One PCI Express
Video graphics
Integrated
Supports PCI Express x16 graphics cards
Onboard audio
Built-in Azalia 8 channel audio
Realtek ALC883 8-channel High Definition Audio CODEC
Onboard LAN
Realtek RTL8100 10/100 Mbps Fast Ethernet controller
Back panel I/O
PS/2 keyboard (purple)
PS/2 mouse (green)
One SPDIF out port
One S-video out port
One VGA out port
One Parallel port
Four USB (2.0)
One IEEE 1394a
One RJ-45 networking port (LAN)
Audio ports:
line in (light blue)
line out (lime)
microphone (pink)
side speaker out (gray)
rear speaker out (black)
center/subwoofer (yellow orange)
Internal connectors
Two IDE connectors
One floppy drive connector
One ATX 24-pin power connector
One ATX 4-pin +12v power connector
Four Serial ATA connectors
One VGA connector
One IEEE 1394a connector
One CPU fan connector
One PC fan connector
One CD_IN connector
One front panel audio connector
One PC panel connector
Two USB connectors supporting 2.0 ports
Lieferumfang

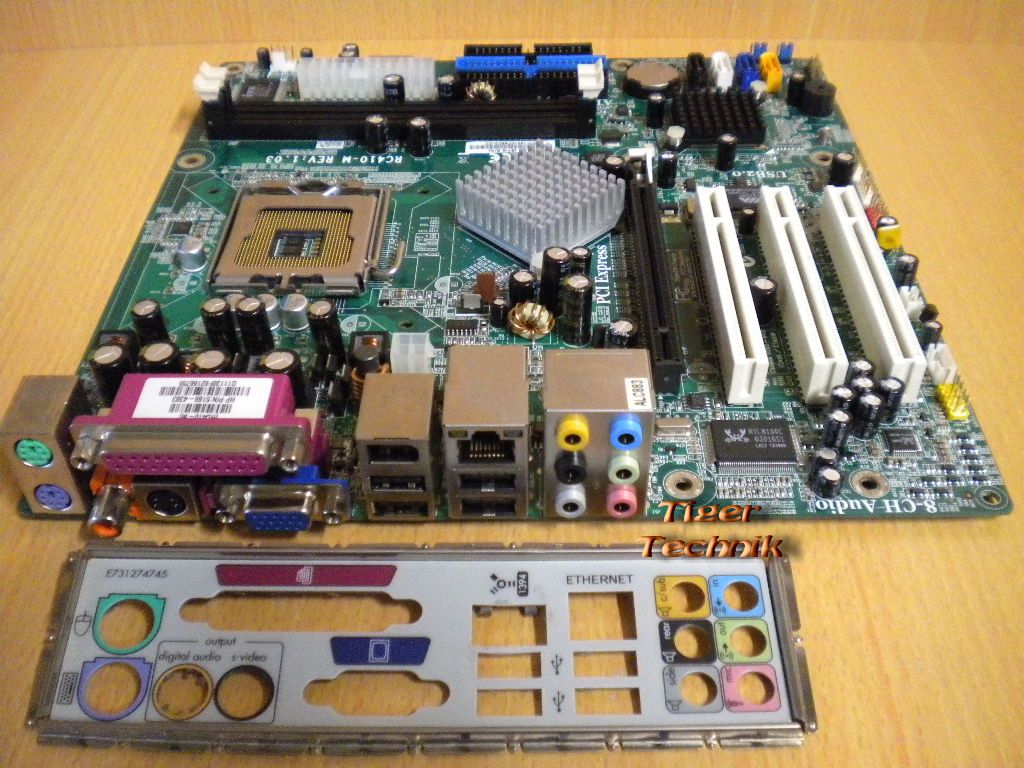

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
