HP Compaq dx2200 Mainboard Rev0G 410716 410506 001 MSI MS-7254 Ver1.1 So775*m776

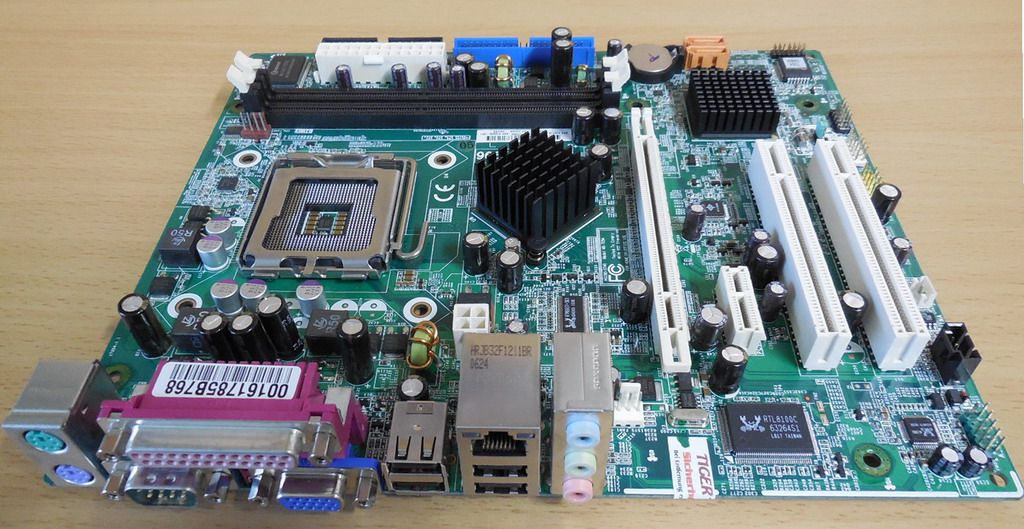

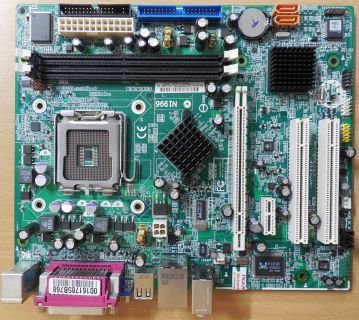

HP Compaq dx2200 Mainboard

HP Part No. 410716-001 410506-001 Rev 0G MSI MS-7254 Ver 1.1 Sockel 775

Technische Daten

Hersteller:  HP

SP: 410716-001 AS: 410506-001 Rev: 0G

Geeignet für: HP/Compaq dx2200 oder baugleich; Bei entsprechenden Vorraussetzungen auch in anderen PC´s verwendbar!

Sockel:   775

Prozessor: Intel
Intel Celeron D 326 Processor (2.53-GHz, 256-KB L2 cache, 533-MHz FSB). Intel Celeron D 331 Processor (2.66-GHz, 256-KB L2 cache, 533-MHz FSB). Intel Celeron D 336 Processor (2.80-GHz, 256-KB L2 cache, 533-MHz FSB). Intel Celeron D 346 Processor (3.06-GHz, 256-KB L2 cache, 533-MHz FSB). Intel Celeron D 355 Processor (3.33-GHz, 256-KB L2 cache, 533-MHz FSB). Intel Pentium 4 516 Processor (2.93-GHz, 1-MB L2 cache, 533-MHz FSB). Intel Pentium 4 519K Processor (3.06-GHz, 1-MB L2 cache, 533-MHz FSB). Intel Pentium 4 Processors with Hyper-Threading Technology. Intel Pentium 4 521 Processor (2.80-GHz, 1-MB L2 cache, 800-MHz FSB). Intel Pentium 4 524 Processor (3.06-GHz, 1-MB L2 cache, 533-MHz FSB). Intel Pentium 4 630 Processor (3.0-GHz, 2-MB L2 cache, 800-MHz FSB). Intel Pentium 4 640 Processor (3.2-GHz, 2-MB L2 cache, 800-MHz FSB). Intel Pentium 4 541 Processor (3.2-GHz, 1-MB L2 cache, 800-MHz FSB) Intel Pentium D 805 Dual Core Processor (2.66-GHz, 2x1MB L2 cache, 533-MHz FSB). Intel Pentium D 820 Dual Core Processor (2.8-GHz, 2x1MB L2 cache, 800-MHz FSB). Intel Pentium D 915 Dual Core Processor (2.8-GHz, 2x2MB L2 cache, 800-MHz FSB). Intel Pentium D 925 Dual Core Processor (3.0-GHz, 2x2MB L2 cache, 800-MHz FSB)

Chipset: ATI RC410 (Northbridge); ATI SB450 (Southbridge)

VGA: Built-in ATI graphics processor derived from the Radeon X300 provided by the ATI Radeon Xpress 200 chipset

Steckplätze: 2x PCI, 1x PCI-Express x16, 1x PCI-Express x1

RAM-Bänke: 2x PC2-5300 DDR2 SDRAM (667-MHz) non-ECC; max. 2GB

Anschlüsse Extern: 4x USB2.0, 1x LAN, 1x VGA, 1x Parallel, 1x Seriell, 1x PS/2 Keyboard, 1x PS/2 Mouse, 3x 3,5 mm Klinke Audio Anschlüsse

Anschlüsse Intern: 2x SATA I 1.5Gb/s; 1x IDE Connector; 1x Sys Fan Connector; 1x CPU Fan Connector; 1x Floppy Connector; 1x Front Audio Connector; 1x HP Internal Speaker Connector, 1x Front Panel Connector; 1x CD-In Connector; 2x USB2.0 Connectors for 4 additional ports; 1x JLPC Connector

Sound: Realtek ALC861 HD Audio compatible codec with two channel audio 3D audio compliant with AC'97 rev. 2.3

LAN: Integriertes Realtek 8100C Fast Ethernet

Power Anschluss: 1x 24-pin PWR, 1x 4-pin P4

Formfaktor:  micro-ATX (z.B. HP/Compaq dx2200)

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
