Intel Entry Server SE7221BK1-E Mainboard Sockel 775 E7221 DDR2 PCIe in OVP* m746

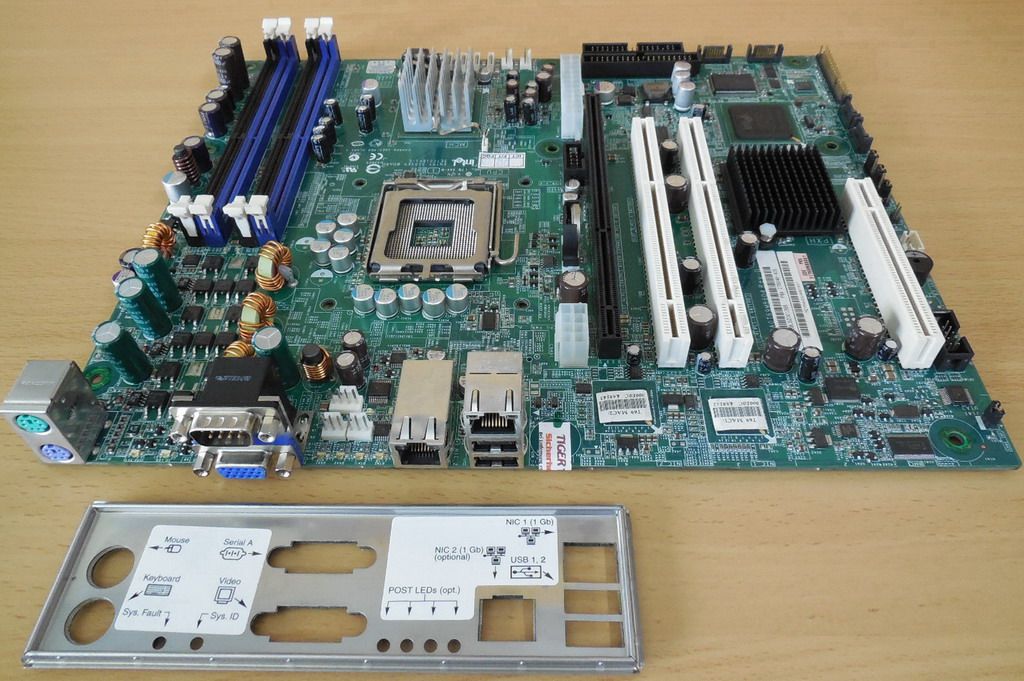

Intel Entry Server SE7221BK1-E Mainboard

Sockel 775 E7221 DDR2 PCIe in OVP

Technische Daten

Form Factor

ATX (12 inches by 9.6 inches)

Support for the following processors:

Support for One Boxed Intel Pentium 4 Processor (Hyper-Threading supported) with an LGA775 Socket. (Siehe bitte Liste auf der Seite von Intel)

Main Memory

Four DIMM Sockets Supporting Unbuffered DDR2 400/533 SDRAM

Error Correcting Code (ECC)-Capable

Chipset

Intel® E7221

VGA

Intel GMA Graphics integriert

PCI Adapter Card Support

PCI, PCI-X and PCI Express

1U System - One Adapter Card Slot on Riser (Riser Card nicht im Lieferumfang)

Pedestal System - Four Adapter Card Slots

Integrated High-Quality Components

Two Intel Pro/1000 Server Network Connections

Single-Channel ATA 100 Supporting Up to Two IDE Devices

Quad-Channel SATA Supporting RAID 0, 1 and 10

Peripheral Interfaces

Two serial ports (One via header onboard)

Four Universal Serial Bus (USB2.0) ports (Two via header onboard)

One IDE interfaces for up to 2 Devices

One diskette drive interface

Expansion capabilities

(1x) One PCI-E x8

(2x) Two PCI-X

(1x) One PCI

Other connectors

8x System Fan Connectors; 1x CPU Fan Connector; 1x USB_3-4 header; 1x CPU Power connector; 1x Main Power connector; 4x SATA connectors; 1x IDE connector; 1x Floppy port connector; 1x Front Panel connector; 1x Serial_B header; 1x Chassis Intruder; 1x Speaker; 1x Speaker connector; CMOS Clear; PSWD Clear; RCVR Boot; HDD LED; Bios_Sel_0

Others

Designed for the Intel Entry Server Platform SR1425BK1-E (1U-Rack) and Intel Entry Server Chassis SC5250-E.

Also compatible with a Number of Third-Party Reference Chassis

Lieferumfang

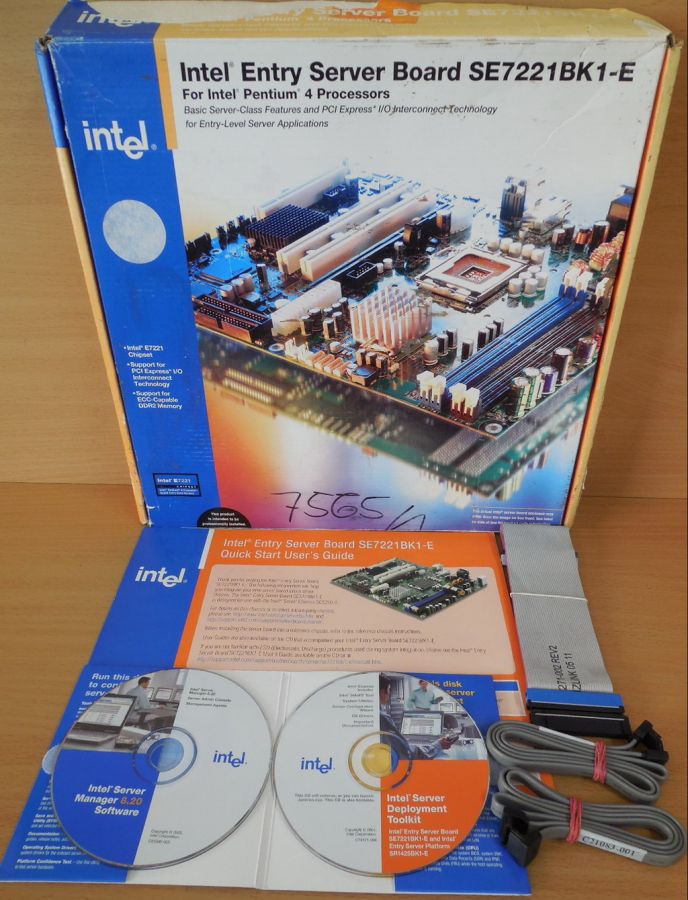

Das Mainboard, die Blende, 2x SATA Datenkabel, 1x IDE Datenkabel, Quick Start User Guide, Board-Configuration Label, Intel Server Management 8 CD Pack * ohne weiteres Zubehör * gebraucht in OVP *

Abbildung ähnlich
