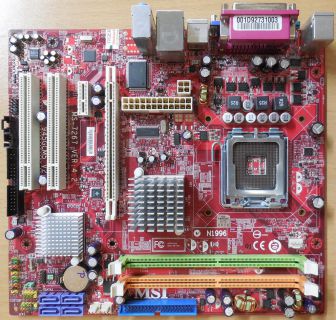

MSI MS-7267 Ver 4.2 945GCM5 V2 Mainboard +Blende Sockel 775 Intel Maxdata* m871

MSI MS-7267 Ver 4.2 945GCM5 V2 Mainboard + Blende Sockel 775 Intel Maxdata OEM

Technische Daten

CPU

Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, Pentium D 8XX, 9XX and Celeron D processors.

Supports EIST technology; Intel® Hyper-Threading technology.; Intel® Dual Core Technology to 800MHz and up.

(For the latest information about CPU, please visit the MSI Website)

Chipsatz

Intel® 945GC (NB) + Intel® ICH7 (SB)

Front Side Bus

800 / 533 MHz

Memory

2 x DIMM, max. 4GB, DDR2 667 / 533 / 400 MHz, non-ECC, un-buffered memory

Expansion Slots

1 x PCIe x16

1 x PCIe x1

2 x PCI (Supports 3.3V/5V PCI bus interface)

VGA

Integrated Intel Graphics Media Accelerator 950

Max. resolution: 2048x1536 @75Hz, Vertical: 85Hz@ up to 1920x1440

Storage

4 x SATA 3.0 Gb/s ports for up to 4 SATA devices

1 x UltraDMA 100/66 for up to 2 PATA devices; Supports PIO, Bus Master operation modes

1 x Floppy port; Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

LAN

10/100 Mb/s Fast Ethernet by Realtek RTL 8101E

Audio

Realtek® ALC888, 7.1-channel High-Definition Audio CODEC

Vista Premium compliance; Compliant with Azalia Rev 1.0 spec.

USB

8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA port

1 x Parallel port (SPP/EPP/ECP)

1 x COM Port

1 x RJ45 port

4 x USB 2.0

7.1-channel HD Audio I/O

Internal I/O Connectors

2 x USB2.0 connectors support additional 4 USB2.0 ports

1 x Floppy disk drive connector

1 x IDE connector

4 x SATA connectors

1 x CPU Fan connector

1 x SYS Fan 1 connector

1 x SYS Fan 2 connector

Front panel audio connector

1 x S/PDIF Out Header

CD audio in

24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

System Panel

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Form Factor

uATX Form Factor 24.5cm x 22.5cm; 6 mounting holes

ausgebaut aus einem Maxdata PC

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
