Produktbeschreibung

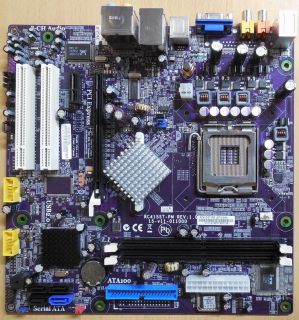

Packard Bell Rio 3 ECS RC415ST-PM Rev 1.0 Mainboard + Blende Sockel 775
Technische Daten
Manufacturer's motherboard name: ECS RC415ST-PM Rev 1.0
Chipset
ATI Radeon Xpress 1100 for Intel Processors
FSB
800/533 MHz (processor dependent)
Processor upgrade information
Socket type: 775
Motherboard supports the following processor upgrades:
Pentium D 900 series (Presler); Pentium 4 601 series (Conroe); Celeron D 3xx series (Conroe); Celeron D 3xx series (Prescott)
Memory upgrade information
Single-channel memory architecture
2 x 240-pin DIMM sockets PC2-3200 (400 MHz) / PC-4200 (533 MHz)
non-ECC memory only, unbuffered
Maximum memory is 2 GB
Video
Dynamically allocates up to 256 MB from system memory
VGA output on back panel
Audio
High Definition 6 channel audio
Audio CODEC: Realtek ALC888
LAN
Technology: Realtek RTL8100C
Data transfer speeds: up to 10/100 Mb/s
Transmission standards:10-Base-T Ethernet
Expansion Slots
One PCI Express x16
One PCI Express x1
Two PCI
Back I/O ports
One PS/2 mouse port (green)
One PS/2 keyboard port (purple)
Two SPDIF coaxial ports (One yellow; One orange)
One VGA port
Four USB 2.0 ports
One RJ-45 networking port
Six audio ports support 8-channel audio:
Line-in (light blue); Microphone-in (pink); Line-out (lime); Center/subwoofer (yellow orange); Side speaker out (gray); Rear speaker out (black)
Internal Connectors
One 24-pin ATX power connector
One 4-pin ATX power connector
Four Serial ATA connectors
One IDE connector for up to two drives
Two 12V fan connectors for CPU fan and System fan
One 9-pin header for power button, reset etc.
One 9-pin audio header for headphone-out and microphone-out
SPDIF output header
Two USB supporting 4 USB2.0 ports or devices
One jumper for resetting BIOS settings
One jumper to disable BIOS password checking
Form Factor
Micro-ATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
