Produktbeschreibung

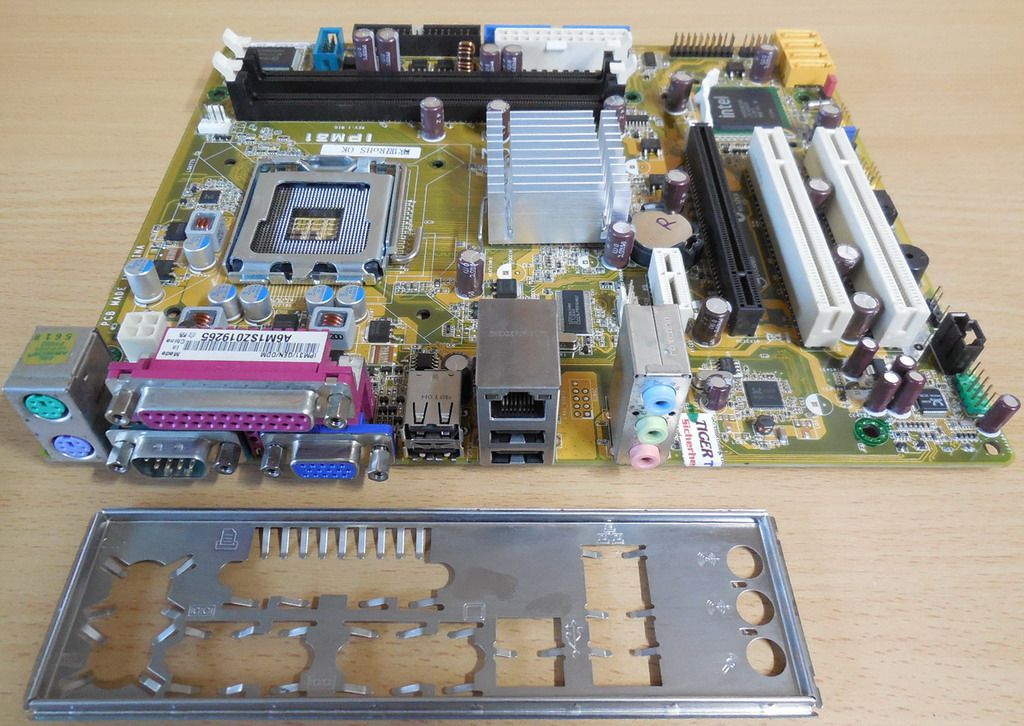

Pegatron IPM31 Rev 1.01G Mainboard + Blende Sockel 775 DDR2 PCIe GbE LAN VGA
Technische Daten
CPU
Support LGA775 socket Intel® CoreTM 2 Quad / CoreTM 2 Duo / Pentium® Dual-Core / Celeron® Dual-Core / Celeron® processors
Supports Conroe L, Conroe, Wolfdale CPU´s
Front Side Bus
1333/1066/800MHz FSB
Chipset
Intel® G31 Chipset (North Bridge) + Intel® ICH7 (South Bridge)
Memory
2 x 240-pin DDR2 DIMM sockets; Non-ECC, Un-buffered
Support up to 4GB of system memory
Dual channel DDR2 800/667MHz architecture
Graphics
Integrated Intel GMA 3100 Graphics
Audio
Realtek ALC662 CODEC (6 Channels)
LAN
Realtek RTL8111C PCIe
Expansion Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Storage
4 x SATA connectors; 300MB/s data transfer rate
1 x IDE connector for up to 2 IDE devices
USB
Support up to 8 x USB 2.0 ports (4 rear panel ports, 2 onboard USB headers supporting 4 extra ports); 12Mbps/480Mbps
Internal Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x IDE connector
4 x SATA connectors
1 x Floppy connector
2 x USB 2.0 connectors (supporting 4 x USB devices)
1 x CPU Fan connector (4-pin)
1 x Chassis Fan connector (4-pin)
1 x Front Panel connector
1 x CD_IN connector
1 x Buzzer
1 x Front Audio connector
1 x TPM Connector
1 x COM2 Connector
1 x S/PDIF_OUT Connector
1 x USB Power Jumper
1 x CMOS Jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial (COM) Port
1 x Parallel port
1 x VGA port
4 x USB 2.0 ports
1 x RJ-45 LAN port
3 x Audio ports
BIOS
AMI 4Mb SPI
Form Factor
Micro ATX Form Factor, microATX: 9.6 in. x 8.0 in.
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
