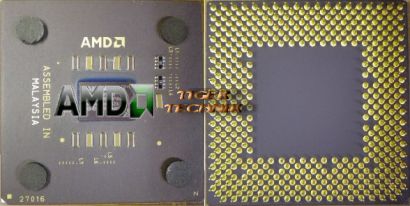

CPU Prozessor AMD Athlon 1200MHz A1200AMS3B FSB200 Sockel A/462 *c52

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon

CPU part number

• A1200AMS3B is an OEM/tray microprocessor

Stepping codes

AVHA   AVIA   AXHA   AXIA   AXIAR   AYHJA   AYHJAR   BVFA   BXHA   BXIA

Frequency  ?

1200 MHz

Bus speed  ?

200 MHz

Clock multiplier  ?

12

Package

453-pin staggered ceramic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

26822, 27016

Socket

Socket A (Socket 462)

Introduction date

17-Oct-00

Price at introduction

$612

Architecture / Microarchitecture

Microarchitecture

K7

Processor core  ?

Thunderbird (Model 4)

CPUID

642

Manufacturing process

0.18 micron
37 million transistors

Die size

120mm²

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size  ?

64 KB 2-way set associative code cache
64 KB 2-way set associative data cache

Level 2 cache size  ?

Full-speed on-die 256 KB

Multiprocessing

Uniprocessor

Features

• MMX instructions
• Extensions to MMX
• 3DNow! technology
• Extensions to 3DNow!

Low power features

• Halt state
• Stop Grant states
• Sleep state  ?
• Probe state

Integrated peripherals / components

Integrated graphics

None

Electrical / Thermal parameters

V core  ?

1.75V ± 0.1V

Minimum/Maximum operating temperature  ?

0°C - 95°C

Minimum/Typical/Maximum power dissipation

5 Watt (Stop Grant mode) / 58.9 Watt / 65.7 Watt

Notes on AMD Athlon 1.2 GHz

• Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz.
