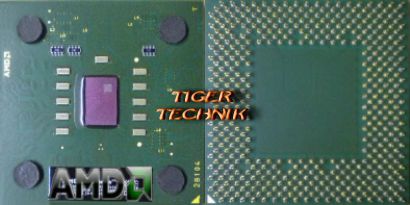

CPU Prozessor AMD Athlon XP 3200+ AXDA3200DKV4E FSB400 Sockel A 462 grün* c103

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number

3200+

CPU part number

AXDA3200DKV4E is an OEM/tray microprocessor

Stepping codes

ADYHA   AQXCA   AQXDA   AQXEA   AQXFA   AQYFA   AQYHA   IQYHA   KQYHA   UQYHA

Frequency

3200+ (rated); 2200 MHz (real)

Bus speed

400 MHz

Clock multiplier

11

Package

453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27488, 27493, 28103

Socket

Socket A (Socket 462)

Introduction date

13-May-03

Price at introduction

$464

Architecture / Microarchitecture

Microarchitecture

K7

Processor core

Barton (Model 10)

Manufacturing process

0.13 micron copper process

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

Full-speed exclusive on-die 512 KB 16-way set associative cache

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions

Low power features

Halt state, Stop Grant states, Sleep state, Probe state

Electrical / Thermal parameters

V core

1.65V

Minimum/Maximum operating temperature

0°C - 85°C

Typical/Maximum power dissipation

60.4 Watt / 76.8 Watt

Notes on AMD Athlon XP 3200+ (400FSB)

Actual bus frequency is 200 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 400 MHz.
