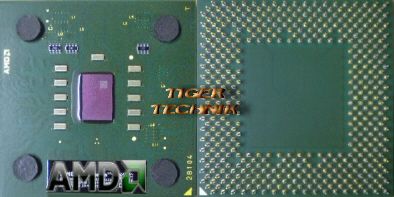

CPU Prozessor AMD Athlon XP 1500+ AX1500DMT3C FSB266 Sockel A/462 grün *c105

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number  ?

1500+

CPU part number

• AX1500DMT3C is an OEM/tray microprocessor

Stepping codes

AGKGA   AGOGA   AGOIA   ARKGA   ARNGA

Frequency  ?

1500+ (rated)
1333 MHz (real)

Bus speed  ?

266 MHz

Clock multiplier  ?

10

Package

453-pin organic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package number

27111

Socket

Socket A (Socket 462)

Introduction date

9-Oct-01

Price at introduction

$130

Architecture / Microarchitecture

Microarchitecture

K7

Processor core  ?

Palomino (Model 6)

Manufacturing process

0.18 micron copper process

Die size

129.26mm² (total)
105.72mm² (without L2 cache)

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size  ?

64 KB code
64 KB data

Level 2 cache size  ?

Full-speed on-die 256 KB

Multiprocessing

Uniprocessor

Features

• MMX instructions
• Extensions to MMX
• 3DNow! technology
• Extensions to 3DNow!
• SSE / Streaming SIMD Extensions

Low power features

• Halt state
• Stop Grant states
• Sleep state  ?
• Probe state

Integrated peripherals / components

Integrated graphics

None

Electrical / Thermal parameters

V core  ?

1.75V

Minimum/Maximum operating temperature  ?

0°C - 90°C

Minimum/Typical/Maximum power dissipation

2 Watt (Stop Grant mode) / 53.8 Watt / 60 Watt

Notes on AMD Athlon XP 1500+

• Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
