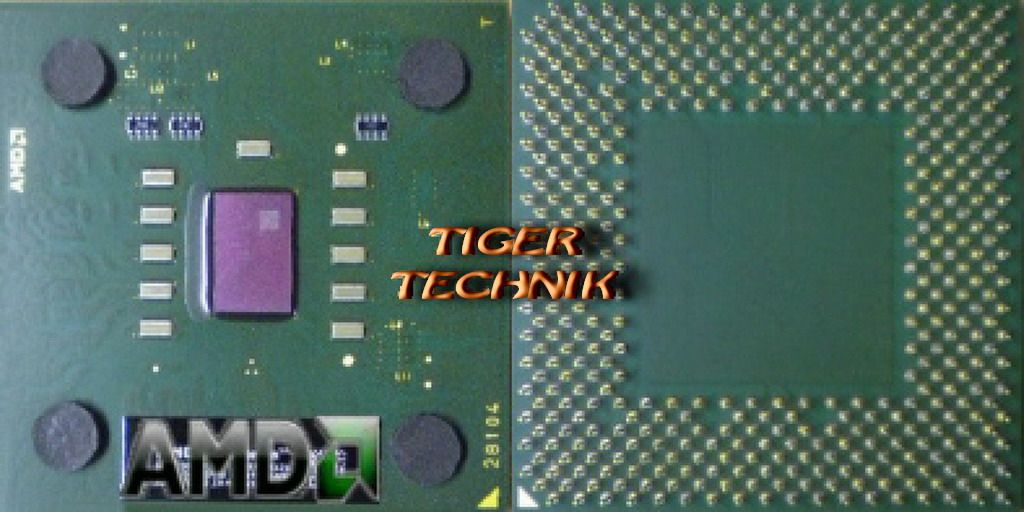

CPU Prozessor AMD Sempron 2300+ SDA2300DUT3D Sockel 462 A FSB333 grün* c179

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Sempron

Model number

2300+

CPU part numbers

SDA2300DUT3D is an OEM/tray microprocessor; SDA2300BOX is a boxed microprocessor with fan and heatsink

Stepping code

BIXJB

Frequency

2300+ (rated); 1583 MHz (actual)

Bus speed

333 MHz

Clock multiplier

9.5

Package

453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm)

Socket

Socket A (Socket 462)

Introduction date

July 28, 2004

Price at introduction

$45

Architecture / Microarchitecture

Microarchitecture

K7

Processor core  ?

Thoroughbred (Model 8)

Manufacturing process

0.13 micron

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB code; 64 KB data

Level 2 cache size

Full speed on-die exclusive 256 KB

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions

Low power features

Halt state, Stop Grant states, Sleep state, Probe state

Electrical / Thermal parameters

V core

1.6V

Minimum/Maximum operating temperature

0°C - 90°C

Minimum/Typical/Maximum power dissipation

7.9 Watt (Stop Grant mode) / 55.9 Watt / 62 Watt

Notes on AMD Sempron 2300+

Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz
