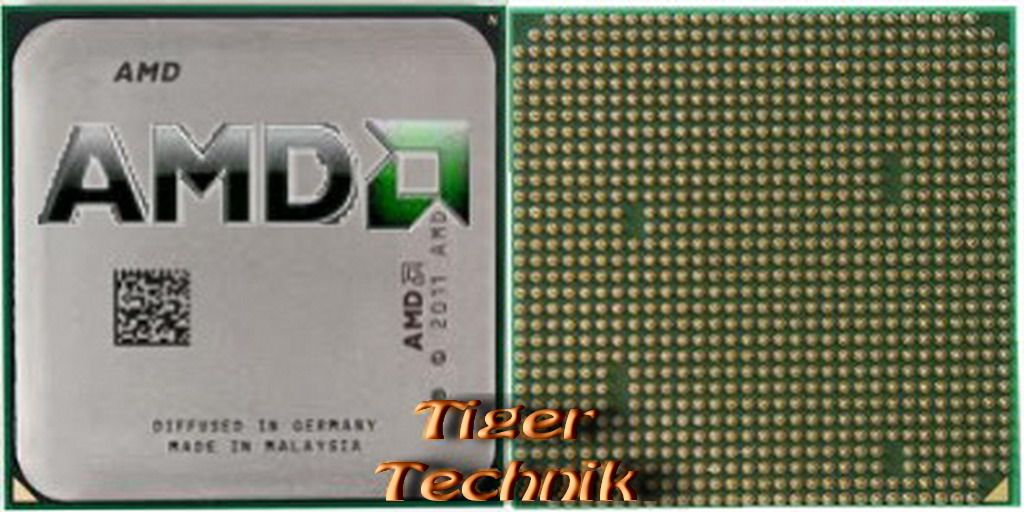

CPU AMD AthlonX2 7750 Black Edition AD775ZWCJ2BGH 2x2.7GHz FSB1800 AM2+ AM2*c225

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon X2

Model number

7750

CPU part numbers

AD775ZWCJ2BGH is an OEM/tray microprocessor; AD775ZWCGHBOX is a boxed microprocessor with fan and heatsink

Stepping codes

JAAAB AA   JAAPB AA   JAARB AA

Frequency

2700 MHz

Bus speed

One 1800 MHz 16-bit HyperTransport link (3.6 GT/s)

Clock multiplier

13.5

Package

940-pin organic microPGA

Sockets

Socket AM2; Socket AM2+

Weight

1.4oz / 39.2g

Introduction date

Dec 14, 2008

Price at introduction

$79

Architecture / Microarchitecture

Microarchitecture

K10

Platform

Cartwheel

Processor core

Kuma

Core stepping

DR-B3

CPUID

100F23

Manufacturing process

0.065 micron silicon-on-insulator (SOI) technology; 450 million transistors

Die

285mm2

Data width

64 bit

The number of CPU cores

2

The number of threads

2

Floating Point Unit

Integrated

Level 1 cache size

2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches

Level 2 cache size

2 x 512 KB 16-way set associative caches

Level 3 cache size

Shared 2 MB 32-way set associative cache

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, SSE4a, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection, AMD-V / AMD Virtualization technology

Low power features

Cool'n'Quiet 2.0, CoolCore technology, Independent Dynamic Core Technology, Dual Dynamic Power Management

Memory controller

The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR2-1066
Maximum memory bandwidth (GB/s): 17.1

Other peripherals

HyperTransport 3.0 technology

Electrical / Thermal parameters

V core

1.05V - 1.325V

Maximum operating temperature

73°C

Thermal Design Power

95 Watt

Notes on AMD Athlon X2 7750 (BE)

The processor has unlocked multiplier
