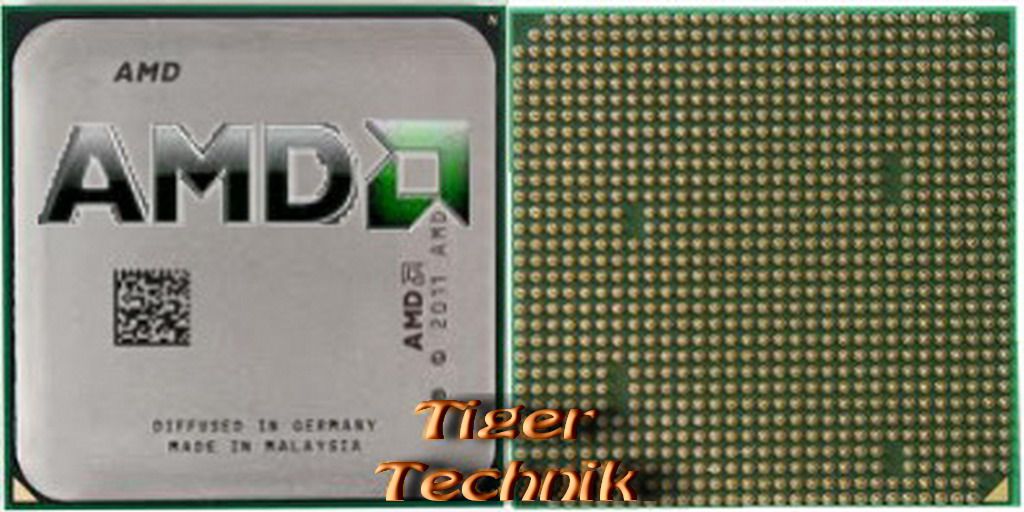

CPU Prozessor AMD Phenom X3 8600B HD860BWCJ3BGH 3x2.3GHz Sockel AM2 AM2+* c551

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Phenom X3

Model number

8600B

CPU part numbers

HD860BWCJ3BGH is an OEM/tray microprocessor; HD860BWCGHBOX is a boxed microprocessor with fan and heatsink

Stepping codes

JAAAB AA   JAAFB AA   LAAAB AA

Frequency

2300 MHz

Bus speed

One 1800 MHz 16-bit HyperTransport link (3.6 GT/s)

Clock multiplier

11.5

Package

940-pin organic micro-PGA

Sockets

Socket AM2; Socket AM2+

Weight

1.4oz / 39.2g

Introduction date

Apr 28, 2008

Price at introduction

$175

Architecture / Microarchitecture

Microarchitecture

K10

Platform

Perseus

Processor core

Toliman

Core stepping

DR-B3

CPUID

100F23

Manufacturing process

0.065 micron silicon-on-insulator (SOI) technology

Die

285mm2

Data width

64 bit

The number of CPU cores

3

The number of threads

3

Floating Point Unit

Integrated

Level 1 cache size

3 x 64 KB 2-way set associative instruction caches; 3 x 64 KB 2-way set associative data caches

Level 2 cache size

3 x 512 KB 16-way set associative caches

Level 3 cache size

2 MB 32-way set associative shared cache

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSE4a; AMD64 / AMD 64-bit technology; EVP / Enhanced Virus Protection; AMD-V / AMD Virtualization technology

Low power features

Cool'n'Quiet 2.0; CoolCore technology; Independent Dynamic Core Technology; Dual Dynamic Power Management; Core C1 and C1E states; Package S1, S3, S4 and S5 states

Integrated peripherals / components

Integrated graphics

None

Memory controller

The number of controllers: 1
Memory channels: 2
Channel width (bits): 72
Supported memory: DDR2-1066
DIMMs per channel: up to 2
Maximum memory bandwidth (GB/s): 17.1

Other peripherals

HyperTransport 3.0 technology

Electrical / Thermal parameters

V core

1.25V

V NorthBridge

1.25V

Maximum operating temperature

55°C - 71°C

Thermal Design Power

95 Watt

Notes on AMD Phenom X3 8600B (rev. B3)

Business class processor

On socket AM2+ platforms in the minimum performance state the processor runs at 1150 MHz / 1.05 Volt core voltage, and has TDP 48.7 Watt

On socket AM2 platforms in the minimum performance state the processor runs at 1150 MHz / 1.25 Volt core voltage, and has TDP 72.2 Watt
