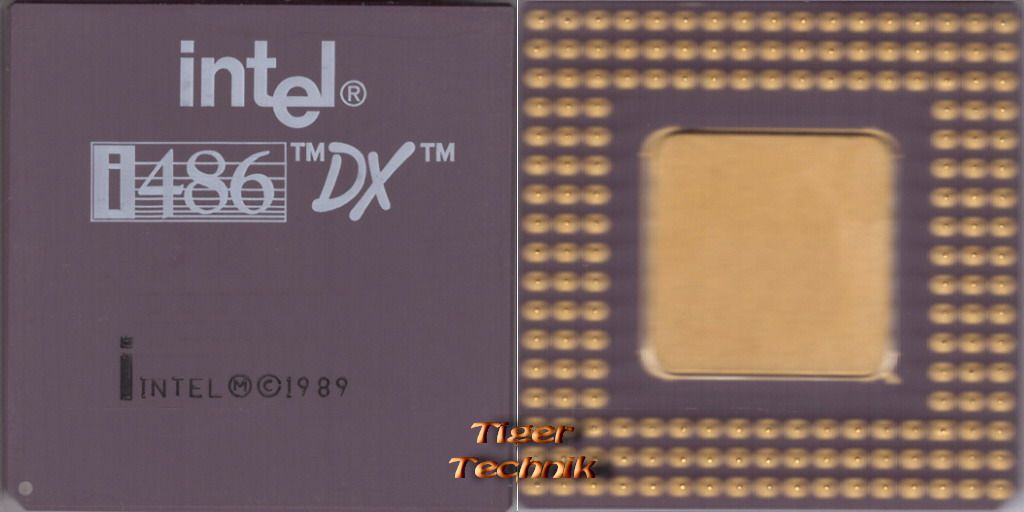

CPU Prozessor Intel i486 DX SX729 33 MHz FSB Sockel 3 A80486DX-33 Retro* c618

Technische Daten

Type

CPU / Microprocessor

Family

Intel 80486

Part number

A80486DX-33 is an OEM/tray microprocessor

Frequency (MHz)

33

Bus speed (MHz)

33

Clock multiplier

1

Package type

168-pin Pin Grid Array; 1.75" x 1.75" (4.45 cm x 4.45 cm)

Socket

3

Architecture / Microarchitecture / Other

CPUID

404

Core voltage (V)

5

Microarchitecture

i486

Manufacturing process

1 micron CHMOS IV technology; 0.8 micron CHMOS V technology; 1.2 million transistors

Data width

32 bit

Level 1 cache size

8 KB 4-way set associative unified code and data cache

Physical memory

4 GB

Virtual memory

64 TB

On-chip peripherals

Memory management unit

Electrical / Thermal parameters

V core

5V ± 5%

Minimum / Maximum operating temperature

0°C - 85°C

Minimum / Typical / Maximum power dissipation

N/A / 3.5 Watt / 4.73 Watt

0.4 Watt (Stop Grant mode) / 2.5 Watt / 3.31 Watt (CHMOS V technology)

Notes on sSpec SX729

The processor does not include SL features.

Processor does not support write-back.

The processor requires 1x external clock.
