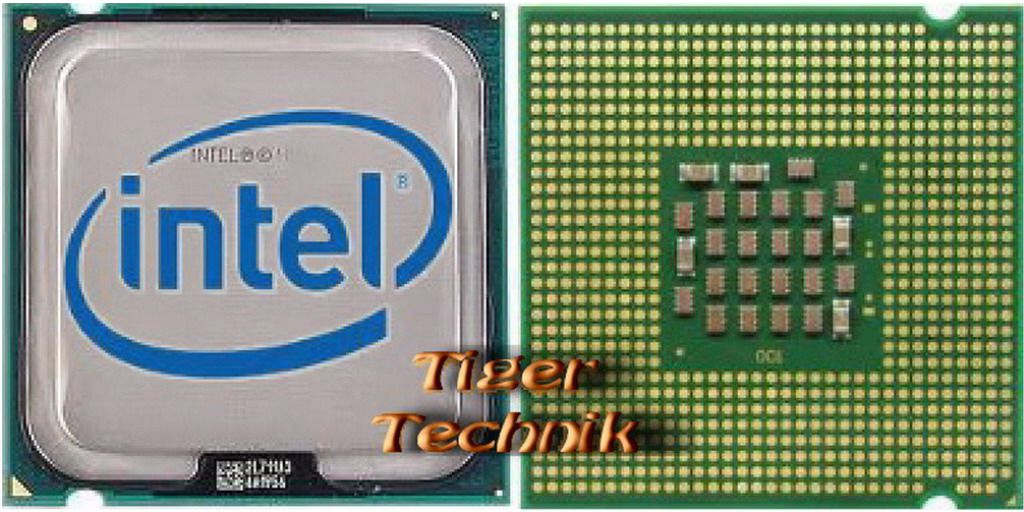

CPU Prozessor Intel Pentium Dual Core E2220 SLA8W 2x 2.4GHz FSB800 1M EM64T*c582

Technische Daten

Type

CPU / Microprocessor

Family

Intel Pentium Dual-Core

Processor number

E2220

Part number

HH80557PG0561M; BX80557E2220; BXC80557E2220

Frequency (GHz)

2.4

Bus speed (MHz)

800

Clock multiplier

12

Package type

775-land FC-LGA6

Socket type

Socket 775 (LGA775)

Architecture / Microarchitecture / Other

CPUID

06FDh

Core stepping

M0

Processor core

Allendale

Manufacturing technology (micron)

0.065

Number of cores

2

L2 cache size (MB)

1

Features

EM64T technology; Enhanced SpeedStep technology; Execute disable bit; Extended Halt state; Extended Stop Grant state; Thermal Monitor 2

Core voltage (V)

0.85 - 1.5

Case temperature (°C)

73.3

Thermal Design Power (Watt)

65

Notes on sSpec SLA8W

The processor supports the 775_VR_CONFIG_06 guidelines for processors with TDP up to 65 Watt, and Iccmax up to 75A.

The part is discontinued. Last order date for OEM and boxed processors is October 9, 2009. Last shipment date for boxed processors is January 8, 2010. Last shipment date for OEM processors is June 4, 2010.
