Products description

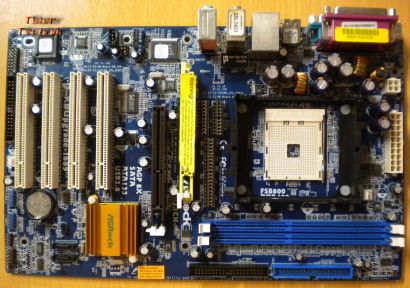

ASRock K8Upgrade-1689 Rev 1.02 Mainboard + Blende
Sockel 754 mit Future CPU Port für CPU Upgrade-Karten(nicht im Lieferumfang)
Technische Daten
CPU
- Socket 754 for AMD 64-bit Athlon 64 and Sempron processor
- Supports Hyper-Transport Technology
- Supports AMD Cool 'n' Quiet Technology
- FSB 800MHz / 1.6GT/s
Chipset
- Integrated Single Chip: ULi(ALi) 1689 (Capable Of Supporting FSB1000MHz / 2GT/s CPU)
Memory
- 2 x DDR DIMM slots
- Supports DDR400 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio
- Realtek 850 7.1 channel AC'97 audio codec
LAN
- Realtek RTL8201 10/100 Ethernet LAN PHY
- 802.3u, WOL supported
- Supports PXE
Slots
- ASRock Future CPU Port(Yellow-colored): Flexible Socket 939 upgrade interface for ASRock 939CPU Board
- 1 x AGP8X/4X slot , 1.5V
- 4 x PCI slots( PCI 2.2 compliance)
Connector
- 2 x SerialATA 1.5Gb/s connectors supports RAID,0,1,JBOD
- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin ATX 12V power connector
- IDE LED connector
- CD audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin header
Rear Panel I/O
ASRock 8CH I/O
- 4 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 2 x Audio ports ( Line In/Out, Mic In)
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless control
- CPU Multiplier
- ASRock U-COP
- Boot Failure Guard (B.F.G)
Form Factor
- ATX, 305mm x191mm
OS
- Microsoft® Windows® 98SE/ME/2000/XP/XP 64-bit compliant
Certifications
- FCC, CE
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
