Products description

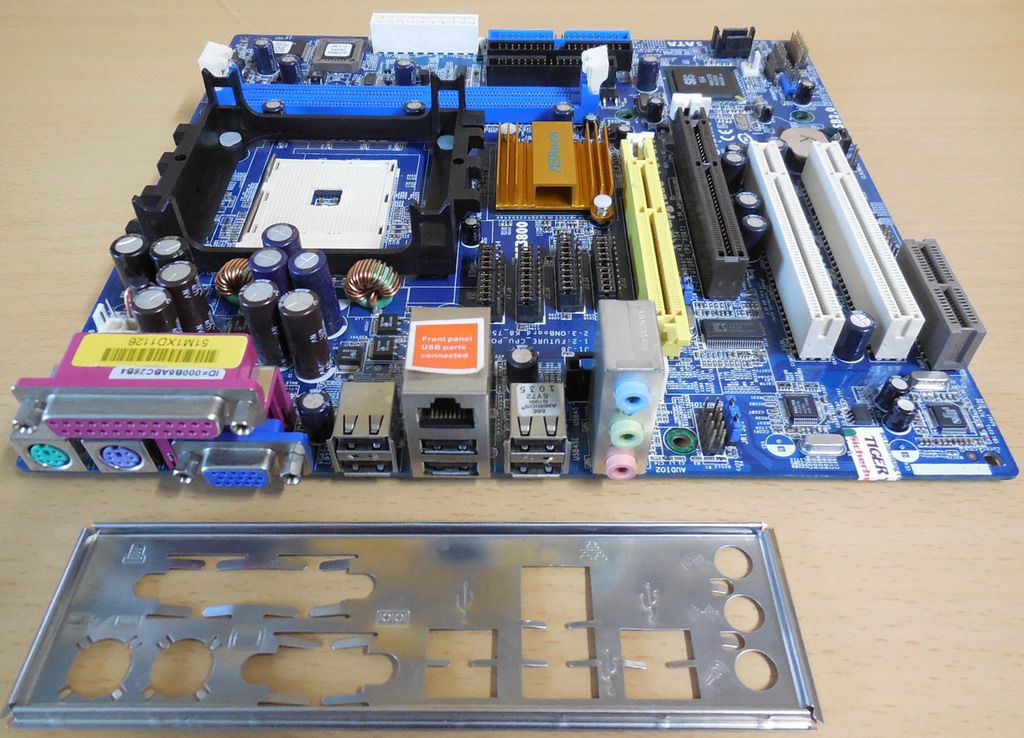

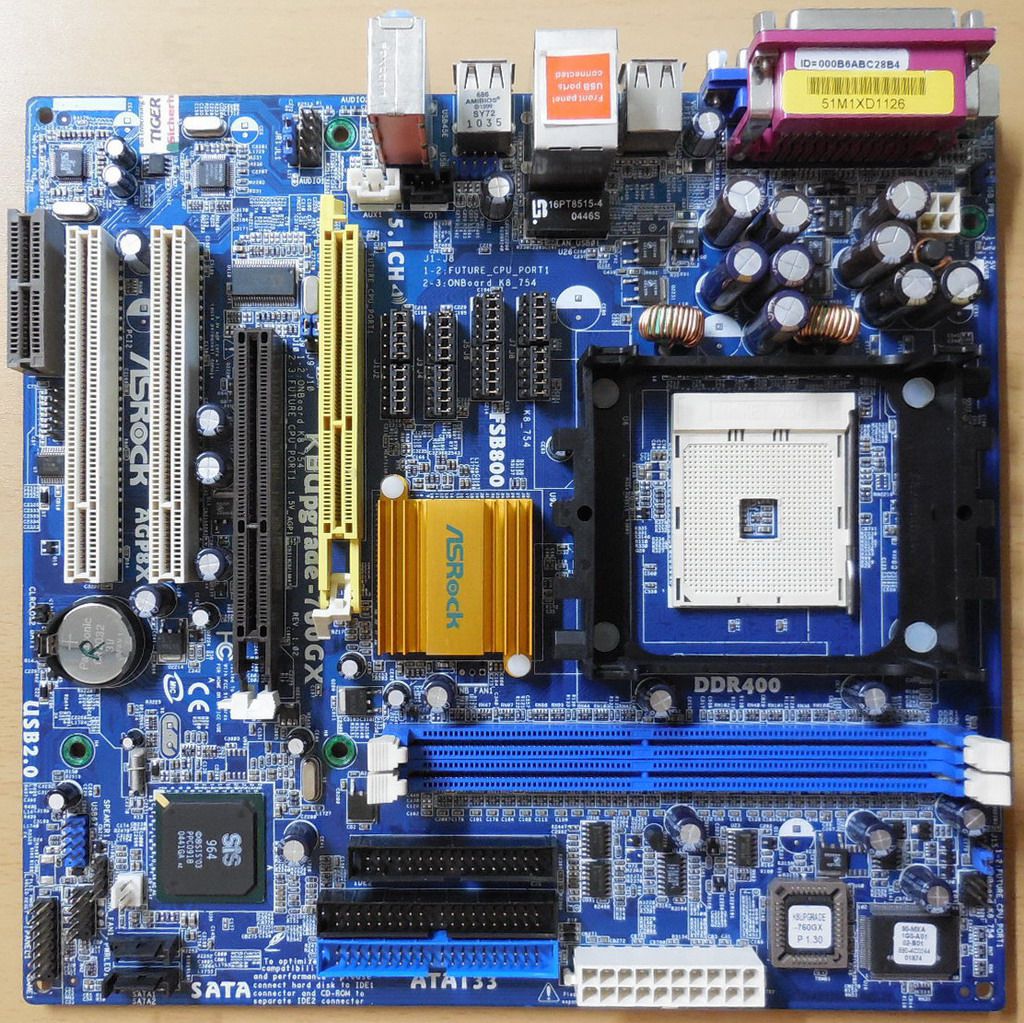

ASRock K8Upgrade-760GX Rev 1.02 Mainboard + Blende Sockel 754 AGP 8X VGA LAN Audio
Technische Daten
CPU
Socket 754 for AMD 64-bit Athlon 64 and 32-bit Sempron processor
Supports Hyper-Transport Technology
Supports AMD's Cool 'n' Quiet Technology
FSB 800MHz / 1.6GT/s
Chipset
SiS 760GX Northbridge + SiS 964 Southbridge
Memory
DIMM slots: 2
Max. capacity of system memory: 2GB
Supports DDR400 non-ECC, un-buffered memory
Graphics
Integrated Mirage2 graphics in SiS760GX chipset
supports DirectX8.1
upto 128MB shared video memory
Audio
CMedia 9761 6channel AC'97 audio codec
LAN
Realtek RTL8201 10/100 Ethernet LAN PHY
802.3u, WOL supported
Supports PXE
Slots
ASRock Future CPU Port (Yellow-colored): Flexible Socket939 upgrade interface for ASRock 939CPU Board (nicht im Lieferumfang)
1 x AGP8X/4X slot, 1.5V
2 x PCI slots (PCI2.3 compliance)
1 x AMR slot
Connectors / Switches
2 x SerialATA 1.5Gb/s connectors supports RAID,0,1,JBOD,SATA_HDD Hotplug
2 x ATA 133/100/66 IDE connectors (supports 4 x IDE devices)
1 x Floppy connector
1 x 3-pin CPU FAN connector
1 x 3-pin CHASSIS FAN connector
1 x 20 pin ATX power connector
1 x 4 pin ATX 12V power connector
1 x CD in header
1 x AUX in header
1 x Front Panel connector
1 x Front panel audio connector
1 x Internal Speaker connector
1 x USB 2.0 port pin header
1 x shared USB 2.0 port pin header (Shared with USB4&5)
1 x Game/MIDI port pin header
1 x COM port header
1 x CMOS Jumper
1 x PS2-USB_PW1 Jumper
7 x CPU Socket Jumpers
1 x IR header
Rear Panel I/O
ASRock I/O Plus
6 x USB2.0 ports
1 x RJ45 LAN port
1 x VGA
1 x PS2 Keyboard connector
1 x PS2 Mouse connector
1 x Parallel port (LPT1)
1 x Audio port (Line In/Out, Mic In)
Unique Feature
Hybrid Booster CPU Frequency Stepless control; ASRock U-COP; Boot Failure Guard (B.F.G); CPU Multiplier; AGP/PCI frequency fix
BIOS
2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Form Factor
Micro ATX; ca. 244mm x 229mm
OS
Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications
FCC, CE
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
