Products description

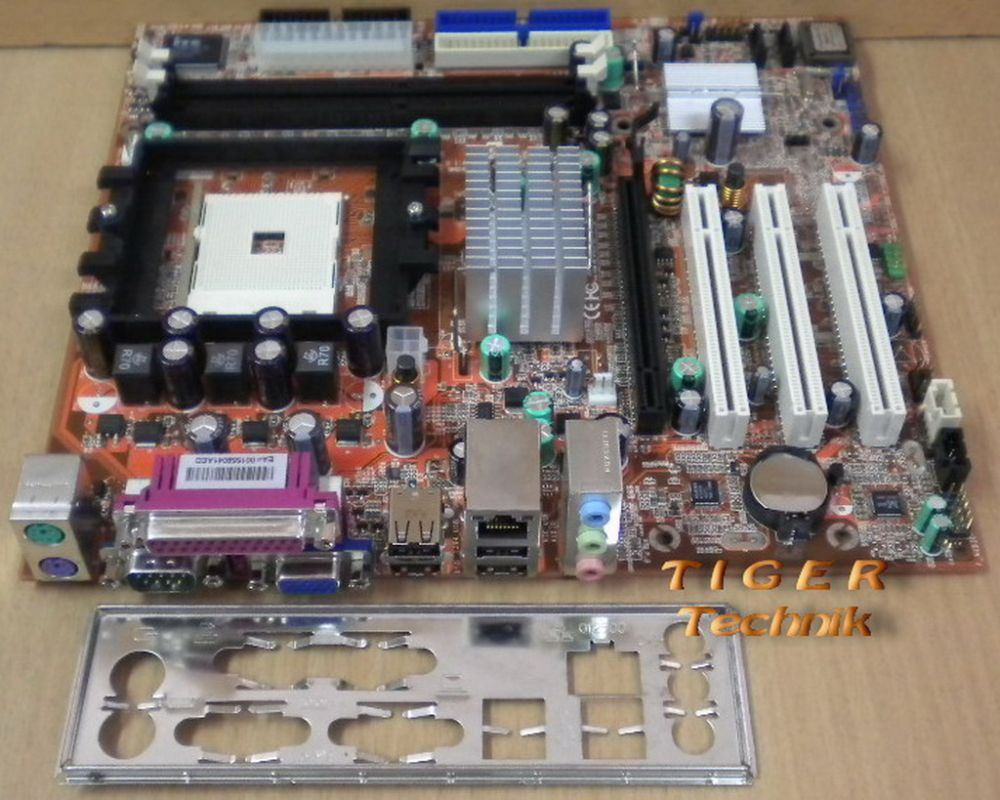

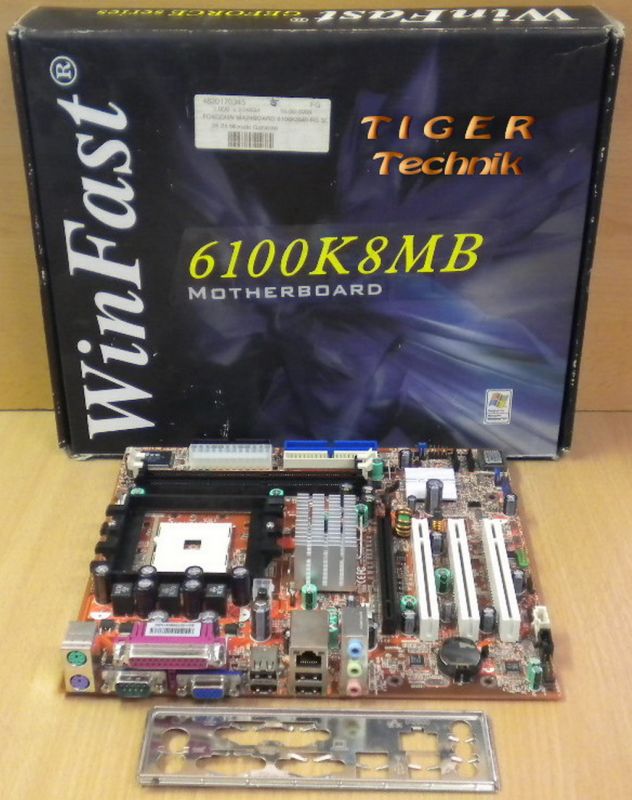

Foxconn Winfast 6100K8MB Rev 1.0 Mainboard + Blende
in OVP Sockel 754 PCIe
Technische Daten
Processor: Socket 754 for AMD Athlon™ 64 / Sempron™ processors
Chipset: GeForce 6100+nForce 410
Front Side Bus: Up to 1600 MT/s HyperTransport™
Memory: 2x Single channel DDR400, support up to 2GB
VGA on Die: Integrated
Expansion Slots: 1 x PCIe x16; 3 x PCI slots
IDE: 2x ATA133; Serial ATA(SATA)/RAID; Supports 2 Serial ATA devices, RAID 0, RAID 1
Audio: 5.1 channel (Realtek ALC653)
LAN: RTL8201BL; 10/100 PHY
Back Panel I/O Ports
1 x PS/2 Keyboard; 1 x PS/2 Mouse; 1 x Parallel; 1 x VGA; 1 x RJ45; 4 x USB 2.0; 1 x COM; 1 set 5.1 channel Audio Jack (3 jacks)
Internal I/O Connectors
1 x CD IN; 1 x COM2 header; 2 x USB 2.0 headers (supports 4 ports); 1 x S/PDIF out header; 1 x IrDA header; 1 x AUX IN; 1 x Speaker, 1 x Front panel; 1 x Front audio header
BIOS Features: LPC 4MB, SuperUtilities
Standards/Manageability: USB2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface, PC2001
Special Features: Performance optimization, special cooling, voltage adjustment, CnQ, HDA, nTune, support SuperBIOS, SuperBoot, SuperBIOS-Protect, SuperRecovery
Form Factor: Micro ATX (9.6” x 8.6”)
Lieferumfang
Das Mainboard inkl. Blende, 2x IDE Kabel in der OVP * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
