Products description

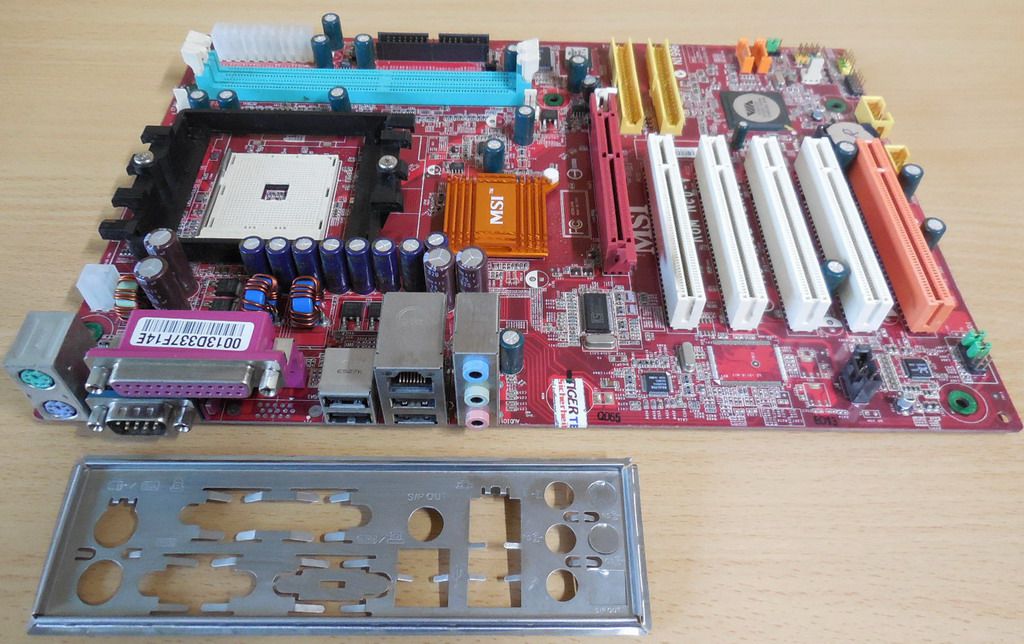

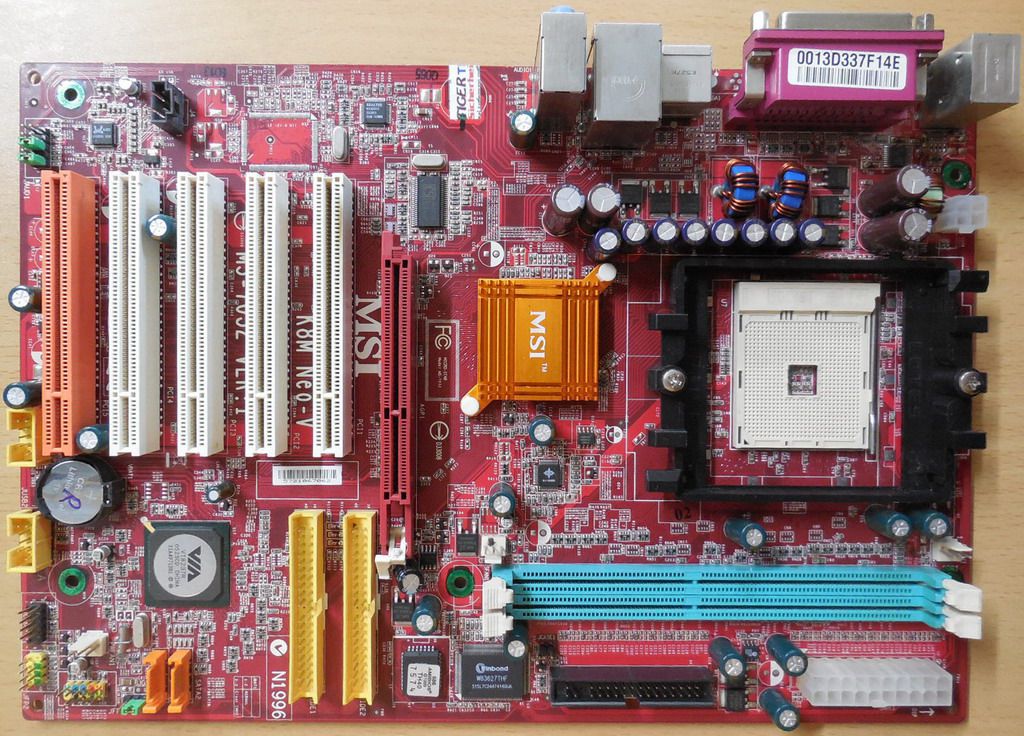

MSI K8M Neo-V MS-7032 Ver1 Mainboard + Blende Sockel 754 AGP 8X SATA DDR IDE
Technische Daten
CPU
Supports 64-bit AMD® K8 Athlon64 processor (Socket 754)
Supports up to 2800+, 3000+, 3100+, 3200+, 3400+, 3700+, or higher CPU
Chipset
VIA® K8T800 / K8M800 chipset
- HyperTransportTM connection to AMD Athlon64 processor
- 8 or 16 bit control/address/data transfer both directions
- 800/600/400/200 MHz “Double Data Rate” operation both direction
- AGP v3.0 compliant with 8x transfer mode
VIA®VT8237/8237R chipset (487 BGA)
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 33/66/100/133 master mode PCI EIDE controller
- Supports 2 Serial ATA RAID 0/1
- Supports 8 USB2.0 ports
Main Memory
Supports DDR266/333/400 DDR SDRAM for two 184-pin DDR DIMMs
Supports a maximum memory size of 2GB
Slots
1 x AGP slot ((Accelerated Graphics Port 3.0 specification compliant)
5 x 32-bit Master 3.3v / 5v PCI Bus slots
On-Board IDE
An IDE controller on the VIA® VT8237/8237R chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes. Can connect up to 4 IDE devices.
Serial ATA/150 controller integrated by VT8237/8237R
Up to 150MB/s transfer rate. Can connect up to two Serial ATA drives with RAID0 & RAID1.
REAR PANEL I/O
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Parallel port
1 x Serial port (COM1)
4 x USB2.0 ports
1 x RJ45 LAN connector
Audio jacks for microphone, line-in and line-out
INTERNAL I/O CONNECTORS & HEADERS
20-pin ATX Power Supply connector
4-pin ATX 12V connector
1 x FDD connector
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x D-Bracket 2 connector
1 x Clear CMOS Jumper
1 x Chassis Intrusion connector
2 x Front panel switch/LED header
1 x Front audio panel header
1 x System Fan header (3pin)
1 x CPU Fan header (3pin)
1 x Power Fan header (3pin)
Audio
6 channels software audio codec RealTek ALC655.
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance requirement.
LAN
10/100Mbps Realtek® 8201CL
integrated Fast Ethernet MAC and PHY in one chip.
compliant with PCI V2.2.
Support ACPI Power Management.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor: 305 mm (L) x 210 mm (W).
Mounting
6 mounting holes.
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
