Products description
MSI K8T Neo MS-6702 Ver 1.0 K8T800
AMD Sockel 754 Mainboard mit Blende
Technische Daten
CPU
Supports 64-bit AMD® Athlon64 processor (Socket 754)
Supports up to 3200+, 3400+, or higher CPU
Chipset
VIA® K8T800 chipset
- HyperTransportTM connection to AMD Athlon64 processor
- 8 or 16 bit control/address/data transfer both directions
- 800/600/400/200 MHz “Double Data Rate” operation both direction
- AGP v3.0 compliant with 8x transfer mode
VIA® VT8237 chipset (487 BGA)
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI
- Supports 2 Serial ATA ports
- Supports 8 USB2.0 ports
Memory
Supports DDR266/333/400 DDR SDRAM for three 184-pin DDR DIMMs
Supports a maximum memory size of 2GB
Slots
One (Accelerated Graphics Port) AGP slot.
- AGP 3.0 specification compliant
Five 32-bit Master 3.3v / 5v PCI Bus slots
On-Board IDE
An IDE controller on the VIA® VT8237 chipset provides IDE HDD/CDROM
with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
Can connect up to 4 IDE devices
Serial ATA/150 controller integrated by VT8237
- Up ot 150MB/s transfer rate
- Can connect up to 2 serial ATA devices
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 IrDA connector for SIR/ASKIR/HPSIR
- 1 audio port
- 1 D-Bracket2 pinheader
Audio
6 channels software audio codec RealTek ALC655.
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance requirement.
LAN 10/100/1000Mbps
Realtek 8110C/8110S Dual Layout.
- Integrated Fast Ethernet MAC and PHY in one chio
- Supports 10Mb/s, 100Mb/s and 1000Mb/s (1000Mb/s only for Realtek 8110S)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
ACPI, 1.0a, APM1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WFM 2.0, Overclock, Boot from USB device.
Dimension
ATX Form Factor: 30.5 cm (L) x 24.5 cm (W).
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

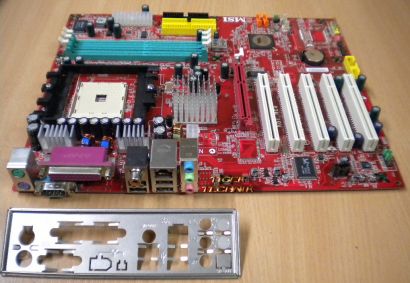

Abbildung ähnlich
