Products description

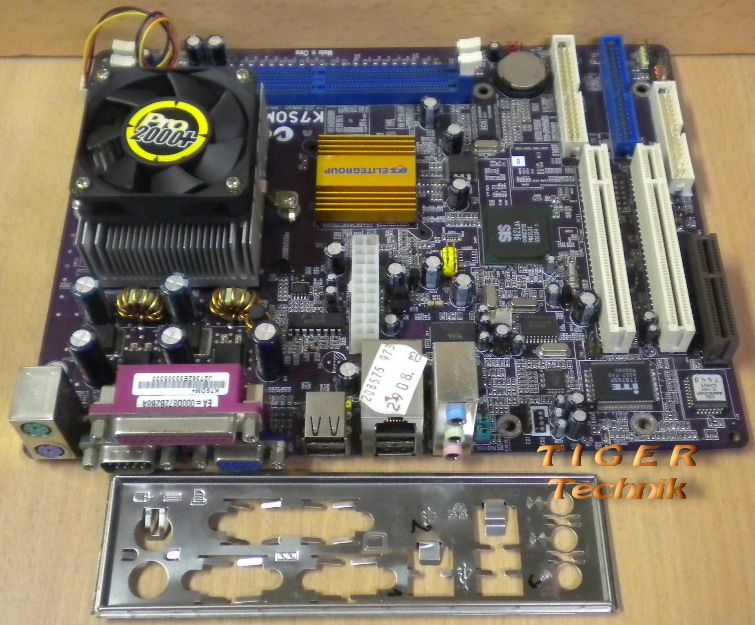

ECS Elitegroup K7SOM+ V. 7.5C Mainboard
AMD Duron CPU onboard + Blende
Technische Daten:
Hersteller: ECS Elitegroup
Model: K7SOM+ V. 7.5C
CPU: AMD Duron™ CPU on board
Chipsatz: Integrated SiS® Real256 2D/3D Graphics
RAM: 2 x 184-pin DDR DIMM socket support up to 1 GB, Support DDR266/200 DDR SDRAM
BIOS: Award BIOS with 2Mb Flash ROM, Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI, Supports ACPI revision 1.0 specification
LAN: VIA® VT6103 10/100 Mbps Fast Ethernet PHY
Interne Steckplätze: 2x PCI 1x CNR
Externe Anschlüsse: 1 x PS/2 keyboard & PS/2 mouse connectors, 4 x USB ports, 1 x RJ45 LAN connector, 1 x VGA port, 1 x Parallel port (LPT), 1 x Serial port (COM1), 1 x Audio port (Line-in, Line-out, Mic-in)
Formfaktor: Micro-ATX (244mm*190mm), 4 Layers
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
