Products description

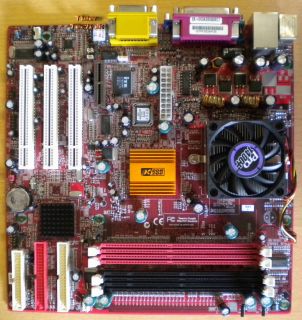

PC Chips M825CLU V5.2C + Blende + CPU AMD Pro 1400+
OnBoard VGA LAN Audio
Technische Daten
Model: PC Chips M825CLU V 5.2
Processor: Onboard AMD Duron 1400+ processor
Chipset: VIA KM266 (NB) & VT8235 (SB)
Memory:
Two 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/200) and -Two DIMM sockets (PC133/PC100)
Maximum: 1GB (Unbuffered Memory)
Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!
Expansion Slots: 3 PCI slots, 1 CNR slot
IDE Controllers: Ultra DMA 66/100/133
Audio: AC '97 Audio Codec; Compliant with AC97 2.1 specification
Video: Integrated Savage 4 2D/3D Video Accelerator, 32MB shared memory
LAN: LAN - MAC integrated in VT8235 & PHY onboard
Rear Panel I/O Ports:
Support Plug and play function
PS/2 keyboard and mouse connectors
Four USB Ports and a LAN connector
One EPP/ECP mode parallel port
One 16550 high-speed serial I/O port
One VGA connector
Audio ports (Mic-in, Line-in, Line-out, CD-in)
Internal I/O Interface:
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133)
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
ATX Power Supply Connector
Ports, headers and others
IrDA header
Extra USB Ports (USB3) (v1.1),USB5 (USB2.0) optional
Front Panel MIC/Line-Out Header
COM2 Header
HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers
CPU and Case Fan headers
Lan Card Wake Up/Wake Up Headers
Form Factor:
microATX (244mm*244mm), 4 Layers
BIOS:
AMI 2Mb Flash EEPROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Support ACPI revision 1.0 specification
Miscellaneous:
KM266 V-Link Host system controller and VT8235 V-Link Client to PCI/LPC bridge
KM266 V-Link Host system controller and VT8235 V-Link Client to PCI/LPC bridge
VIA VT8235 USB2.0 Host Controller
PC I/O - IT8705F
VT8233 includeded 256 byte of CMOS
With CMOS hardware clear jumperLieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
