Products description

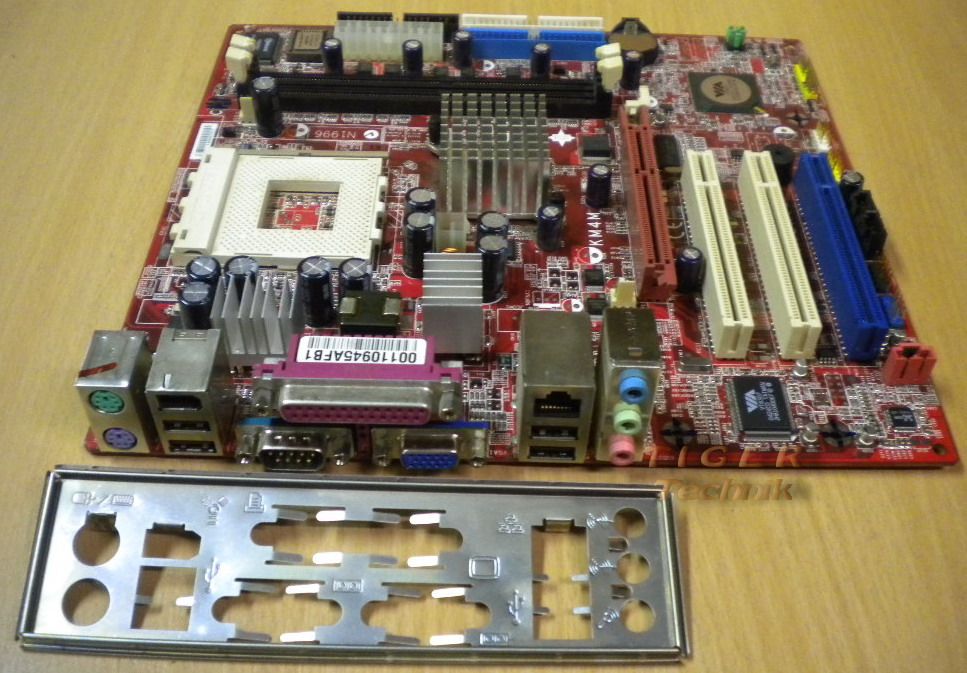

MSI KM4M-L MS-6734 Ver1 Mainboard + Blende
Sockel A 462 FSB333 VGA LAN Audio IEEE1394 Firewire
Technische Daten
CPU
Supports Socket A (Socket-462) for AMD® /Athlon™ XP /Sempron™ processors
Supports AMD Athlon XP Sempron 3000+ @ 166 FSB
(For the latest information about CPU, please visit the MSI Website)
Chipset
VIA® KM400/400A North Bridge
- Supports 200/266/333 MHz front side bus
- Supports DDR200/266/333
- Supports AGP 4X and AGP 8X
VIA® VT8237 South Bridge
- Integrated Direct Sound AC97 audio
- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Integrated USB 2.0 controller supporting 8x USB 2.0 ports
Main Memory
Supports four memory banks using two 184-pin DDR DIMMs
Supports up to 2GB PC1600/2100/2700 DDR SDRAMs
(For the updated supporting memory modules, please visit the MSI Website.)
Slots
1 x AGP (Accelerated Graphics Port) 1.5V 8x/4x slot
3 x 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE
An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66/33 operation modes. Can connect up to four IDE devices
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port and 1 VGA port
- 1 parallel port
- Vertical audio ports
- 1 RJ-45 LAN Jack
- 1 SPDIF output (1 x 3 pin) with housing
- 8 USB2.0 ports (rear *4; front *4)
- 2 IEEE1394 Firewire ports (rear *1; front *1)
Audio
RealTek ALC655
IEEE1394
VIA VT6307 (supports 2 x IEEE1394 connectors)
LAN
VIA VT6103 LAN controller
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor: 9.6 in. (L) x 8.85 in. (W)
Mounting
6 mounting holes
Others
Suspend to RAM/Disk (S3/S4)
PC2001 compliant
WHQL HCT 11.0 compliant
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
