Products description

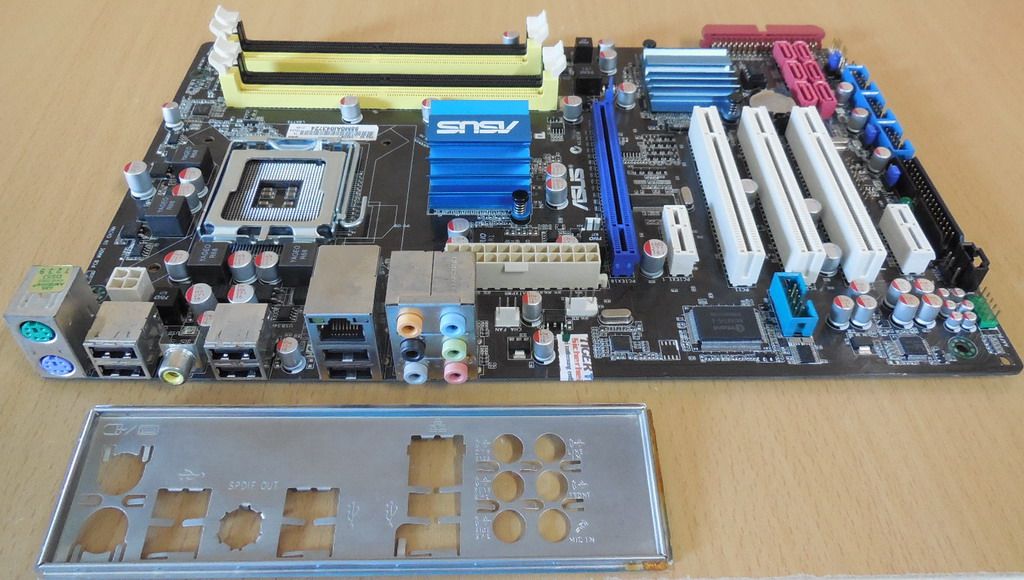

Asus P5Q SE Rev 1.02G Mainboard + Blende Sockel 775 Intel P45 FSB1600 PCIe DDR2 6x SATAII

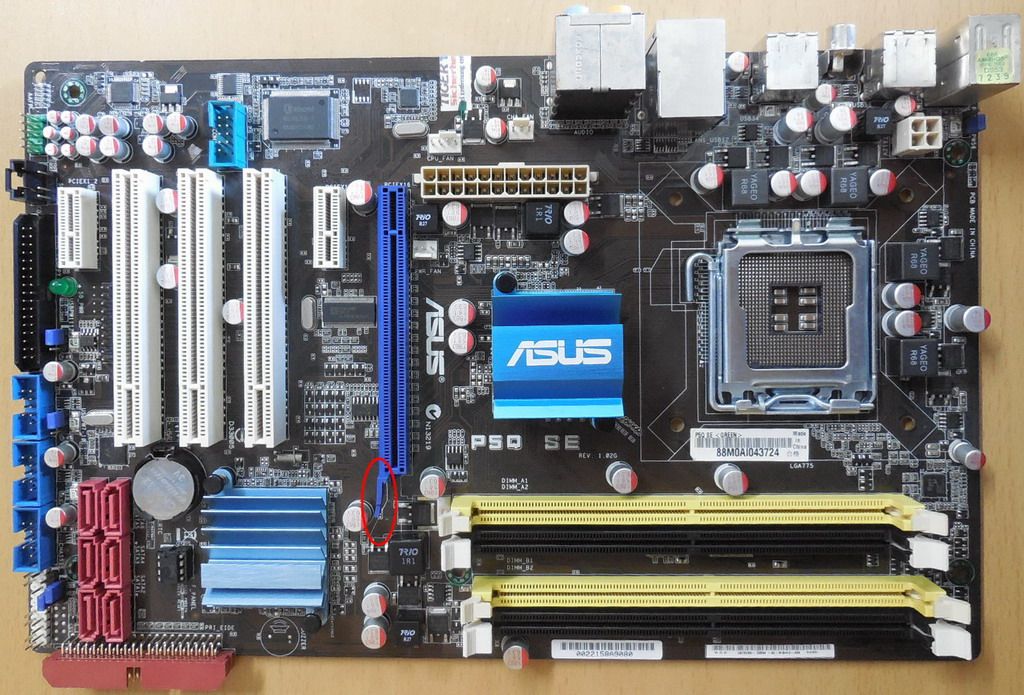

Leider wurde die Grafikkartenhalterung aus Plastik abgebrochen. Siehe hierzu bitte die Bilder. Dies hat jedoch keine technischen Auswirkungen. Dennoch wird das Mainboard hier vergünstigt angeboten!
Technische Daten
CPU
Intel Socket 775 Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® Dual-Core / Pentium® D / Celeron® Dual-Core / Celeron® processors
Compatible with Intel® 05B/05A/06 processors
Chipsatz
P45 / ICH10 with Intel® Fast Memory Access Technology
Front Side Bus
1600 / 1333 / 1066 / 800 MHz
Memory
4 x DIMM, Max. 16 GB, 240-Pin DDR2 1200 / 1066 / 800 / 667 Non-ECC, Un-buffered Memory
Dual Channel memory architecture
Refer to the Website of Asus or the user manual for the Memory QVL(Qualified Vendors Lists).
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe x1
3 x PCI
Storage
by Southbridge 6 x SATA 3.0Gb/s ports
by Marvell® 88SE6102 1 x UltraDMA 133/100/66 for up to 2 PATA devices
LAN
Atheros L1E Gigabit LAN controller featuring AI NET 2
Audio
Realtek ® ALC 1200 8-channel High-Definition Audio CODEC
Supports Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking
Coaxial S/PDIF out port at back I/O
ASUS Noise Filtering
USB
12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features
ASUS Power Saving Solution ASUS EPU-4 Engine; ASUS AI Nap
ASUS Exclusive Feature ASUS Express Gate
ASUS Quiet Thermal Solution ASUS Fan Xpert; ASUS Fanless Design Heatsink Solution
ASUS EZ DIY ASUS Q-Connector, ASUS O.C. Profile, ASUS CrashFree BIOS 3, ASUS EZ Flash 2
Other Features
ASUS MyLogo2
ASUS Exclusive Overclocking Features
Intelligent overclocking tools ASUS AI Booster utility
Precision Tweaker vCore: Adjustable CPU voltage at 0.00625V increment; vDIMM: 5-step DRAM voltage control
SFS (Stepless Frequency Selection) FSB tuning from 200MHz to 800 MHz at 1MHz increment; PCI Express frequency tuning from 100MHz to 180MHz at 1 MHz increment
Overclocking protection ASUS C.P.R. (CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Coaxial)
1 x LAN RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector (4-pin)
1 x Chassis Fan connector (3-pin)
1 x Power Fan connector (3-pin)
1 x Front panel audio connector (AAFP)
1 x S/PDIF Out Header
1 x Chassis Intrusion connector
1 x TPM connector
1 x CD audio in connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel Q-Connector
1 x PS2_USBPW56 Jumper
1 x PS2_USBPW7-10 Jumper
1 x PS2_USBPW1112 Jumper
1 x CLRTC Jumper
BIOS
8 Mb Flash ROM; AMI BIOS; PnP; DMI 2.0; WfM 2.0; SM BIOS 2.3; ACPI 2.0a; ASUS EZ Flash 2; ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
ATX Form Factor; 12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
