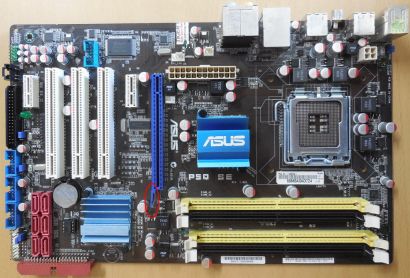

Asus P5Q SE Rev 1.02G Mainboard +Blende Sockel 775 Intel P45 FSB1600 DDR2* m1126

Asus P5Q SE Rev 1.02G Mainboard + Blende Sockel 775 Intel P45 FSB1600 PCIe DDR2 6x SATAII

Leider wurde die Grafikkartenhalterung aus Plastik abgebrochen. Siehe hierzu bitte die Bilder. Dies hat jedoch keine technischen Auswirkungen. Dennoch wird das Mainboard hier vergünstigt angeboten!

Technische Daten

CPU

Intel Socket 775 Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® Dual-Core / Pentium® D / Celeron® Dual-Core / Celeron® processors

Compatible with Intel® 05B/05A/06 processors

Chipsatz

P45 / ICH10 with Intel® Fast Memory Access Technology

Front Side Bus

1600 / 1333 / 1066 / 800 MHz

Memory

4 x DIMM, Max. 16 GB, 240-Pin DDR2 1200 / 1066 / 800 / 667 Non-ECC, Un-buffered Memory

Dual Channel memory architecture

Refer to the Website of Asus or the user manual for the Memory QVL(Qualified Vendors Lists).

When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe 2.0 x16

2 x PCIe x1

3 x PCI

Storage

by Southbridge    6 x SATA 3.0Gb/s ports

by Marvell® 88SE6102    1 x UltraDMA 133/100/66 for up to 2 PATA devices

LAN

Atheros L1E Gigabit LAN controller featuring AI NET 2

Audio

Realtek ® ALC 1200 8-channel High-Definition Audio CODEC

Supports Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking

Coaxial S/PDIF out port at back I/O

ASUS Noise Filtering

USB

12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS Power Saving Solution       ASUS EPU-4 Engine; ASUS AI Nap

ASUS Exclusive Feature       ASUS Express Gate

ASUS Quiet Thermal Solution       ASUS Fan Xpert; ASUS Fanless Design Heatsink Solution

ASUS EZ DIY       ASUS Q-Connector, ASUS O.C. Profile, ASUS CrashFree BIOS 3, ASUS EZ Flash 2

Other Features

ASUS MyLogo2

ASUS Exclusive Overclocking Features

Intelligent overclocking tools       ASUS AI Booster utility

Precision Tweaker       vCore: Adjustable CPU voltage at 0.00625V increment; vDIMM: 5-step DRAM voltage control

SFS (Stepless Frequency Selection)       FSB tuning from 200MHz to 800 MHz at 1MHz increment; PCI Express frequency tuning from 100MHz to 180MHz at 1 MHz increment

Overclocking protection       ASUS C.P.R. (CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x S/PDIF Out (Coaxial)

1 x LAN RJ45 port

6 x USB 2.0/1.1

8-channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

6 x SATA connectors

1 x CPU Fan connector (4-pin)

1 x Chassis Fan connector (3-pin)

1 x Power Fan connector (3-pin)

1 x Front panel audio connector (AAFP)

1 x S/PDIF Out Header

1 x Chassis Intrusion connector

1 x TPM connector

1 x CD audio in connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x System Panel Q-Connector

1 x PS2_USBPW56 Jumper

1 x PS2_USBPW7-10 Jumper

1 x PS2_USBPW1112 Jumper

1 x CLRTC Jumper

BIOS

8 Mb Flash ROM; AMI BIOS; PnP; DMI 2.0; WfM 2.0; SM BIOS 2.3; ACPI 2.0a; ASUS EZ Flash 2; ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

ATX Form Factor; 12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
