Products description
MSI KT6 Delta MS-6590 Ver. 2 Sockel 462
Mainboard + Blende
Technische Daten:
CPU
Supports Socket A (Socket-462) for AMD® Athlon™/Athlon™ XP /Duron™
processors.
Supports up to 3200+.
Chipset
VIA® Apollo KT600 chipset
- FSB @200/266/333/400 MHz.
- Supports DDR200/266/333/400 DDR SDRAM.
-AGP 8X and PCI advanced high performance memory controller.
VIA® VT8237 chipset
- Ultra DMA 66/100/133 master mode EIDE controller.
- Integrated dual channel native Serial ATA/RAID controller supplying
150MB/s supporting for RAID 0 and RAID 1
- ACPI & PC2001 compliant enhanced power management.
- Supports 8 USB 2.0 ports
Main Memory
Supports six memory banks using three 184-pin 200/266/333/400 DDR
SDRAMs.
DDR400 memory support maximum 4 banks.
Supports up to 3GB memory size.
As to the “DDR 400/PC3200 Qualified Memory Test list” of KT6 Delta,
please visit MSI website (http://www.msi.com.tw) and search the mainboard
KT6 Delta for details.
Slots
One AGP (Accelerated Graphics Port) slot.
- Supports AGP 3.0.
Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to four Ultra ATA drives.
Serial ATA/150 controller integrated in VT8237.
- Up to 150MB/sec transfer speeds.
- Can connect up to two Serial ATA drives.
- Supports RAID 0 or RAID 1
Promise 20378 On-Board (Optional)
Supports Ultra ATA, Serial ATA, Ultra ATA RAID 0 or 1 , Serial ATA RAID
0 or 1, Ultra/Serial ATA RAID 0+1 supported.
Connect up to 2 Serial ATA devices and 2 Ultra ATA 133 devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 serial ports (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 IrDA connector for SIR/ASKIR/HPSIR
- 1 audio port
- 8 USB 2.0 ports (Rear * 6/ Front * 2)
Audio
6 channels software audio codec C-Media 9739A.
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
- Can support SPDIF Out via optional S-Bracket.
LAN 10/100/1000MBps (Optional)
Broadcom 4401/5788
- Integrated Gigabit Ethernet MAC and PHY transceiver, auto-negotiation operation.
- Supports single-port 10MB/s, 100MB/s (for 4401) or 1000MB/s (for 5788)
BAST-T application.
- Compliance with PCI v2.2 and LAN on Motherboard (LOM) standard.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
ACPI, 1.0a, APM1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WFM 2.0, Overclock,
Boot from USB device.
Dimension
h ATX Form Factor: 30.5 cm (L) x 23.5 cm (W).
Mounting
h 6 mounting holes.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

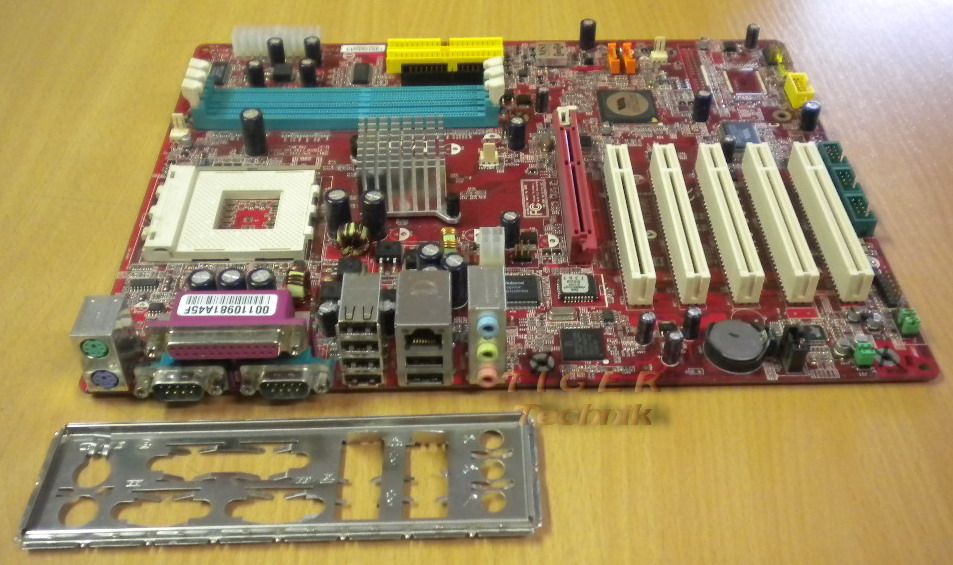

Abbildung ähnlich
