Products description

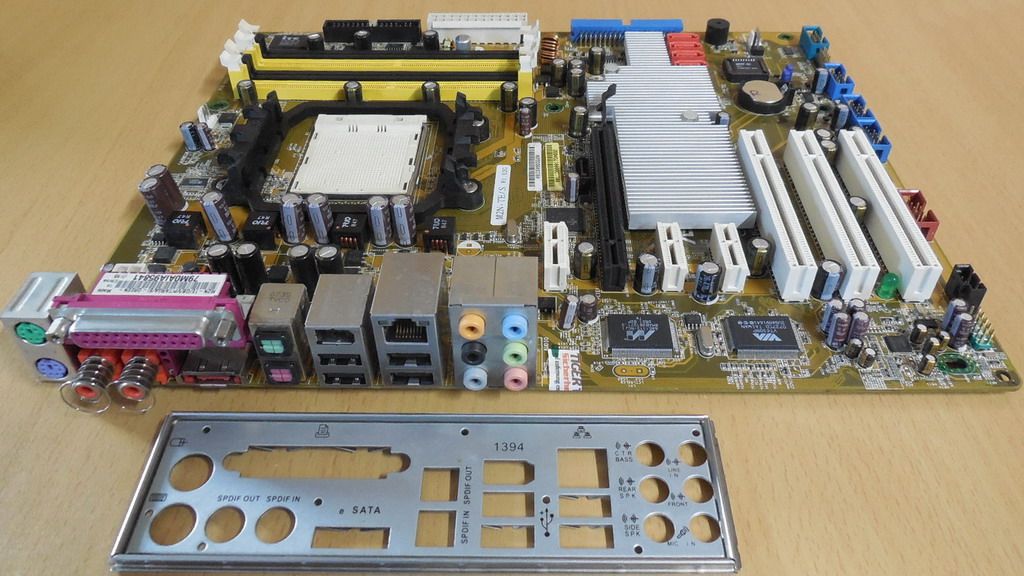

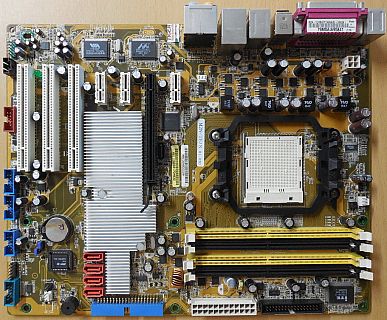

Asus M2N-TE/S Rev 1.02G Retro Mainboard + Blende AMD Sockel AM2 DDR2 PCIe
Technische Daten
Prozessor
Socket AM2 for AMD Athlon™ 64 X2 / AMD Athlon™ 64 / AMD Athlon™ 64 FX / AMD Sempron™ processors
Supports AMD Cool ‘n’ Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
Chipsatz
NVIDIA® nForce® MCP 55S
System bus
2000 / 1600 MT/s
Arbeitsspeicher
4 x 240-pin DIMM sockets support unbuffered, non-ECC DDR2 800/667/533 MHz memory modules
Supports up to 8 GB system memory
Dual-channel memory architecture
Storage
1 x IDE connector for up to two Ultra DMA 133/100 devices
4 x Serial ATA 3.0 Gb/s connectors (RAID 0, 1 and JBOD configurations spanning across Serial ATA drives via the onboard NVIDIA® MediaShield™ RAID controller)
Audio
SoundMAX® ADI AD1988B 8-channel CODEC
Supports Jack-Sensing, Enumeration, Multi-Streaming and Jack-Retasking Technology
Optical and Coaxial S/PDIF In/Out interface
LAN
Gigabit LAN controllers NVIDIA® nForce® MCP55S built-in Gigabit LAN with external Marvell® PHY
USB
Supports up to 10 USB 2.0/1.1 ports (6 at mid-board, 4 on the rear panel)
VIA 6308 IEEE 1394 controller
2 x IEEE 1394a connectors (1 at mid-board, 1 at the rear panel)
Erweiterungssteckplätze
1 x PCI Express™ x16 slots at x16, x8 speed
3 x PCI Express™ x1 slots
3 x PCI slots
Interne I/O Anschlüsse
3 x USB 2.0 connectors support six additional USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector for two devices
4 x Serial ATA connectors
1 x 3-Pin CPU fan connector
2 x 3-Pin Chassis fan connectors
1 x IEEE 1394a connector
1 x COM port connector
1 x Chassis intrusion connector
1 x Front panel audio connector
1 x CD audio in connector
1 x 24-pin EATX power connector
1 x 4-pin ATX 12V CPU power connector
1 x Instant on header
1 x Buzzer
1 x Front panel connector
1 x Clear CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x e-SATA port
1 x IEEE 1394a port
2 x Optical S/PDIF IN/OUT ports
2 x Coaxial S/PDIF IN/OUT ports
4 x USB 2.0/1.1 ports
1 x LAN RJ-45 port
1 x Parallel connector
8-channel Audio ports
BIOS
4 Mb AWARD BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 2.3
Manageability
WOL by PME, WOR by PME, Chassis intrusion, PXE
Formfaktor
ATX form factor; 12 in x 9.6 in (ca. 30.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
