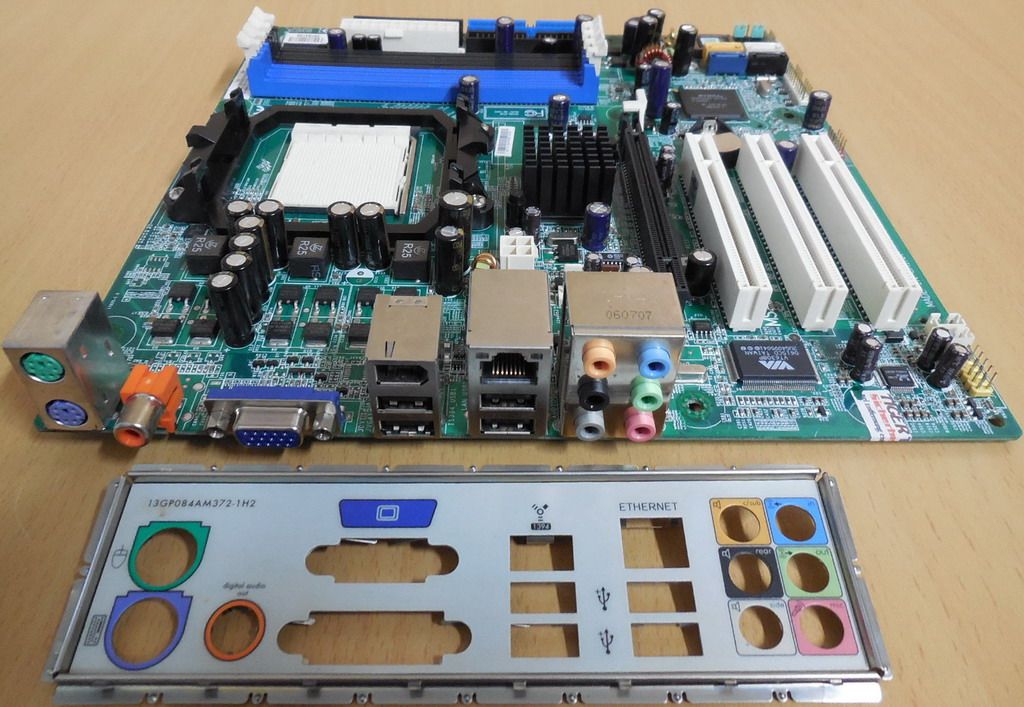

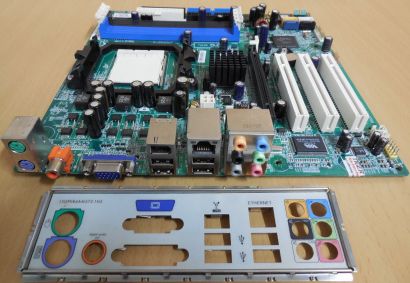

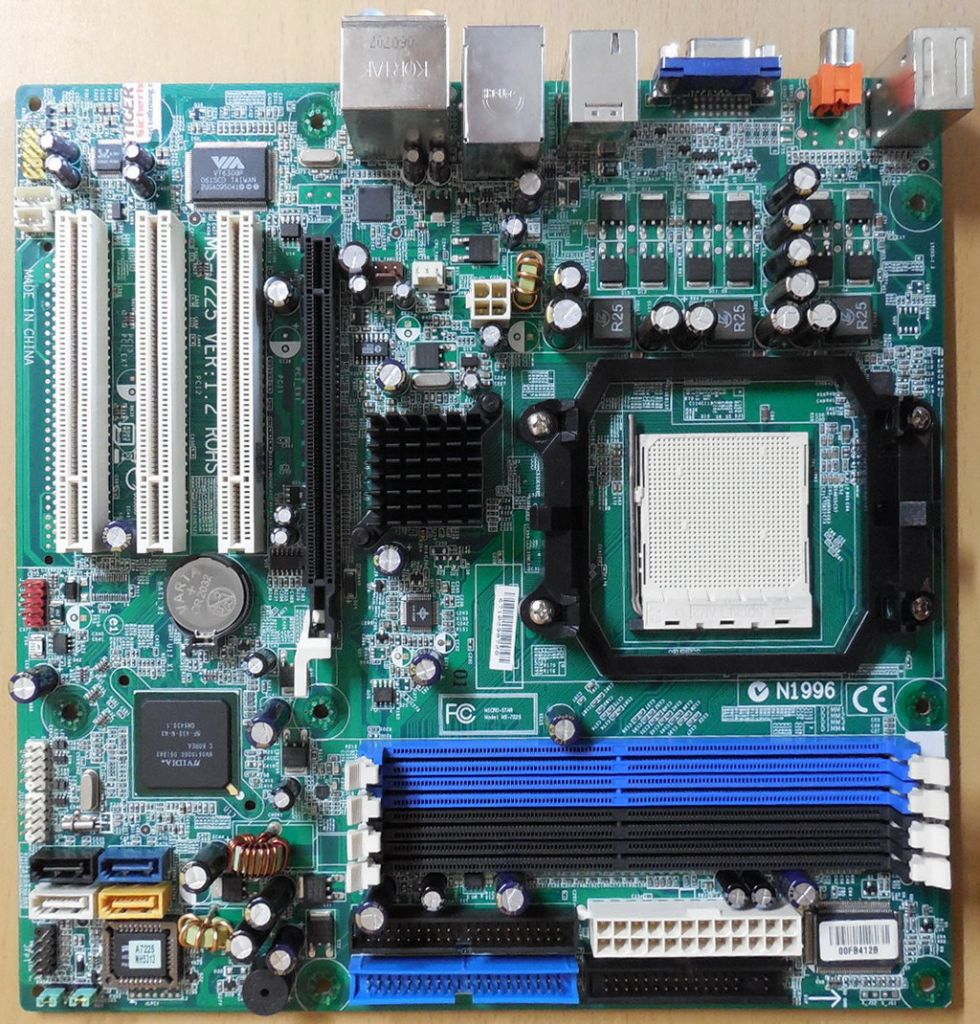

HP NashM-GL8E 5188-6234 Mainboard MSI MS-7225 Ver 1.2 Sockel AM2 DDR2 VGA PCIe
Technische Daten
Marke HP
HP P/N 5188-6234
HP Model NashM-GL8E
Hersteller MSI
Model MS-7225 Ver 1.2
Sockel AMD Sockel AM2
FSB 2000 MT/s or 1600MT/s (determined by processor)
Prozessor AMD Athlon 64 / Athlon 64 X2 up to 5000+ / AMD Sempron processors
Chipset GeForce 6150 LE chipset
Memory 4 x 240-Pin DDR2-RAM-Steckplätze, PC2-4200 / PC2-5300 DDR2 DIMMs, single-sided or double-sided non-ECC memory only, unbuffered 1.8V; (Max 4GB); Dual-Channel unterstützt
Steckplätze 1 x PCI-Express x16; 3 x PCI
VGA integriert
Audio Built-in ALC883 8-Channel High Definition Audio Codec
LAN Marvell® 88EC031 Fast Ethernet LAN solution 10/100 Ethernet
Anschlüsse Intern
4 x SATA I 1.5Gb/s Connectors
2 x PATA Connectors
1 x Floppy Drive Connector
2 x Front USB2.0 Connectors
1 x Front Audio Connector
1 x Front Panel Connector
1 x Buzzer
1 x IEEE 1394a Connector
1 x SPDIF Output Connector
1 x JAUX1 Connector
1 x 3-Pin CPU FAN Connector
1 x 3-Pin SYSTEM FAN Connector
1 x PSWD Jumper
1 x CMOS Jumper
1 x 24-pin ATX Mainboard Power Connector
1 x 4-pin 12V CPU Power Connector
Anschlüsse Extern
4 x USB2.0
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Coaxial SPDIF Out
1 x LAN
1 x VGA
1 x IEEE 1394a
6 x 3,5 mm Audio ports (line in; microphone in; line out; center/subwoofer; side speaker out; rear speaker out)
Formfaktor Micro-ATX; 9.6 in X 9.6 in (ca. 24,4 cm x 24,4 cm)
Lieferumfang
Das HP Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
