Products description

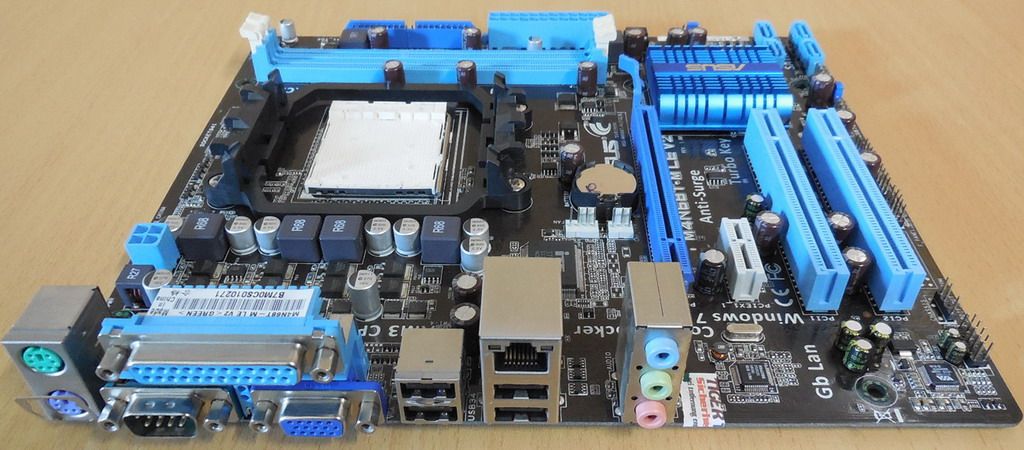

Asus M4N68T-M LE V2 Rev 1.00 Mainboard AMD Sockel AM3 DDR3 PCIe SATA IDE
Technische Daten
CPU
AMD AM3 Phenom™ II / Athlon™ II / Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 Architektur ermöglicht simultane 32-Bit- und 64-Bit-Verarbeitung
Chipset
NVIDIA GeForce 7025 / nForce 630a
Memory
2 x DIMM, Max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Eine Liste freigegebener Speichermodule finden Sie auf der Asus Webseite oder im Benutzerhandbuch
System Bus
Up to 2.0 GT/s
Grafik
Integrierter Grafikprozessor unterstützt RGB mit einer max. Auflösung von 1920 x 1440 @ 75 Hz
Multi-VGA-Ausgaben-Unterstützung: RGB port
Maximaler geteilter Speicher von 256 MB
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage
1 x UltraDMA 133/100/66 for up to 2 PATA devices (navy blue)
4 x SATA 3Gb/s ports (blue)
Support Raid 0, 1, 5, 10, JBOD
LAN
Realtek® 8211CL-VB 10/100/1000 Gigabit LAN Controller
Audio
VIA VT1708S 8-Channel High Definition Audio CODEC (Choose the chassis with HD audio module in front panel to support 8-Channel audio output)
Supports Multi-streaming, Anti-pop Function
USB Ports
10 x USB 2.0 ports (4 at back panel, black, 6 at mid-board)
Übertaktung
Overclocking Protection ASUS C.P.R. (CPU Parameter Recall)
Special Features
Turbo Key
ASUS Quiet Thermal Solution ASUS Q-Fan
ASUS EZ DIY ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS MyLogo 2
ASUS Power Design ASUS EPU-4 Engine
Core Unlocker
ASUS Exclusive Features Anti-Surge; ASUS AI Net 2
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port
4 x USB 2.0 ports
1 x VGA SUB-D port
1 x COM port
1 x Parallel port
3 x Audio jacks
Internal I/O Ports
3 x USB 2.0 connectors supports additional 6 USB 2.0 ports
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x 4-Pin CPU Fan connector
1 x 3-Pin Chassis Fan connector
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x Internal speaker connector
1 x System panel
1 x KBPWR Jumper
1 x USBPW1-4 Jumper
1 x USBPW5-10 Jumper
1 x CLRTC Jumper
BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
Form Factor
uATX Form Factor; 9.6 inch x 8.2 inch (24.4 cm x 20.8 cm)
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
