Products description

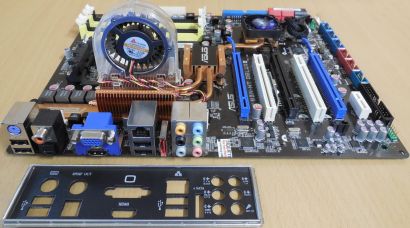

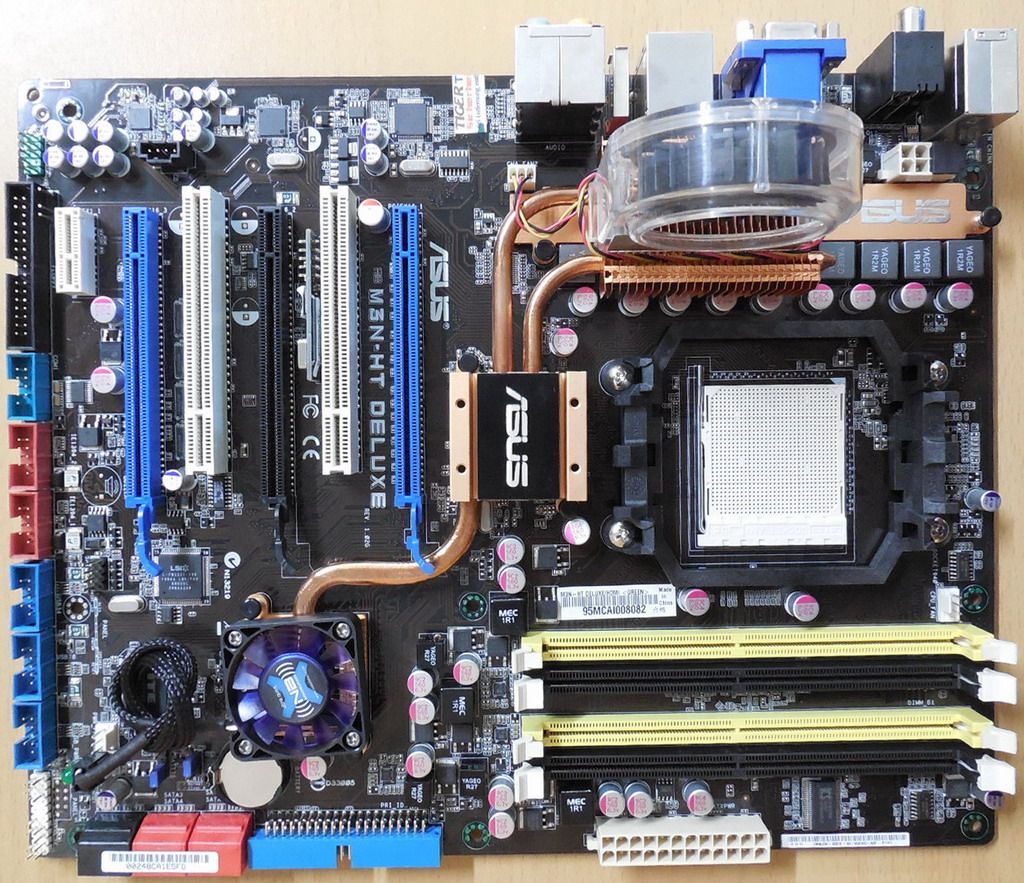

Asus M3N-HT Deluxe HDMI Rev 1.02G Mainboard + Blende AMD Sockel AM2+ nVidia nForce 780a SLI
Technische Daten
Hersteller Asus
Model M3N-HT Deluxe HDMI Rev 1.02G
CPU
AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ / Sempron™ Processors
AMD® Socket AM2 Athlon™ 64 X2 / Athlon™ 64 FX / Athlon™ 64 / Sempron™ Processors
AMD Cool 'n' Quiet™ Technology
Chipsatz
NVIDIA® nForce 780a SLI
System Bus
Up to 5200 MT/s; HyperTransport™ 3.0 interface for AM2+ CPU
2000/1600 MT/s for AM2 CPU
Memory
4 x 240-Pin DIMM sockets, Max. 8 GB, DDR2 1066*/800/667/533 ECC/non-ECC, Un-buffered Memory
Dual Channel memory architecture
*DDR2 1066 is supported by AM2+ CPUs only
**Refer to the Asus Website or the user manual for Memory QVL (Qualify Vendor List)
***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Slots
3 x PCI Express™ x16 slots (support NVIDIA® 3-way SLI™ Tech @ dual x16 mode or triple x8)
1 x PCI Express™ x1 slot
2 x PCI 2.2 slots
VGA
Integrated NVIDIA GeForce® 8 Series GPU
Hybrid SLI™ Support (supports Windows Vista only)
Supports HDMI™ Technology with max. resolution up to 1920 x 1200
Supports DVI with max. resolution up to 1920 × 1200 @ 60 Hz
Supports D-Sub with max. resolution up to 1920 × 1440 @ 75 Hz
HDMI/DVI/RGB Support
Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0
Supports PCIe 2.0/1.0 Architecture
Maximum shared memory of 512MB
Storage
by NVIDIA® Chipset
6 x SATA 3 Gb/s connectors (Use SATA 1-4 connectors for IDE mode)
NVIDIA® MediaShield RAID supports RAID 0, RAID1, RAID 0+1, RAID 5 and JBOD
1 x Ultra DMA 133/100/66/33
by Marvell® 6111 SATA Controller
1 x External SATA 3Gb/s port (SATA-On-The-Go)
High Definition Audio
ADI® AD1988B BH 8-Channel High Definition Audio CODEC
Coaxial S/PDIF out ports at back I/O
Support Jack Detection and Multi-streaming
ASUS AI Audio 2
LAN
NVIDIA Gigabit MAC
Atheros F1 Gigabit PHY featuring AI NET2
IEEE 1394
LSI® FW322 controller supports 2 x 1394a connectors (at mid-board)
USB
Supports up to 10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
ASUS AI Lifestyle Unique Features
ASUS Express Gate Web browser, file downloading and uploading (through USB devices only); Further free features upgradable on ASUS websites; Onboard flash with Express Gate installed
ASUS Quiet Thermal Solution ASUS AI Gear 2; 8+2 Phase Power Design; AI Nap; Fanless Design: Heat-pipe solution & Stack Cool 2; Q-Fan 2; Optional Fan for Water-cooling or Passive-cooling only
ASUS Crystal Sound ASUS Noise Filter; AI AUDIO 2
ASUS EZ DIY ASUS Q-Connector; Q-Shield; ASUS EZ Flash 2; O.C. Profile
ASUS exclusive Overclocking Features
Intelligent overclocking tools AI Overclocking (intelligent CPU frequency tuner); ASUS AI Booster 2 Utility
Precision Tweaker vDIMM: 35-step DRAM voltage control; vCore: Adjustable CPU voltage at 0.0125V increment; vChipset 16-step Chipset voltage control
SFS (Stepless Frequency Selection) FSB tuning from 200MHz to 600MHz at 1MHz increment; Memory tuning from 533MHz up to 1066MHz; PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment
Overclocking Protection ASUS C.P.R.(CPU Parameter Recall)
Other Features
ASUS MyLogo2™
Uses 100% All High-quality Conductive Polymer Capacitors!
Multi-language BIOS
Interne Steckplätze
1 x AAFP Front Panel Audio connector
1 x CD audio in connector
1 x Chassis intrusion connector
1 x 4-pin CPU FAN connector
2 x 3-pin Chassis FAN connector
1 x 3-pin Power FAN connector
6 x SATA connectors
1 x IDE connector
1 x Floppy disk drive connector
3 x USB2.0 connectors for 6 additional USB2.0 ports
2 x IEEE1394a connector
1 x Serial port (COM1) connector
1 x S/PDIF Out connector
1 x Clear CMOS Jumper
1 x System panel connector
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
Externe Anschlüsse
1 x PS/2 keyboard port
1 x Coaxial S/PDIF Out port
1 x Optical S/PDIF Out port
1 x HDMI port
1 x VGA D-Sub port
1 x External SATA port
1 x LAN (RJ-45) port
4 x USB 2.0 ports
8-channel Audio I/O
BIOS
8 Mb Flash ROM; DMI 2.0; PnP; WfM 2.0; SM BIOS 2.5; Award BIOS; ACPI 2.0; ASUS EZ Flash 2
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Formfaktor
ATX Form Factor; 12 inch x 9.6 inch (ca. 30.5cm x 24.4cm)
Besonderheiten
Die Southbridge wird durch einen Noiseblocker ultra quiet Lüfter und die Spannungsregulatoren werden zusätzlich durch den Optional-Lüfter gekühlt.
Lieferumfang
Das Mainboard inkl. Blende, Optional-FAN und Handbuch * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
