Products description

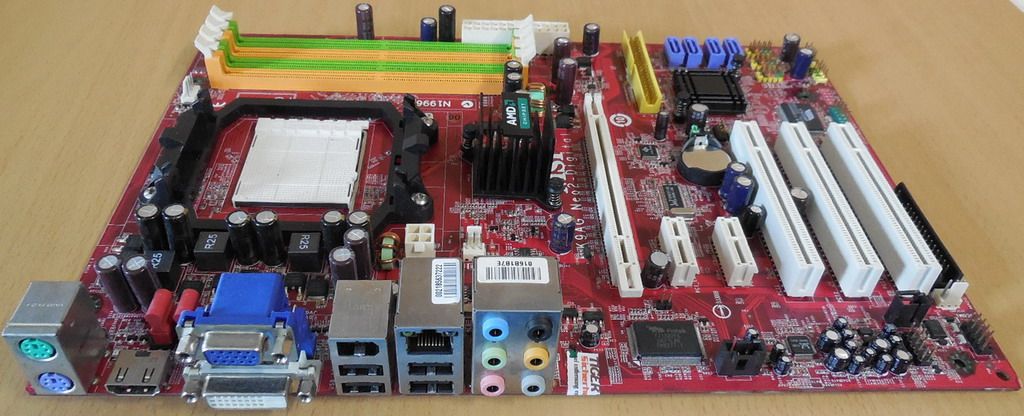

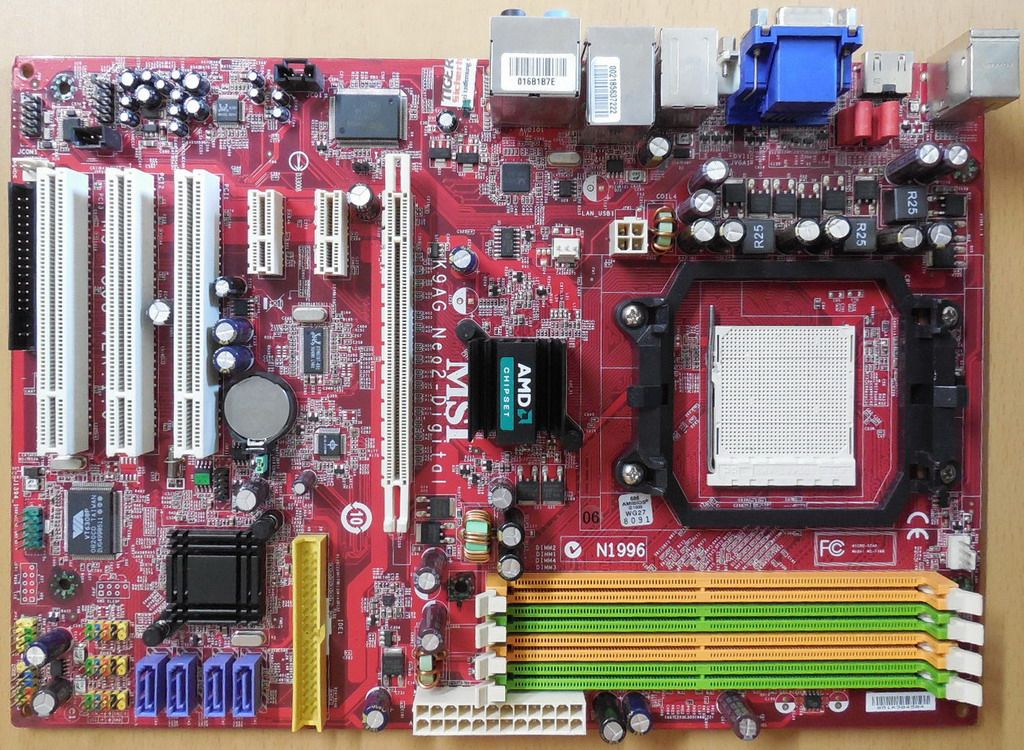

MSI K9AG Neo2-Digital MS-7368 Ver 1.0 Retro Mainboard AMD Sockel AM2 DDR2 PCIe
CPU
AMD® Athlon 64 X2, Athlon 64, and Sempron in the Socket AM2 package
Please refer to CPU Support for compatible CPU; the above description is for reference only
FSB
HyperTransport supporting speed up to 1GHz (2000MT/s)
Chipset
AMD® 690G Northbridge and SB600 Southbridge
Main Memory
Supports dual channel DDR2 533/667/800
4 x DDR2 DIMMs (240pin / 1.8V)
Supports a maximum memory size up to 8GB
Slots
1 x PCI Express x16 slot
2 x PCI Express x1 slots
3 x PCI slots (support 3.3V/ 5V PCI bus Interface)
On-Board IDE
1 x IDE port by AMD® SB600
Supports Ultra DMA 66/100/133 mode
Supports PIO, Bus Master operation mode
Can connect up to two IDE devices
On-Board SATA
4 x SATA II ports by AMD® SB600
Supports storage and data transfers at up to 300 MB/s
SATA II 1~4 support RAID 0, 1 and 0+1 mode by AMD® SB600
Audio
Realtek® ALC888 Chipset integrated
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
LAN
Supports 10/100/1000 Gigabit Ethernet by Realtek 8111B
IEEE1394
VIA® VT6308P Chipset integrated
Transfer rate is up to 400Mbps
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
1 x 4-Pin CPU FAN connector
2 x 3-Pin SYS FAN connectors
1 x Chassis intrusion switch connector
1 x Front panel audio connector
1 x JFP1 Front panel connector
1 x JFP2 Front panel connector
1 x JSP1 connector
1 x Clear CMOS jumper
1 x CD-in connector
1 x SPDIF out connector (for HDMI™ graphics card only)
1 x Serial port connector
1 x IEEE1394 connector support additional 1 port
3 x USB 2.0 connectors support additional 6 ports
1 x Floppy disk drive connector
4 x Serial ATA II connectors
1 x IDE ATA133 connector
2 x Select DVI / HDMI Port Jumper
Back Panel I/O Ports
1 x HDMI™ port
1 x DVI-D port
1 x PS/2 keyboard
1 x PS/2 mouse
1 x IEEE1394 Port
1 x 6 in 1 audio jack
4 x USB 2.0 ports
1 x RJ45 LAN jack
1 x VGA port
Dimension
30.5cm (L) x 21.0cm (W); ATX Form Factor
Mounting
6 mounting holes
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
