Products description

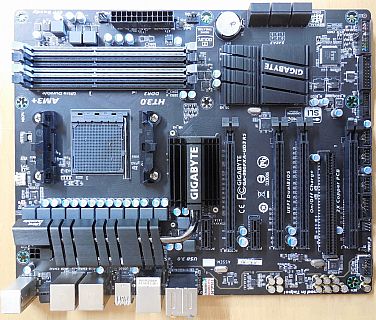

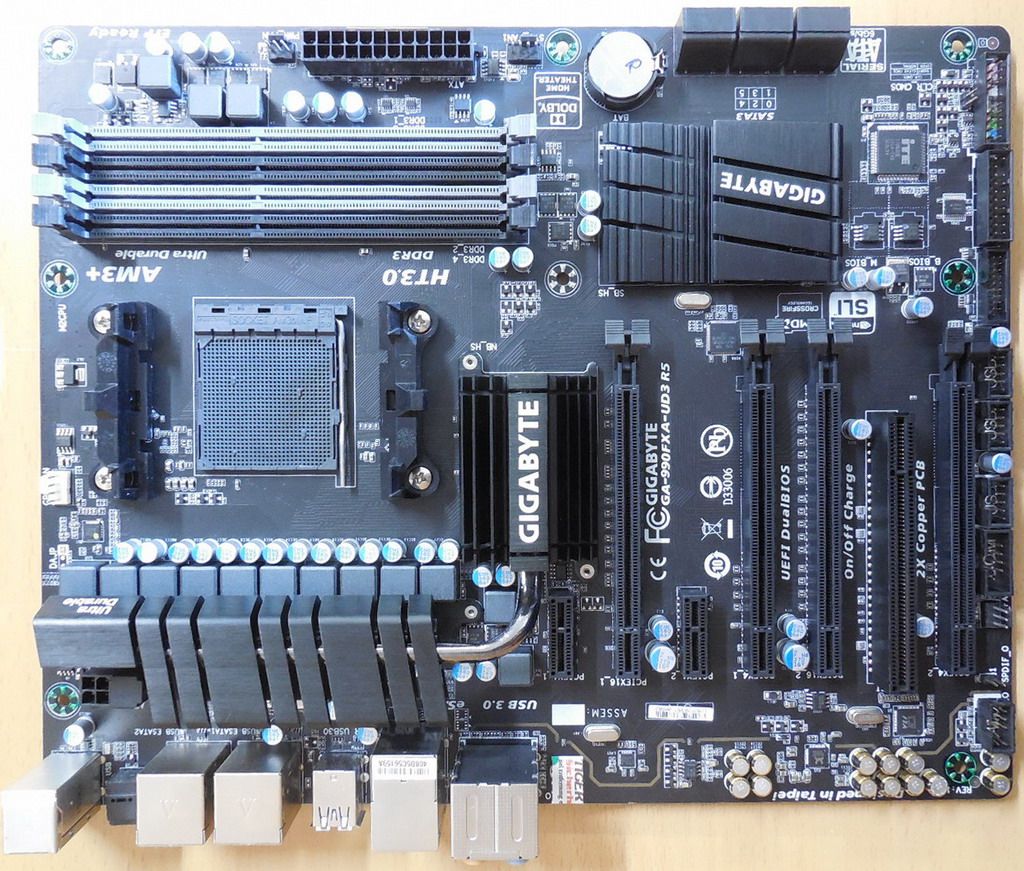

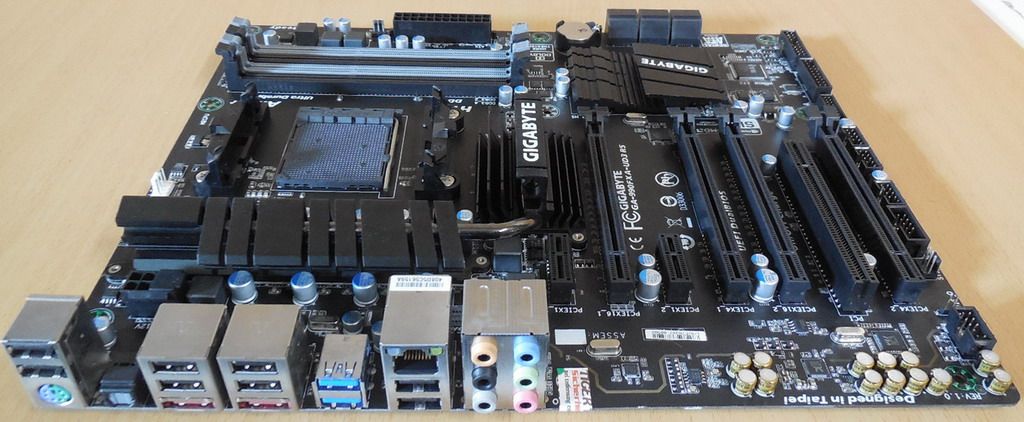

Gigabyte GA-990FXA-UD3 R5 Rev 1.0 Mainboard AMD 990FX Sockel AM3+ DDR3 PCIe USB3.0
Technische Daten
Prozessor
Support for AMD® Phenom™ II / AMD® Athlon™ II AM3 / AMD® AM3+ FX processors
(Please refer to "CPU Support List" for more information.)
Hyper Transport Bus
HyperTransport™ 3.0
5200 MT/s
Chipsatz
AMD® 990FX Northbridge + AMD® SB950 Southbridge
Arbeitsspeicher
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (requires AM3+ CPU)
Dual channel memory architecture
Support for Extreme Memory Profile (XMP) memory modules
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
(Please refer to "Memory Support List" for more information.)
Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ Technologies (PCIEX16_1 and PCIEX16_2)
Support for AMD® Quad-GPU CrossFireX™ and 2-Way AMD® CrossFire™ Technologies (PCIEX16_1 and PCIEX16_2)
Audio
Realtek® ALC1150 High Definition Audio codec
2/4/5.1/7.1-channel
Support for Dolby® Home Theater®; S/PDIF Out
LAN
Realtek® Gigabit Ethernet LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
2 x PCI Express x1 slots (conform to the PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
by Southbridge
6 x SATA 6Gb/s connectors (SATA3 0~5)
Support for SATA RAID 0, RAID 1, RAID 5, RAID 10 and JBOD
by Marvell® 88SE9172 chip
2 x eSATA 6Gb/s connectors on the back panel (Actual transfer rate is dependent on the device being connected.)
Support for RAID 0 and RAID 1
USB
by Chipset
14 x USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)
VIA® VL805 chip:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
T.I. TSB43AB23 IEEE 1394 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x 4-pin CPU fan header
1 x 4-pin system fan header
1 x 3-pin North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x LPT parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header
1 x clearing CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard port or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 3)(Note 4)
1 x HDMI port (Note 4)
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O
ITE IT8718 chip
H/W Überwachung
System voltage detection; CPU/System temperature detection; CPU/System fan speed detection; CPU overheating warning; CPU/System/Power fan fail warning; CPU/System fan speed control (Note 4)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Note 5); Easy Energy Saver; Time Repare; Q-Share
Betriebssystem
Support for Microsoft Windows Vista / XP
Form Factor
Micro ATX Form Factor; 24.3cm x 24.3cm
Hinweise
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) Simultaneous output for DVI-D and HDMI is not supported.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
2 x eSATA 6Gb/s connectors
8 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O
iTE® I/O Controller Chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for ON/OFF Charge
Softwarebeigaben
Norton® Internet Security (OEM version)
Betriebssystem
Support for Microsoft® Windows 8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
