Products description

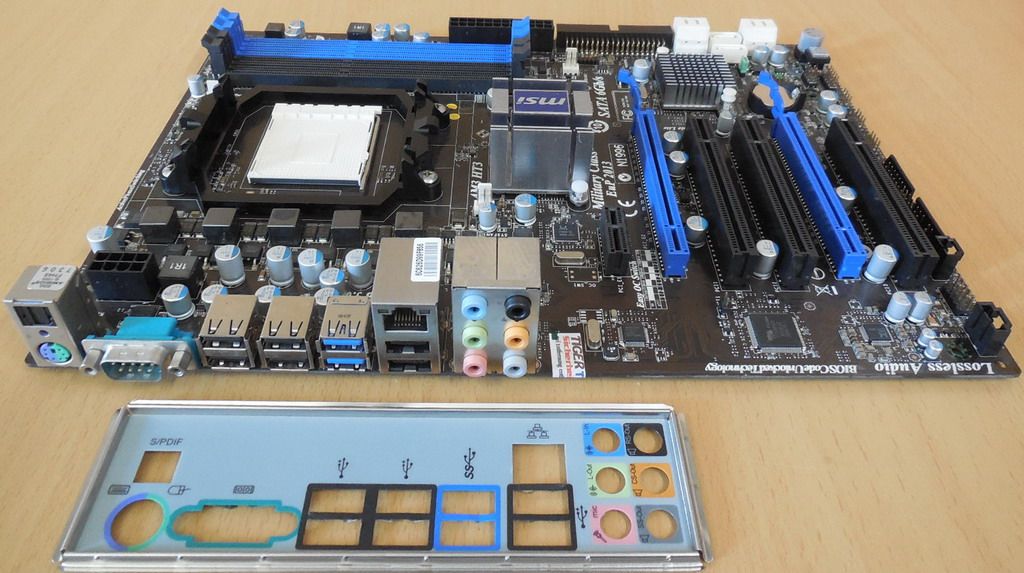

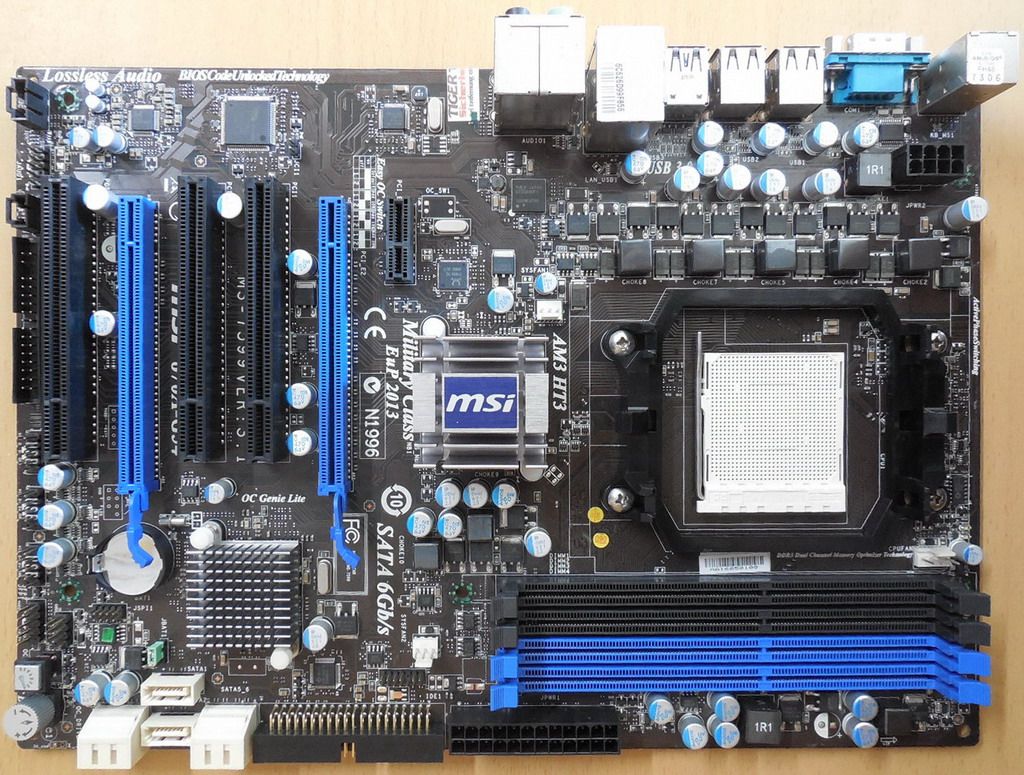

MSI 870A-G54 MS-7599 Ver 3.1 Mainboard +Blende AMD Sockel AM3 DDR3 USB3.0 PCIe SATA
Technische Daten
CPU
64-bit AMD® Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU
Please refer to CPU Support for compatible CPU; the above description is for reference only
Hyper Transport Bus
HyperTransport 3.0 supporting speed up to 5200MT/s
Chipset
AMD® 870 and SB850 Chipset
Main Memory
Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600* (OC) SDRAM, 16GB Max
Slots
1 x PCI Express 2.0 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
1 x PCI Express 2.0 slot with x4 operation (PCI Express Bus SPEC V2.0 compliant)
1 x PCI Express x1 slot
3 x PCI slots, support 3.3V/ 5V PCI bus Interface
On-Board IDE
One IDE port by JMicron® JMB368
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices
On-Board SATA
6 x SATA III (1~6) ports by AMD® SB850
- Supports storage and data transfers at up to 6Gb/s
RAID Function
SATA III 1~6 support RAID 0, 1, 5 or 10 mode by AMD® SB850
Audio
Chipset integrated by Realtek® ALC889
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
Realtek® PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 8-pin 12V CPU power connector
1 x 4-Pin CPU FAN connector
2 x 3-Pin System FAN connectors
1 x Front panel audio connector
1 x JFP1 Front panel connector
1 x JFP2 Front panel 2 connector
1 x Chassis intrusion switch connector
3 x USB 2.0 connectors
6 x Serial ATA III connectors
1 x ATA133 HD connector
1 x Floppy Disk Drive connector
1 x OC Dial Button
1 x OC Dial Knob
1 x Clear CMOS jumper
1 x SPDIF-out connector
1 x CD-In connector
1 x TPM module connector
1 x JSPI1 connector
Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo port
1 x Optical SPDIF-Out port
1 x Serial port
6 x USB 2.0 ports
2 x USB 3.0 ports (blue)
1 x RJ45 LAN jack
6 in 1 audio jack
Dimension
30.5cm (L) x 21.5cm (W); ATX Form Factor
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
