Products description

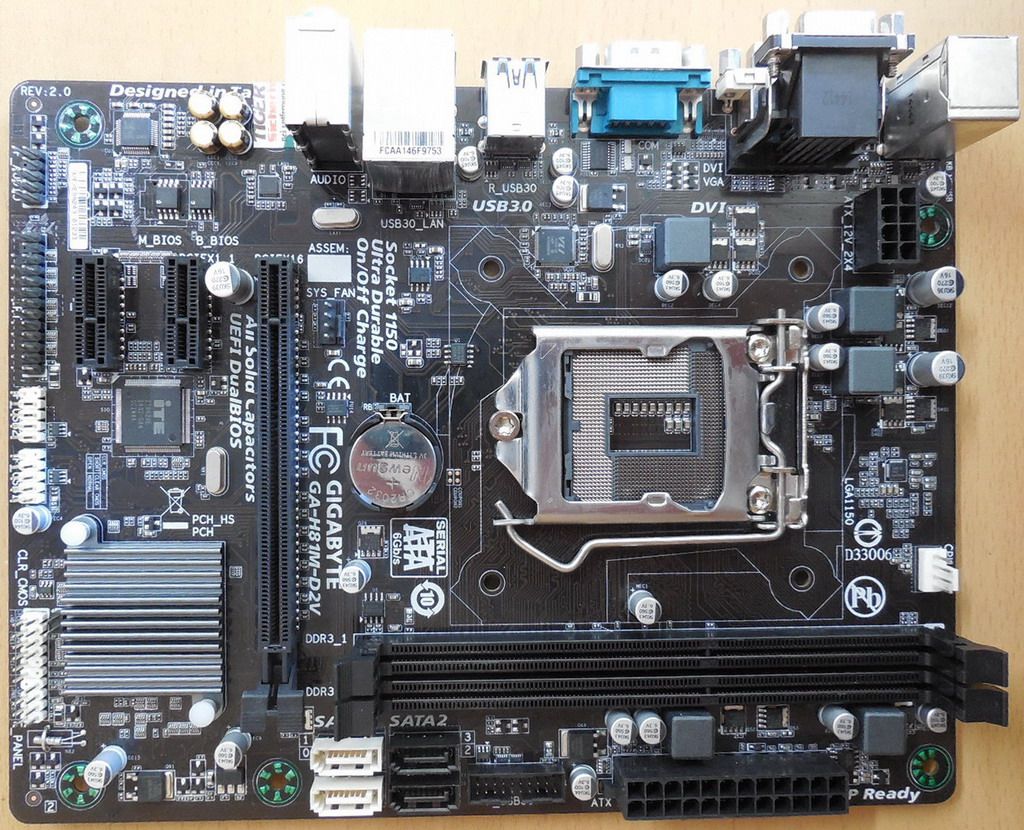

Gigabyte GA-H81M-D2V Rev 2.0 Mainboard + Blende Intel H81 Sockel 1150 USB3.0
Technische Daten
Prozessor
Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipsatz
Intel® H81 Express Chipset
Arbeitsspeicher
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 1600 / 1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
*Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Onboard Grafik
Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1*-channel
*To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 2.0 standard)
2 x PCI Express x1 slots (conform to PCI Express 2.0 standard)
Storage Interface
2 x SATA 6Gb/s connectors (SATA3_0 & SATA3_1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 6Gb/s connectors (SATA2_2 & SATA2_3) supporting up to 2 SATA 3Gb/s devices
USB
2 x USB 3.0/2.0 ports (available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 3.0/2.0 ports by VIA® VL805 chip on the back panel
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x 4-Pin CPU fan header
1 x 4-Pin System fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x Clear CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x serial port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Microphone)
I/O
iTE® I/O Controller Chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control (depends on the cooler you install.)
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for APP Center (may differ by motherboard); @BIOS; EasyTune; EZ Setup; ON/OFF Charge; USB Blocker; Q-Flash; Xpress Install
Betriebssystem
Support for Windows 10/8.1/8/7
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Lieferumfang

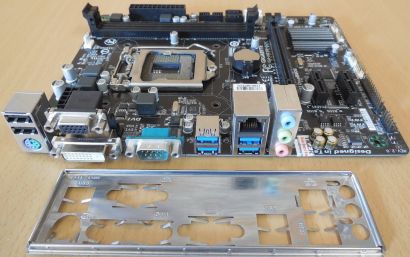

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
