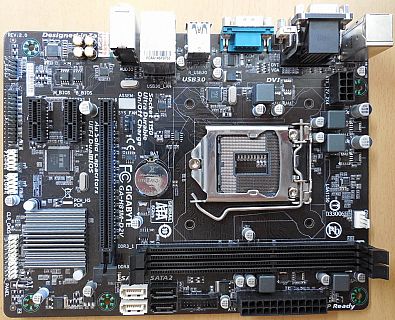

Gigabyte GA-H81M-D2V Rev 2.0 Mainboard +Blende Intel H81 Sockel 1150 USB3* m1117

Gigabyte GA-H81M-D2V Rev 2.0 Mainboard + Blende Intel H81 Sockel 1150 USB3.0

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1150 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipsatz

Intel® H81 Express Chipset

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 1600 / 1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

*Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Onboard Grafik

Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200

1 x DVI-D port, supporting a maximum resolution of 1920x1200

Maximum shared memory of 1GB

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1*-channel

*To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 2.0 standard)

2 x PCI Express x1 slots (conform to PCI Express 2.0 standard)

Storage Interface

2 x SATA 6Gb/s connectors (SATA3_0 & SATA3_1) supporting up to 2 SATA 6Gb/s devices

2 x SATA 6Gb/s connectors (SATA2_2 & SATA2_3) supporting up to 2 SATA 3Gb/s devices

USB

2 x USB 3.0/2.0 ports (available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

4 x USB 3.0/2.0 ports by VIA® VL805 chip on the back panel

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x 4-Pin CPU fan header

1 x 4-Pin System fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x parallel port header

1 x Clear CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x serial port

4 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Microphone)

I/O

iTE® I/O Controller Chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control (depends on the cooler you install.)

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for APP Center (may differ by motherboard); @BIOS; EasyTune; EZ Setup; ON/OFF Charge; USB Blocker; Q-Flash; Xpress Install

Betriebssystem

Support for Windows 10/8.1/8/7

Form Factor

Micro ATX Form Factor; 22.6cm x 17.4cm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
